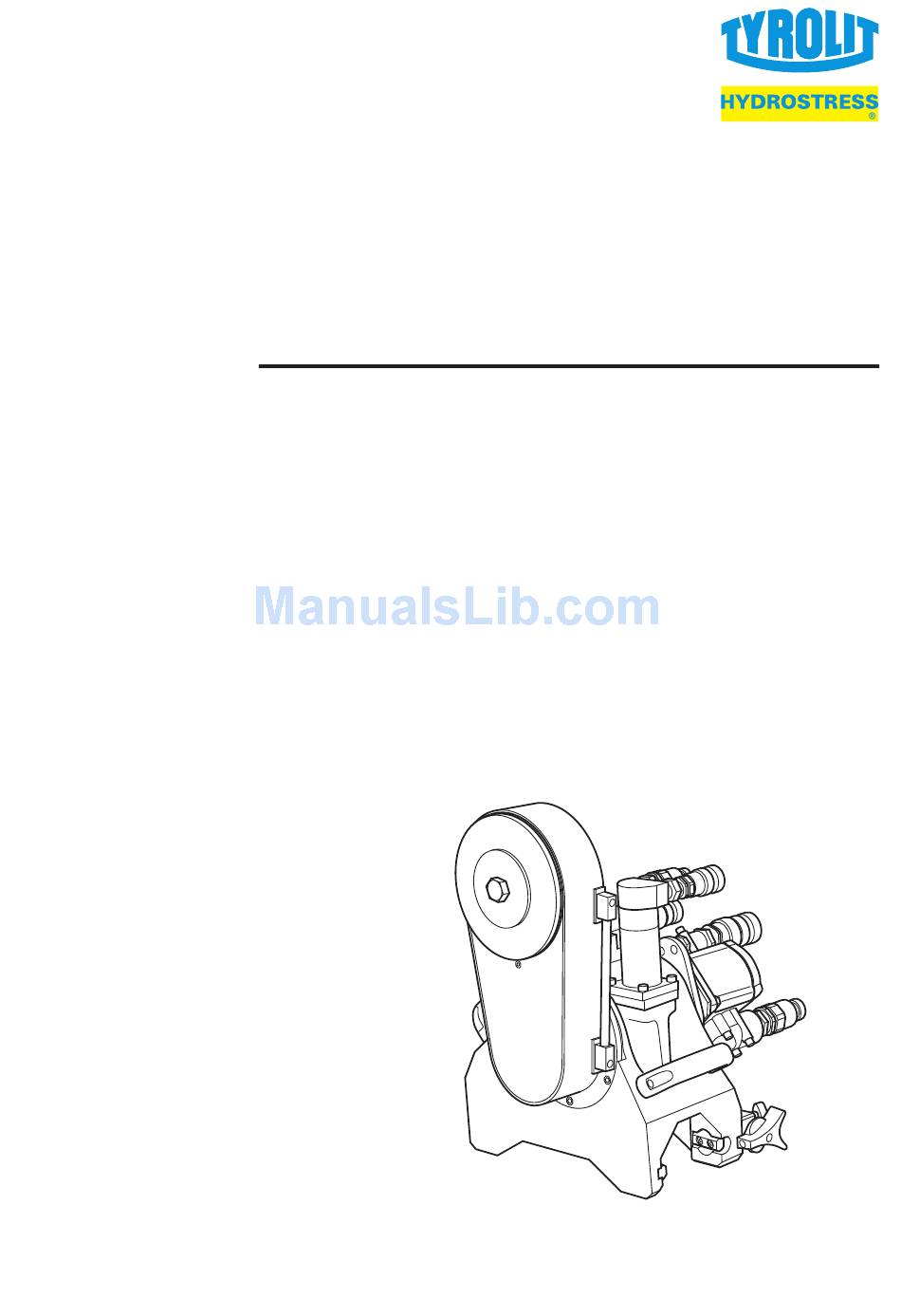

- Page 1 Operating Instructions Wall saw DZ-S2 Index 001 10987273 EN /25.07.2007...
- Page 2 Any repair work must be carried out by trained personnel only. Our aftersales service is available to help ensure that your TYROLIT Hydrostress units remain in perfect working order.
- Page 3 Always use the blade guard when operating the wall saw. DANGER Serious injury or material damage as a result of uncontrolled movements of the wall saw. Never connect or disconnect hoses while the drive unit is running. Wall saw DZ-S2 Page 3...
-
Page 4: Wall Saw System
Made in Switzerland Components 1 Feed motor, swivel Blade drive motor 2 Blade guard holder Saw blade holder 3 Water connection Name plate 4 Feed motor, travel Chassis 5 Lock unit 10 Belt swivel arm Page 4 Wall saw DZ-S2... - Page 5 TYROLIT Hydrostress AG Assembly / disassembly Place the wall saw on the guide rail Wall saw DZ-S2 Page 5...
- Page 6 TYROLIT Hydrostress AG Adjustment of the closure click click click click A: Rotate as far as the stop. B: Rotate back two notch positions. Release the closure Perform the remaining assembly steps in reverse order. Page 6 Wall saw DZ-S2...
-
Page 7: Mount The Drive Motor
DANGER It can cause death or serious injury if the saw blade flies away. Only use original screws and bolts from TYROLIT Hydrostress AG. DANGER Serious injury can be caused by sudden start-up of the saw blade. Switch off the drive unit before working on the saw blade. - Page 8 TYROLIT Hydrostress AG For flush cuts Mount the blade guard Mount the blade guard according to the instruction leaflet. Page 8 Wall saw DZ-S2...
- Page 9 TYROLIT Hydrostress AG Connecting the wall saw to the drive unit The drive unit is isolated from the power supply. Couplings are clean. Hoses are undamaged. Wall saw DZ-S2 Page 9...
-
Page 10: Servicing And Maintenance
Check for wear Service To be performed by TYROLIT Hydros- After 100 / 300 / 500 / 700 hours tress AG or an authorised workshop Lubricate lock unit 1 Grease nipple Page 10 Wall saw DZ-S2... -
Page 11: Technical Data
Blade drive motor Secured by means of quick-release device (hydraulic motor size 2) Feed motor Gerotor Flush cutting Special flange (+15 mm) Normal cutting: Standard blade hub with blade cover Water Water connection on chassis Wall saw DZ-S2 Page 11... - Page 12 1269 1100 l/min 3333 2500 2222 1818 1538 1333 l/min 3750 2813 2500 2045 1731 1500 l/min 4167 3125 2778 2273 1923 1667 l/min 5000 3750 3333 2727 2308 2000 Operation possible Operation not possible Page 12 Wall saw DZ-S2...
-
Page 13: Feed Motor, Travel
Blade cover mounting on blade flange 1 hexagonal bolt Blade flange Ø 165 mm Cutting depth Ø 800 mm 310 mm Ø 900 mm 360 mm Ø 1000 mm 410 mm Ø 1200 mm 510 mm Wall saw DZ-S2 Page 13... - Page 14 Lubricating grease (lock unit) Penetration 265 to 295 NLGI Connectable drive units The wall saw must only be operated with the coordinated drive units from TYROLIT Hydrostress. Drive unit power requirements: Parameter Value Minimum output: 12 kW (max. operating pressure 260 bar) Maximum performance 20 kW (max.
-
Page 15: Ec Declaration Of Conformity
Safety of machinery – Safety distances to prevent upper limbs reaching danger areas EN 349 Safety of machinery – Safety distances to avoid crushing of body parts EN 982 Safety of machinery – Safety requirements for safety systems and their components - hydraulics Wall saw DZ-S2 Page 15...
