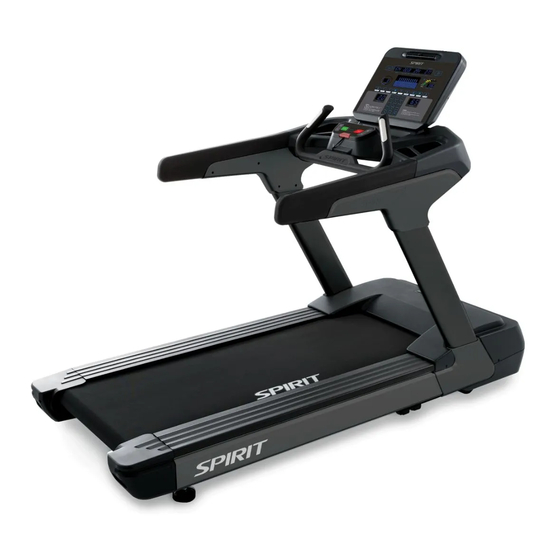

CT900ENT

TREADMILL

OWNER'S MANUAL

Table of Contents

Need help?

Do you have a question about the CT900ENT and is the answer not in the manual?

Questions and answers

Summary of Contents for Spirit CT900ENT

Page 1 CT900ENT TREADMILL OWNER’S MANUAL...
Page 2 Spirit Fitness...
Page 3: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS IMPORTANT ELECTRICAL INSTRUCTIONS IMPORTANT OPERATION INSTRUCTIONS PRODUCT REGISTRATION CT900ENT ASSEMBLY INSTRUCTIONS CONSOLE OPERATION TOUCH SCREEN OPERATION PROGRAMMING THE CONSOLE GENERAL MAINTENANCE MANUFACTURER’S LIMITED WARRANTY Thank you for purchasing our product, please save these instructions. Please do not perform or attempt any customizing, adjustments, repair or maintenance that is not described in this manual.
Page 4 Congratulations on your new treadmill and welcome to the Spirit Fitness family! Thank you for your purchase of this quality treadmill from Spirit Fitness. Your new treadmill was manufactured by one of the leading fitness manufacturers in the world and is backed by one of the most comprehensive warranties available.
Page 5: Important Safety Instructions
IMPORTANT SAFETY affect the accuracy of heart rate readings. The pulse sensors are intended only as exercise aids in INSTRUCTIONS determining heart rate trends in general. • Wear proper shoes. High heels, dress shoes, sandals, or bare feet are not suitable for use on your DANGER —To reduce the risk of electric shock, elliptical.
Page 6: Important Electrical Instructions
If your treadmill is tripping the circuit breaker (even though it is the proper current rating) but the circuit breaker on the treadmill itself does not trip, you will need to replace the facility Spirit Fitness...
Page 7: Grounding Instructions
breaker with a high inrush type. This is not a warranty defect. This is a condition we as a manufacture have no ability to control. This part is available through most electrical supply stores. The electrical outlet used should have a dedicated 20 amp circuit breaker. GROUNDING INSTRUCTIONS This product must be grounded.
Page 8: Important Operation Instructions
Power switch. SERIAL NUMBER: REGISTER YOUR PURCHASE The self-addressed product registration card must be completed in full and returned to Spirit Fitness. You can also go to www.spiritfitness.com/commercialwarrantyregistration.html under the Support tab to register online. Spirit Fitness...
Page 9 CT900ENT PRE-ASSEMBLY UNPACKING TOOLS INCLUDED: 1. Cut the straps and open box. ‰ 8mm Allen Wrench ‰ 2 Phillips Screwdrivers 2. Locate the hardware package. The hardware is separated into four steps. Remove the tools first. Remove the hardware for each step as needed to avoid confusion.
Page 10 CT900ENT STEP ONE HARDWARE FOR STEP 1 PART TYPE DESCRIPTION BOLT M10x1.5x60mm LOCK WASHER 1. Loosen the 8 screws holding the motor cover in place and remove the cover. 2. Uncoil wiring harness and run wires through the RIGHT UPRIGHT (7).
Page 11 CT900ENT STEP TWO HARDWARE FOR STEP 2 PART TYPE DESCRIPTION BOLT M10x1.5x35mm FLAT WASHER 3/8"x 2.5 LOCK WASHER 1. Install MAIN PANEL (3) onto the uprights using 6 BOLTS (63), 6 LOCK WASHERS (79) and 6 FLAT WASHERS (74). 2. Run the wiring harness through the MAIN PANEL (3) as shown in the illustration.
Page 12 CT900ENT STEP THREE HARDWARE FOR STEP 3 PART TYPE DESCRIPTION M5 × P0.8 × 12L SCREW SCREW M5 × P0.8 × 20L 1. Wires should be away from the console mounting bracket. 2. Install the CONSOLE (54) using 4 SCREWS (134).
Page 13 CT900ENT STEP FOUR HARDWARE FOR STEP 4 PART TYPE DESCRIPTION SCREW M5x.8x12mm SCREW M5x.8x25mm FLAT WASHER 5.5x19x1.5 SCREW 3.5x12mm 1. Attach LEFT OUTER HANDRAIL COVER (48) to MAIN PANEL using 2 SCREWS (83) and 2 FLAT WASHERS (75). www.spiritfitness.com...
Page 14 CT900ENT STEP FOUR 2. Attach LEFT INNER HANDRAIL COVER (47) to MAIN PANEL using 5 SCREWS (83). 3. Attach LEFT LOWER UPRIGHT COVER (40) to MAIN FRAME (1) using 2 SCREWS (83), 2 FLAT WASHERS (75), and 1 long SCREW (69).
Page 15: Console Operation
CT900ENT CONSOLE OPERATION www.spiritfitness.com...
Page 16 Integrated adjustable fan for workout comfort 15.6” touchscreen display with multiple viewing modes Tablet friendly reading rack holder Accessory trays for secure placement of water bottles, keys, smartphones, etc. Ergonomically friendly hand grips for pulse tracking Spirit Fitness...
Page 17 STARTING OPERATION Plug in the power cord located at the front base of the unit. When the power is turned on, the screen will show the initial image and then enter the Home screen. Home Screen: Begin operation by touching the icons. Quick operating buttons are conveniently located for basic treadmill functions.
Page 18 The two most commonly used menus for setting up the exercise machine are described below; the TV Setup and Maintenance menus. For information on other sections of the Maintenance suite refer to the technical service manual or call Spirit service. Spirit Fitness...
Page 19 TV SETUP 1. Begin by selecting either TV or HDMI as the tuner source. 2. Press OSD Menu. The first highlighted item on the menu is Air/Cable and then Cable or Air afterward. Press the OSD Enter to change the selection between Cable and Air Signal source, usually Cable).
Page 20 Machine Setup allows you to select whether the Csafe port is • used for Csafe or CAB TV Tuner. This menu also allows you to set the screen brightness. FTP Settings is the Spirit FTP site address where Error logs and • remote troubleshooting can be managed. Spirit Fitness...
Page 21 INTERNET MANAGER 1. Remove a link by pressing the icon of the site you want to remove for two seconds. A pop-up window will ask you to confirm the removal. 2. To add a website press the dotted outline box. A pop-up window will ask you to enter the web address and upload a picture for the final button if you wish.
Page 22 Turn Wifi on and press scan for available Wifi connections. Press desired connection and follow the on-screen directions. ETHERNET SETUP Press Ethernet Configuration to set Select DHCP to search for connection up a new connection. or Static IP to enter manually. Spirit Fitness...
Page 23 BLUETOOTH PAIRING PROCEDURE 1. Press the Blue Tooth (BT) icon on the bottom left of the screen. 2. The BT pop-up screen will appear. Turn on Phone/tablet BT and then press Pair Mode on ENT Menu. 3. The menu with show Entering Pairing mode and the phone will show A2DP as an available device.
Page 24: Touch Screen Operation
When you press the Language button on Home screen, it enters the menu with all language options. There are 12 languages to choose from. Touch the desired language and the system will return to the Home screen which will now be in the chosen language. Spirit Fitness...
Page 25 When the TV button on the Home screen is pressed, it directly enters TV interface. Now you can enjoy TV programs. If you want to enjoy TV while exercising, press Start button at front of the treadmill to initiate Quick Start or press Programs to select a workout. You can change the TV channels by pressing the channel up/ down buttons on the right side of the screen.
Page 26: Exercise Programs
There are 12 programs to choose from. Press the desired program button and follow the on-screen directions. For Manual Program as an example, just touch Manual button on the screen to enter the programming for Manual. Spirit Fitness...
Page 27: Quick Start
FUNCTIONS OF THIS TREADMILL The touchscreen is used for operating all functions of the treadmill. You can directly touch any button on the screen or through quick buttons on the forward pod to control functions. On the forward pod, there are Fast/Slow buttons to control the speed, Start button to begin the workout, Stop button to pause/ stop running, Incline Up/Down buttons to control the incline of the treadmill.
Page 28 • Press and hold the adjustment Incline +/– buttons to achieve desired level of incline. • The display will indicate incline numbers as percent of grade (the same as grade of a road) as adjustments are made. • Spirit Fitness...
Page 29 DISPLAY OPTIONS SIMPLE The default display at the start of a program is a Simple display. The profile window shows the work level graphically. All your workout values are displayed on the bottom of the screen. Some of the data windows have a + sign at the top indication more data available.
Page 30: Stop Button
When using the Stop button to end the program, it enters the summary screen. On the summary screen, all accumulated values concerning the workout are displayed. You can touch the Home button at left top or press Stop button to return to the home screen. Spirit Fitness...
Page 31: Heart Rate Feature
Pulse values are displayed anytime the computer is receiving a Grip pulse signal. You may use the Grip pulse feature while in Heart Rate Control. The CT900ENT will also pick up wireless heart rate transmitters that are Polar compatible. TO TURN TREADMILL OFF: The screen will automatically turn off (go to sleep) after 30 minutes of inactivity.
Page 32: Programming The Console
This is because every person is different and burns calories at a different rate. Some good news is that you will continue to burn calories at an accelerated rate for at least an hour after you have finished exercising! Spirit Fitness...
Page 33 ENTERING A PROGRAM & CHANGING SETTINGS The Spirit Fitness CT900ENT offers a variety of exercise program options to choose from: Manual, Hill, Fat Burn, Cardio, Strength, 5k Run, Interval, HR, Custom, Fitness Test (Air Force, Army, Coast Guard, Gerkin, PEB, Marine Corps, Navy, WFI), Calories, and 10k Run. To select and start a preset program: 1.
Page 34 10 mph, then the first segment will be 2 mph. You will notice that segment 12 shows 100 which means the speed will be set to 100% of 10 mph or simply 10 mph. P1= HILL; P2= FAT BURN; P3= CARDIO; P4= INTERVAL Spirit Fitness...
Page 35: Fat Burn
MANUAL Both Speed and Incline are controlled by the user. Increase or decrease levels at any time during your workout. HILL Speed: This program follows a triangle or pyramid type of gradual progression from approximately 10% of maximum effort (the level that you choose before starting this program) up to a maximum effort which lasts for 10% of the total workout time, then a gradual regression of Speed back to approximately 10% of maximum effort...
Page 36 Both speed and incline are controlled by the user. Increase or decrease levels at any time during your workout. The track display will set the distance of 1 lap to 5 kilometers (metric) or 3.1 miles (standard measurement). Spirit Fitness...
Page 37 INTERVAL Speed: This program takes you through high levels of intensity followed by recovery periods of low intensity. This program utilizes and develops your “Fast Twitch” muscle fibers which are used when performing tasks that are intense and short in duration. These deplete your oxygen level and spike your heart rate, followed by periods of recovery and heart rate drop to replenish oxygen.
Page 38: Fitness Test
2. After all required data is entered you may now press Start to begin the test. AIR FORCE A timed 1.5 mile run. You control the speed manually. Maximum time allowed to pass the test: For more detailed information, visit: http://bit.ly/SF-AirForce Spirit Fitness...
Page 39 ARMY A timed 2 mile run. You control the speed manually. Maximum time allowed to pass the test. For more detailed information, visit: http://bit.ly/SF-Army NAVY A timed 1.5 mile run. You control the speed manually. Maximum time allowed to pass the test: For more detailed information, visit: http://bit.ly/SF-Navy www.spiritfitness.com...
Page 40 MARINES A timed 3 mile run. You control the speed manually. Maximum time allowed to pass the test: For more detailed information, visit: http://bit.ly/SF-Marines Spirit Fitness...
Page 41 GERKIN The Gerkin protocol, also known as the fireman’s protocol, is a sub-max VO2 (volume of oxygen) test. The test will increase speed and elevation alternately until you reach 85% of your Max heart rate. The time it takes for you to reach 85% determines the test score (VO2max) as shown in the chart below. www.spiritfitness.com...
Page 42 5. Target heart rate and Actual heart rate are shown in the Message window. After the Test: Cool down for about one to three minutes. • Take note of your score because the console will automatically return to the start-up mode after a few minutes. • Spirit Fitness...
Page 43 What Your Score Means: VO2MAX CHART FOR MALES AND VERY FIT FEMALES VO2MAX CHART FOR FEMALES AND DECONDITIONED MALES www.spiritfitness.com...
Page 44 Both speed and Incline are controlled by the user. Increase or decrease levels at any time during your workout. The track Display will set the distance of 1 Lap to 10 kilometers (metric) or 6.2 miles (standard measurement). Spirit Fitness...
Page 45: Heart Rate Program
HEART RATE PROGRAM Heart Rate Control (HRC) uses your treadmill’s incline system to control your heart rate via information from pulse grips or wireless chest strap. Increases and decreases in elevation affect heart rate much more efficiently than changes in speed alone.
Page 46: Safety Tether Cord
Be familiar with its function and limitations. The treadmill will stop, depending on speed, with a one to two step coast anytime the magnet is pulled off the console. Use the Stop/Pause button in normal operation. Spirit Fitness...
Page 47: Belt Adjustments
BELT/DECK Your treadmill uses a very highly efficient, low-friction, hard waxed deck. Performance is maximized when the deck is kept as clean as possible. Use a soft, damp cloth, or paper towel, wipe the edge of the belt and the area between the belt edge and the frame. Also reach as far as practical directly under the belt edge.
Page 48 (located under the motor cover) that connects the motor to the front roller. If drive belt is loose it feels similar to the walking belt being loose. Tightening the motor belt should be done by a trained service person. Spirit Fitness...
Page 49 TREADBELT TRACKING ADJUSTMENT The treadmill is designed so that the treadbelt remains reasonably centered while in use. It is normal for some belts to drift near one side while in use, depending on a user’s gait and if they favor one leg. But if during use the belt continues to move toward one side, adjustments are necessary.
Page 50 16-gauge minimum, low voltage. Contact an electrician or your Spirit Fitness dealer. A minimum of 110-volt AC current is required. Treadbelt stops quickly/suddenly when tether High belt/deck friction.
Page 51: General Maintenance
GENERAL MAINTENANCE Unplug treadmill before performing any maintenance. www.spiritfitness.com...
Page 52: Manufacturer's Limited Warranty
EFFECTIVE JANUARY 1, 2017 Spirit Fitness warrants all its treadmill parts for a period of time listed below from the date of sale, as determined by sale receipt, or in the absence of a sales receipt eighteen (18) months from the original factory shipping date.
Page 53 5. Products that have been sold, transferred, bartered or given to a third party. 6. Products that do not have a warranty registration card on file at Spirit Fitness. Spirit Fitness reserves the right to request proof of purchase if no warranty record exists for the product.
Page 54 Jonesboro, AR 72402-2037 Product features or specifications as described or illustrated are subject to change without notice. All warranties are made by Spirit Manufacturing, Inc. This warranty applies only in the 48 contiguous United States. NOTE: This does not apply to Alaska or Hawaii.
Page 55 NOTES www.spiritfitness.com...
