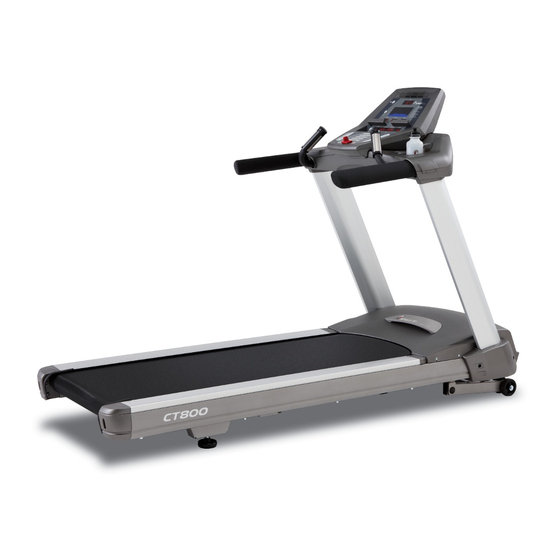

CT800 Treadmill

OWNER'S MANUAL

Table of Contents

Need help?

Do you have a question about the CT800 and is the answer not in the manual?

Questions and answers

Summary of Contents for Spirit CT800

Page 1 CT800 Treadmill OWNER’S MANUAL...
Page 3: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS IMPORTANT ELECTRICAL INSTRUCTIONS IMPORTANT OPERATION INSTRUCTIONS PRODUCT REGISTRATION CT800 ASSEMBLY INSTRUCTIONS CONSOLE OPERATION PROGRAMMABLE FEATURES USING HEART RATE TRANSMITTER GENERAL MAINTENANCE MANUFACTURER’S LIMITED WARRANTY Thank you for purchasing our product, please save these instructions. Please do not perform or attempt any...
Page 4 Through your dealer, Spirit Fitness will do all we can to make your ownership experience as pleasant as possible for many years to come.
Page 5: Important Safety Instructions
• Keep the cord away from heated surfaces. Important Safety Instructions • Never operate the appliance with the air openings WARNING blocked. Keep the air openings free of lint, hair, and the like. When using an electrical appliance, basic precautions should •...
Page 6: Important Electrical Instructions
Grounding Instructions Important Electrical Instructions WARNING This product must be grounded. If the treadmill should malfunction or breakdown, grounding provides a path of least NEVER use a ground fault circuit interrupt (GFCI) wall outlet with resistance for electric current, reducing the risk of electric shock. this treadmill.
Page 7: Important Operation Instructions
Please record the serial number of this fitness product in the space provided below. Serial Number: Register Y our Purchase The self-addressed product registration card must be completed in full and returned to Spirit Fitness. You can also go to http://www.spiritfitness.com/commercialwarrantyregistration.html under the Support tab to register online.
Page 8 CT800 PRE ASSEMBLY UNPACKING TOOLS INCLUDED: Cut the straps, then along the dotted line on the bottom of the box; lift ‰ 3/8”Allen Wrench the box over the unit and unpack. ‰ 10mm Allen Wrench Locate the hardware package. The hardware is separated into four ‰...
Page 9 CONSOLE CONSOLE FAN READING RACK HEART RATE GRIPS DRINK BOTTLE HOLDER HANDLEBARS SAFETY KEY CONSOLE MAST SIDE RAILS MOTOR COVER RUNNING BELT/DECK TREAD-BELT TRACKING...
Page 10 CT800 STEP ONE HARDWARE FOR STEP 1 PART TYPE DESCRIPTION SPLIT WASHER 3/8” FLAT WASHER 3/8” TAPPING SCREW M5X12MM BOLT 3/8”X3-3/4” 1. Gather HARDWARE FOR STEP 1. 2. The right side CONSOLE MAST TUBE (19) has COMPUTER CABLE A (87) pre-installed.
Page 11 CT800 STEP TWO HARDWARE FOR STEP 2 PART TYPE DESCRIPTION SCREW M5X12 SCREW M5X10 SCREW M5X30 STAR WASHER 1. Gather HARDWARE FOR STEP 2. 2. Connect COMPUTER CABLES G (86) & C (120), HAND PULSE CABLES D (122) & F (88), on the right and B (28) &...
Page 12 CT800 STEP THREE HARDWARE FOR STEP 3 PART TYPE DESCRIPTION SPLIT WASHER 3/8” FLAT WASHER 3/8” BOLT 3/8”X3/4” BOLT M8X12 1. Gather HARDWARE FOR STEP 3. 2. Attach the 2 INTERFACE MOUNTS (3 LEFT & 4 RIGHT) to the console assembly frame with six bolts (108).
Page 13: Console Operation
CT800 CONSOLE OPERATION Fan to keep Heart Rate you cool % Profile Convenient water bottle holder and cargo compartment for keys, Contact Heart 20-Character Large Blue-LED phone, or MP3 player Rate Grips Message Center Matrix Window...
Page 14 Power port at the back of the console. The Communication port (COMM) can be used to interact with fitness software applications. See your Spirit Fitness dealer for more information on how your members can race against a computer controlled figure or real life exercisers.
Page 15: Quick Start
Quick Start • Press and release any key to wake display up if not already on. • Press and release the Start key to begin belt movement at 0.5 mph, then adjust to the desired speed using the Up/Down keys. You may also use the rapid speed keys 2 through6 to set to a spe- cific speed directly.
Page 16 INCLINE • Incline may be adjusted anytime after the belt starts moving. • Press and hold the adjust ^ / v keys to achieve desired level of effort. You may also choose a more rapid increase / decrease by selecting a quick key, 2 through 6, on left hand side of console (incline). •...
Page 17: Heart Rate Feature
You must use both left and right stainless steel sensors to pick up your pulse. Pulse values are displayed anytime the computer is receiving a Grip Pulse signal. You may use the Grip Pulse feature while in Heart Rate Control. The CT800 will also pick up wireless heart rate transmitters that are Polar compatible, including coded transmissions.
Page 18: Programmable Features
Programmable Features T o Select and Start A Preset Program The Spirit Fitness CT800 offers five preset programs, a Custom User defined program, two heart rate control programs, a Gerkin protocol based Fitness Test and one Manual program. Select a program then press the Enter key to begin customizing the program with your personal data, or just press the Start key to begin the program with the default settings.
Page 19 affects the Kcal readout accuracy. Use the Up/Down keys to adjust, and then press Enter. The Speed window will now be blinking, showing the preset top speed of the selected program. Use the Up/Down keys to adjust, and then press Enter. Each program has various speed changes throughout; this allows you to limit the highest speed the program will attain during your workout.
Page 20: Custom Program
Custom Program Select the Custom program then press Enter. Note that the dot matrix display portion will light a single row of dots at the bottom (Unless there is a previously saved program). The clock (Time) window will be flashing. Use the up and down adjustment keys to set the program for the desired time.
Page 21 Fitness T est When the Fit-Test key is pressed the DM displays the 5 different tests available: Army (PFT), Navy (PRT), Air Force (PRT), Marines (PFT), and Gerkin. To select your desired fitness test use the arrow key and press enter. Fitness T est Operation The Message Window will ask you to enter your Weight.
Page 22: Air Force
Army Air Force A timed 2 mile run. You control the speed A timed 1.5 mile run. You control the speed manually. Maximum time allowed to pass the test: manually. Maximum time allowed to pass the test: Male Female Male Female 17-21 16:36...
Page 23 3:00 5.0mph 43.4 3:15 5.0mph 44.1 3:30 5.0mph 45.15 3:45 5.0mph 46.2 Gerkin T est 4:00 5.0mph 46.5 4:15 5.5mph 48.6 The Gerkin protocol, also known as the fireman’s protocol, and is a submax Vo2 (volume of oxygen) 4:30 5.5mph test.
Page 24 Before The T est Make sure you are in good health; check with your physician before performing any exercise if you are over the age of 35 or persons ƒ with pre-existing health conditions. Make sure you have warmed up and stretched before taking the test. ƒ...
Page 25 below average 37-41 35-39 31-34 29-31 26-29 22-25 poor 30-36 30-34 26-30 25-28 22-25 20-21 very poor <30 <30 <26 <25 <22 <20 What Y our Score Means VO2max Chart for males and very fit females VO2max Chart for females and de-conditioned males 18-25 26-35 36-45...
Page 26: Heart Rate Programs
Heart Rate Programs The old motto, “no pain, no gain”, is a myth that has been overpowered by the benefits of exercising comfortably. A great deal of this success has been promoted by the use of heart rate monitors. With the proper use of a heart rate monitor, many people find that their usual choice of exercise intensity was either too high or too low and exercise is much more enjoyable by maintaining their heart rate in the desired benefit range.
Page 27 Consult your physician before participating in any exercise program. With all Spirit Fitness Heart Rate programs you may use the heart rate monitor feature without using the Heart Rate program. This function can be used during manual mode or during any of the nine...
Page 28: Rate Of Perceived Exertion
Rate of Perceived Exertion Heart rate is important but listening to your body also has a lot of advantages. There are more variables involved in how hard you should workout than just heart rate. Your stress level, physical health, emotional health, temperature, humidity, the time of day, the last time you ate and what you ate, all contribute to the intensity at which you should workout.
Page 29 Wearing The Chest Strap Attach the transmitter to the elastic strap using the interlocking key. Adjust the strap as tightly as possible as long as the strap is not too tight to remain comfortable. Position the transmitter with the logo centered in the middle of your torso facing away from your chest (some people must position the transmitter slightly left of center).
Page 30 Some people have problems with the transmitter picking up a signal from their skin. If you have problems try wearing the transmitter upside down. Normally the transmitter will be oriented so the Spirit Fitness logo is right side up. The antenna that picks up your heart rate is very sensitive. If there is an outside noise source, turning the whole machine 90 degrees may de-tune the interference.
Page 31: Heart Rate Control
Heart Rate Control How the Heart Rate Control Programs Work: Heart Rate Control (HRC) uses your treadmill’s incline system to control your heart rate. Increases and decreases in elevation affect heart rate much more efficiently than changes in speed alone. The HRC program automatically changes elevation gradually to achieve the programmed target heart rate.
Page 32 Semi- Task How To Daily Weekly Monthly Annually Annually Damp cloth w/ Wipe Down Unit water Clean Under Belt Towel or vacuum Check Belt Tension/Tracking Feel/Visual Clean Under Motor Cover Vacuum carefully Check Hardware Wrench Inspect for Deck Wear Visual Inspect Drive Belt Visual Belt/Deck...
Page 33: Belt Adjustments
Belt Adjustments Tread-belt Tension Adjustment - Belt tension is not critical for most users. It is very important though for joggers and runners in order to provide a smooth, steady running surface. Adjustment must be made from the rear roller with the 8mm Allen wrench provided in the parts package.
Page 34 Proper belt tracking is an owner responsibility common with all treadmills. ATTENTION Damage to the running belt resulting from improper tracking / tension adjustments is not covered under the Spirit Fitness warranty.
Page 35 Calibration Procedure Remove the safety key Press and hold down the Start and Fast + buttons and replace the safety key. Continue to hold the Start and Fast key until the window displays “Factory settings”, then press the Enter key. You will now be able to set the display to show Metric or English settings (Miles vs.
Page 36 Engineering Mode Menu The console has built in maintenance/diagnostic software. The software will allow you to change the console settings from English to Metric and turn off the beeping of the speaker when a key is pressed for example. To enter the Engineering Mode Menu press and hold down the Start, Stop and Enter keys, then insert the safety key.
Page 37 Plug is disconnected. Make sure plug is firmly pushed into 115 VAC wall outlet. Breaker panel circuit breaker may be tripped. Treadmill defect. Contact your Spirit Fitness dealer. Tread-belt does not stay centered The user may be walking while favoring or putting more weight on either the left or right foot.
Page 38 16 gauge minimum. Low voltage. Contact an electrician or your Spirit Fitness dealer. A minimum of 110 volt AC current is required. Tread-belt stops quickly/suddenly when High belt/deck friction.
Page 39: General Maintenance
GENERAL MAINTENANCE Wipe down all areas in the sweat path with a damp cloth after each workout. If a squeak, thump, clicking or rough feeling develops the main cause is most likely one of two reasons: The hardware was not sufficiently tightened during assembly. All bolts that were installed during assembly need to be tightened as much as possible.
Page 40: Manufacturer's Limited Warranty
T readmill Warranty - Effective December 23, 2015 Spirit Fitness warrants all its Treadmill parts for a period of time listed below from the date of retail sale, as determined by sale receipt, or in the absence of a sales receipt eighteen (18) months from the original factory shipping date. Spirit Fitness’ responsibilities include providing new or remanufactured parts, at Spirit Fitness’...
Page 41 Products that have been: sold, transferred, bartered, or given to a third party. Products that do not have a warranty registration card on file at Spirit Fitness. Spirit Fitness reserves the right to request proof of purchase if no warranty record exists for the product.
Page 42 NOTES...
Page 43 NOTES...
