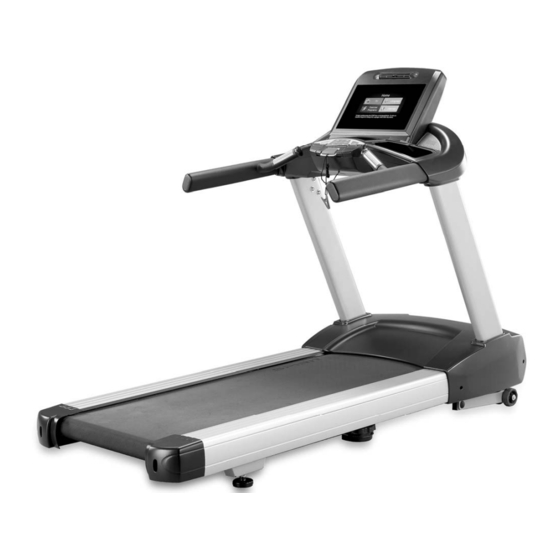

CT850 ENT TREADMILL
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CT850 ENT and is the answer not in the manual?

Questions and answers

Summary of Contents for Spirit CT850 ENT

  • Page 1 CT850 ENT TREADMILL OWNER’S MANUAL...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS IMPORTANT ELECTRICAL INSTRUCTIONS PRODUCT REGISTRATION IMPORTANT OPERATION INSTRUCTIONS CT850 ENT ASSEMBLY INSTRUCTIONS CONSOLE OPERATION PROGRAMMABLE FEATURES USING HEART RATE TRANSMITTER GENERAL MAINTENANCE MANUFACTURER’S LIMITED WARRANTY Thank you for purchasing our product, please save these instructions. Please do not perform or attempt any...
  • Page 4 Through your dealer, Spirit Fitness will do all we can to make your ownership experience as pleasant as possible for many years to come.
  • Page 5: Important Safety Instructions

    • Keep the cord away from heated surfaces. Important Safety Instructions • Never operate the appliance with the air openings WARNING blocked. Keep the air openings free of lint, hair, and the like. When using an electrical appliance, basic precautions should •...
  • Page 6: Grounding Instructions

    NEVER use a ground fault circuit interrupt (GFCI) wall outlet with Grounding Instructions this treadmill. As with any appliance with a large motor, the GFCI This product must be grounded. If the treadmill should will trip often. Route the power cord away from any moving part malfunction or breakdown, grounding provides a path of least of the treadmill including the elevation mechanism and transport resistance for electric current, reducing the risk of electric shock.
  • Page 7: Important Operation Instructions

    Please record the serial number of this fitness product in the space provided below. Serial Number: Register Y our Purchase The self-addressed product registration card must be completed in full and returned to Spirit Fitness. You can also go to http://www.spiritfitness.com/commercialwarrantyregistration.html under the Support tab to register online.
  • Page 8 CT850 ENT PRE ASSEMBLY UNPACKING TOOLS INCLUDED: 1. Cut the straps, then along the dotted line on the bottom of the box; lift the box over ‰ 3/8”Allen Wrench the unit and unpack. ‰ 10mm Allen Wrench 2. Locate the hardware package. The hardware is separated into four steps. Remove ‰...
  • Page 9 CONSOLE FAN CONSOLE READING RACK HEART RATE GRIPS DRINK BOTTLE HOLDER HANDLEBARS SAFETY KEY CONSOLE MAST MOTOR COVER SIDE RAILS RUNNING BELT/DECK TREAD-BELT TRACKING...
  • Page 10 CT850 ENT STEP ONE HARDWARE FOR STEP 1 PART TYPE DESCRIPTION FLAT WASHER 3/8”X35X2T 3/8”X16.5X2.0T SPLIT WASHER M5X12MM SCREW 3/8”X3” BOLT 1. Gather HARDWARE FOR STEP 1. 2. The RIGHT UPRIGHT (34) has a preinstalled Lower COMPUTER CABLE (42) TV SIGNAL (153), CONSOLE POWER (155), NETWORK (157), CSAFE (159), and HDMI CABLE (161).
  • Page 11 CT850 ENT STEP TWO HARDWARE FOR STEP 2 PART TYPE DESCRIPTION SCREW M5X12 1. Gather HARDWARE FOR STEP 2. 2. Connect the Upper COMPUTER CABLE (41), TV SIGNAL (152), CONSOLE POWER (154), NETWORK (156), CSAFE (158), and HDMI CABLE (160). HAND PULSE WIRE (39)(40) and GROUND WIRE (162) to the BOARD on the back of the CONSOLE (28).
  • Page 12 CT850 ENT STEP THREE HARDWARE FOR STEP 3 PART TYPE DESCRIPTION SPLIT WASHER 3/8”X16.5X2.0T 3/8”X25X2T FLAT WASHER 3/8”X3/4” BOLT M8X12 BOLT 1. Gather HARDWARE FOR STEP 3. 2. Use 6 SOCKET HEAD CAP BOLTS (146) to secure the console onto the LEFT AND RIGHT MOUNTING BRACKETS (3-L, 4-R).
  • Page 13 CT850 ENT STEP FOUR HARDWARE FOR STEP 4 PART TYPE DESCRIPTION SPLIT WASHER 3/8”X16.5X2.0T 3/8”X16X1 - 3/4” BOLT 10X23X1.5T CURVED WASHER 1. Gather HARDWARE FOR STEP 4. 2. Slide 2 CURVED WASHERS (163) and 2 SPLIT WASHERS (117) onto 2 BUTTON HEAD SOCKET BOLTS (162).
  • Page 14 CT850 ENT CONSOLE OPERATION Fan to keep you cool Large T ouch- Screen LCD Twelve innovative programs of fer a variety of work-outs Convenient cargo compartment for keys, phone, or MP3 player Easy-T ouch Control Buttons...
  • Page 15 Starting the operation Plug in the power cord and switch on the main power switch located at the front base of the treadmill and make sure that the safety key is put on as the treadmill is unable to operate without the safety key. When the power is turned on, the screen will show the initial image and then enter the ready mode which is the beginning of the treadmill operation.
  • Page 16: Quick Start

    Quick Start • Press Start button and the belt runs with 0.8 km/h (0.5 MPH). • Press Fast/Slow buttons further to adjust the speed. • Press and hold Slow button to slow down to the desired speed. • Press first page button or Stop button to stop the belt. Featuring functions of this treadmill Touch-control screen is installed for operating the treadmill.
  • Page 17: Heart Rate Feature

    Pulse values are displayed anytime the computer is receiving a Grip Pulse signal. You may use the Grip Pulse feature while in Heart Rate Control. The CT850 ENT will also pick up wireless heart rate transmitters that are Polar compatible, including signal transmitting.
  • Page 18 T ouch Screen Operation Language There are four items to be selected. Generally the Language would be the first item to select. When you press the Language button on Home page, it enters the menu with all language selections. There are 12 languages to choose. Touch the desired language, and the system will return to the first page to begin the other program, or if you don’t want to change the language, you could...
  • Page 19 When the TV button on the Home page is pressed, it directly enters TV interface. Now you can enjoy TV programs. If you want to enjoy TV while exercising, press Start button at front of the treadmill to start it. You can change the TV channel by using Up/Down buttons on the TV channel or the channel control panel buttons at the right side of the screen for quick...
  • Page 20 Internet When the Internet button on the Home page is pressed, it directly enters Internet interface. There are 6 internet connections to choose for you to go on the internet while you are exercising. (internet cable connection or WIFI connection is required) Use Fast and Slow buttons to control the speed and Up or Down button to set the incline level during the exercise.
  • Page 21: Exercise Programs

    Exercise Programs When the Exercise Program button on the Home page is pressed, it directly enters Menu interface. There are 12 program modes in Menu interface for you to choose the desired program mode. For Manual Program as an example, just touch Manual button on the screen to enter the program for Manual.
  • Page 22 The profile interface image is as seen to the right. If it is the program you want, touch Enter button at the bottom once to enter next image. If not, touch the Home icon at left top to return to the first page or the return icon at right top to return to the previous page to continue the last operation.
  • Page 23 Display Options Simple The image after start is Simple which is with all values on the bottom concerning your workout. The speed value is at right side while the incline level is at the left side and the value is adjustable with Up or Down button.
  • Page 24 Track The operating is similar only with different interface. The image shows the track with number of laps and other values. Dashboard The operating is similar with a different interface only. You can choose one of three interfaces on the bottom with your own preference.
  • Page 25: Stop Button

    Stop Button When using the first page button or Stop button to end the program, it enters the summary image. On the summary image, all accumulating values concerning the workout are displayed. You can touch the Home button at left top or press Stop button to return to the first page image.
  • Page 26: Programmable Features

    Programmable Features T o Select and Start A Preset Program The Spirit Fitness CT850 ENT offers twelve preset programs: Hill, Fat Burn, Cardio, Calorie, Interval, Strength, 5K Run, 10K Run, HR, a Custom User defined program, Multiple based Fitness Tests and one Manual program.
  • Page 27 Preset Programs Speed/Incline Settings The preset program Speed and Incline levels are shown in the chart below. The Speed numbers shown in the chart indicate a percentage of the top speed of the program. For instance, the first Speed setting for P1 (Program 1, HILL) shows the number 20.
  • Page 28: Custom Program

    Calorie Program Select a CALORIE program then press the ENTER key to begin customizing the program with your personal data, or just press the start key to begin the program with the default settings. The touch Calories window will now be darken a value indicating your consume calories use numeric keypads to make adjustments, and then press ENTER confirm, display takes time and modify Now press the START key to begin your workout.
  • Page 29 Fitness T est When the Fit-Test key is pressed the DM displays the 8 different tests available: Gerkin, WFI (Modified Gerkin), Army (PFT), Navy (PRT), Air Force (PRT), Marines (PFT), Physical Efficiency Battery (PEB) For U.S. Federal Law Enforcement, US Coast Guard Fitness T est Operation The Message Window will ask you to enter your Weight.
  • Page 30: Air Force

    Army Air Force A timed 2 mile run. You control the speed A timed 1.5 mile run. You control the speed manually. Maximum time allowed to pass the test: manually. Maximum time allowed to pass the test: Male Female Male Female 17-21 16:36...
  • Page 31 3:15 5.0mph 44.1 3:30 5.0mph 45.15 3:45 5.0mph 46.2 Gerkin 4:00 5.5mph 46.5 4:15 5.5mph 48.6 The Gerkin protocol, also known as the fireman’s protocol, and is a submax Vo2 (volume of oxygen) 4:30 5.5mph test. The test will increase speed and elevation alternately until you reach 85% of your Max heart rate. 4:45 5.5mph 51.4...
  • Page 32 Before The T est Make sure you are in good health; check with your physician before performing any exercise if you are over the age of ƒ 35 or persons with pre-existing health conditions. Make sure you have warmed up and stretched before taking the test. ƒ...
  • Page 33 average 47-51 43-48 39-42 35-38 32-35 29-32 average 42-46 40-42 35-38 32-35 30-31 26-28 After The T est below average 37-41 35-39 31-34 29-31 26-29 22-25 • Cool down for about one to three minutes. poor 30-36 30-34 26-30 25-28 22-25 20-21 •...
  • Page 34: Heart Rate Programs

    Heart Rate Programs The old motto, “no pain, no gain”, is a myth that has been overpowered by the benefits of exercising comfortably. A great deal of this success has been promoted by the use of heart rate monitors. With the proper use of a heart rate monitor, many people find that their usual choice of exercise intensity was either too high or too low and exercise is much more enjoyable by maintaining their heart rate in the desired benefit range.
  • Page 35 Consult your physician before participating in any exercise program. With all Spirit Fitness Heart Rate programs you may use the heart rate monitor feature without using the Heart Rate program. This function can be used during manual mode or during any of the nine...
  • Page 36: Rate Of Perceived Exertion

    Rate of Perceived Exertion Heart rate is important but listening to your body also has a lot of advantages. There are more variables involved in how hard you should workout than just heart rate. Your stress level, physical health, emotional health, temperature, humidity, the time of day, the last time you ate and what you ate, all contribute to the intensity at which you should workout.
  • Page 37 Wearing The Chest Strap Attach the transmitter to the elastic strap using the interlocking key. Adjust the strap as tightly as possible as long as the strap is not too tight to remain comfortable. Position the transmitter with the logo centered in the middle of your torso facing away from your chest (some people must position the transmitter slightly left of center).
  • Page 38 Some people have problems with the transmitter picking up a signal from their skin. If you have problems try wearing the transmitter upside down. Normally the transmitter will be oriented so the Spirit Fitness logo is right side up. The antenna that picks up your heart rate is very sensitive. If there is an outside noise source, turning the whole machine 90 degrees may de-tune the interference.
  • Page 39: Heart Rate Control

    Heart Rate Control How the Heart Rate Control Programs Work: Heart Rate Control (HRC) uses your treadmill’s incline system to control your heart rate. Increases and decreases in elevation affect heart rate much more efficiently than changes in speed alone. The HRC program automatically changes elevation gradually to achieve the programmed target heart rate.
  • Page 40 Safety T ether Cord • A safety tether cord is provided with this unit. It is a simple magnetic design that should be used at all times. It is for your safety should you fall or move too far back on the tread-belt. Pulling this safety tether cord will stop tread-belt movement.
  • Page 41 Semi- Task How To Daily Weekly Monthly Annually Annually Damp cloth w/ Wipe Down Unit water Clean Under Belt Towel or vacuum Check Belt Tension/Tracking Feel/Visual Clean Under Motor Cover Vacuum carefully Check Hardware Wrench Inspect for Deck Wear Visual Inspect Drive Belt Visual Belt/Deck...
  • Page 42: Belt Adjustments

    Belt Adjustments Tread-belt Tension Adjustment - Belt tension is not critical for most users. It is very important though for joggers and runners in order to provide a smooth, steady running surface. Adjustment must be made from the rear roller with the 8mm Allen wrench provided in the parts package.
  • Page 43 Proper belt tracking is an owner responsibility common with all treadmills. ATTENTION Damage to the running belt resulting from improper tracking / tension adjustments is not covered under the Spirit Fitness warranty.
  • Page 44 Calibration Procedure Remove the safety key Press and hold down the Start and Fast + buttons and replace the safety key. Continue to hold the Start and Fast key until the window displays “Factory settings”, then press the Enter key. You will now be able to set the display to show Metric or English settings (Miles vs.
  • Page 45 Plug is disconnected. Make sure plug is firmly pushed into 115 VAC wall outlet. Breaker panel circuit breaker may be tripped. Treadmill defect. Contact your Spirit Fitness dealer. Tread-belt does not stay centered The user may be walking while favoring or putting more weight on either the left or right foot.
  • Page 46 12 gauge minimum. Low voltage. Contact an electrician or your Spirit Fitness dealer. A minimum of 110 volt AC current is required. Tread-belt stops quickly/suddenly when High belt/deck friction.
  • Page 47: General Maintenance

    GENERAL MAINTENANCE Wipe down all areas in the sweat path with a damp cloth after each workout. If a squeak, thump, clicking or rough feeling develops the main cause is most likely one of two reasons: The hardware was not sufficiently tightened during assembly. All bolts that were installed during assembly need to be tightened as much as possible.
  • Page 48 T readmill Warranty - Effective December 23 , 2015 Spirit Fitness warrants all its Treadmill parts for a period of time listed below from the date of retail sale, as determined by sale receipt, or in the absence of a sales receipt eighteen (18) months from the original factory shipping date. Spirit Fitness’ responsibilities include providing new or remanufactured parts, at Spirit Fitness’...
  • Page 49 Products that have been: sold, transferred, bartered, or given to a third party. Products that do not have a warranty registration card on file at Spirit Fitness. Spirit Fitness reserves the right to request proof of purchase if no warranty record exists for the product.
  • Page 50 NOTES...
  • Page 51 NOTES...
  • Page 54 800.258.4555 Spirit Fitness spiritservice@spiritfitness.com 3000 Nestle Road www.spiritfitness.com Jonesboro, AR 72401 CT850 ENT Owners Manual © 2015 All Rights Reserved Revision: 12. 23.2015...
