Removing and Replacing the
Cover
The FX30E/FX60E cover is removable. You must remove
the FX30E/FX60E cover to connect the optional battery
on a new unit, to replace the optional battery on an
existing unit, or to install any optional communication
cards. The cover snaps onto the base with four plastic
tabs (two on each end). To remove the cover, press in
the four tabs on both ends of the unit and lift off the cover.
FX30E/FX60E Supervisory Controllers Installation Instructions

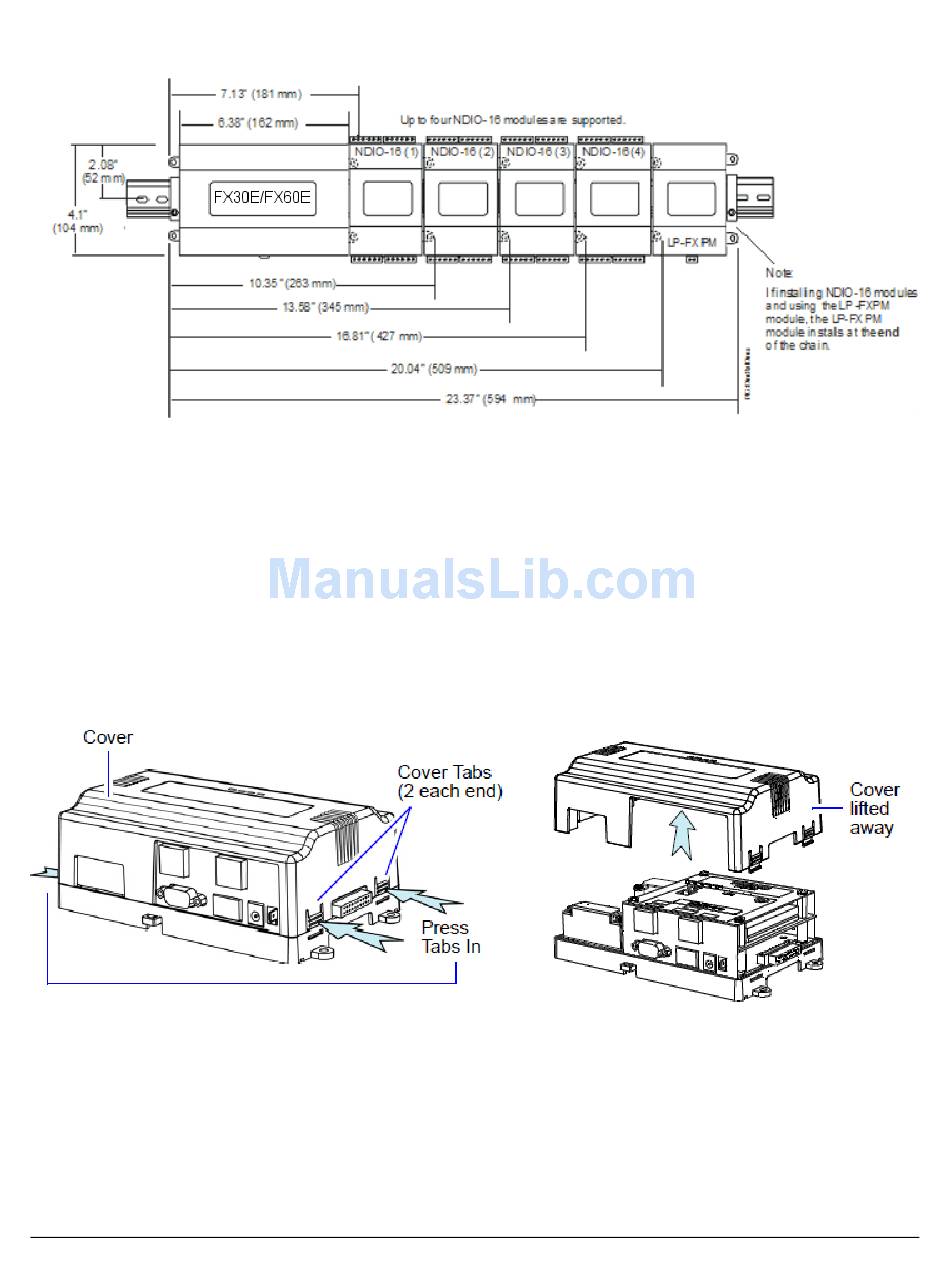

Figure 5: Mounting Accessories
Figure 6: Removing and Replacing the Cover
Note: If accessory modules are plugged into the
FX30E/FX60E, you may need to slide them away
from the unit to get to the cover tabs.
To replace the cover, position it so the cutout area for the
communication ports is correct, then push inward to snap
in place.
