ICX30-HWC ♦ Industrial Cellular Gateway
3G Cellular (M2M)

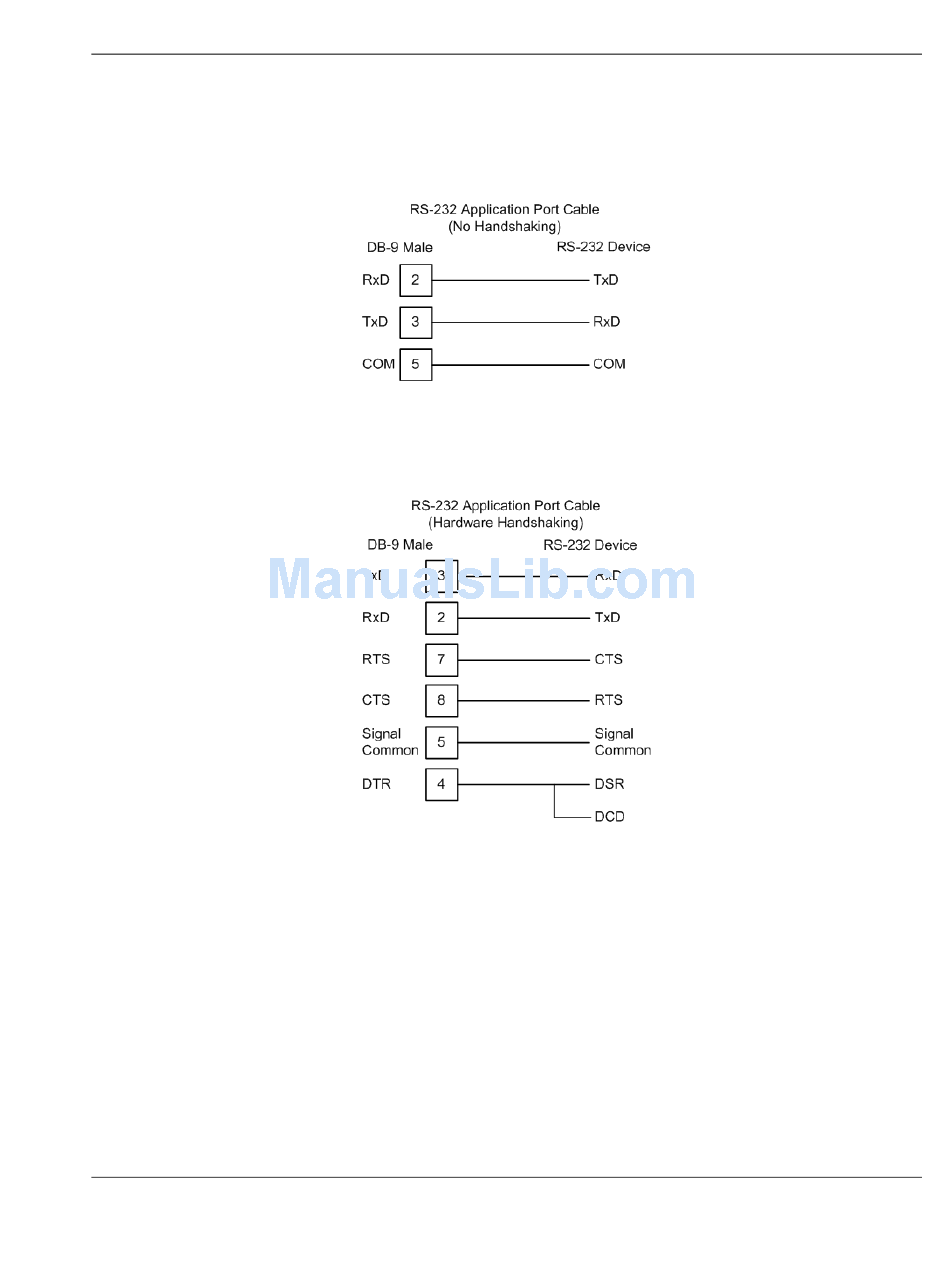

3.2.3 Serial Port Basics
The use of hardware handshaking (control and monitoring of signal lines)
depends on the requirements of the networked device. If no hardware
handshaking will be used, the cable to connect to the port is as shown below:
If hardware handshaking is required, the cable to connect to the port is as shown
below:
ProSoft Technology, Inc.
June 22, 2015
Hardware Installation
User Manual
Page 41 of 64
