Power Requirements - ProSoft Technology ICX30-HWC User Manual

ICX30-HWC ♦ Industrial Cellular Gateway
3G Cellular (M2M)
1.4

Power Requirements

The ICX30-HWC accepts voltages between 10 and 24 VDC (300 mA @ 12 VDC,
150 mA @ 24 VDC), with an average power draw of 6 watts or less. A
detachable power connector comes with the radio, as shown below. The
connector terminals are labeled + (positive DC connection) and - (DC ground
connection).
The AC-to-DC power supply adapter may be used. DC power wires must be less
than 2 meters in length to meet regulatory requirements.
Important: When wiring the power connector, be sure to observe the proper polarity markings on
the power connector. Improper connector wiring can cause serious damage to the ICX30-HWC
which will not be covered under the ProSoft Warranty.

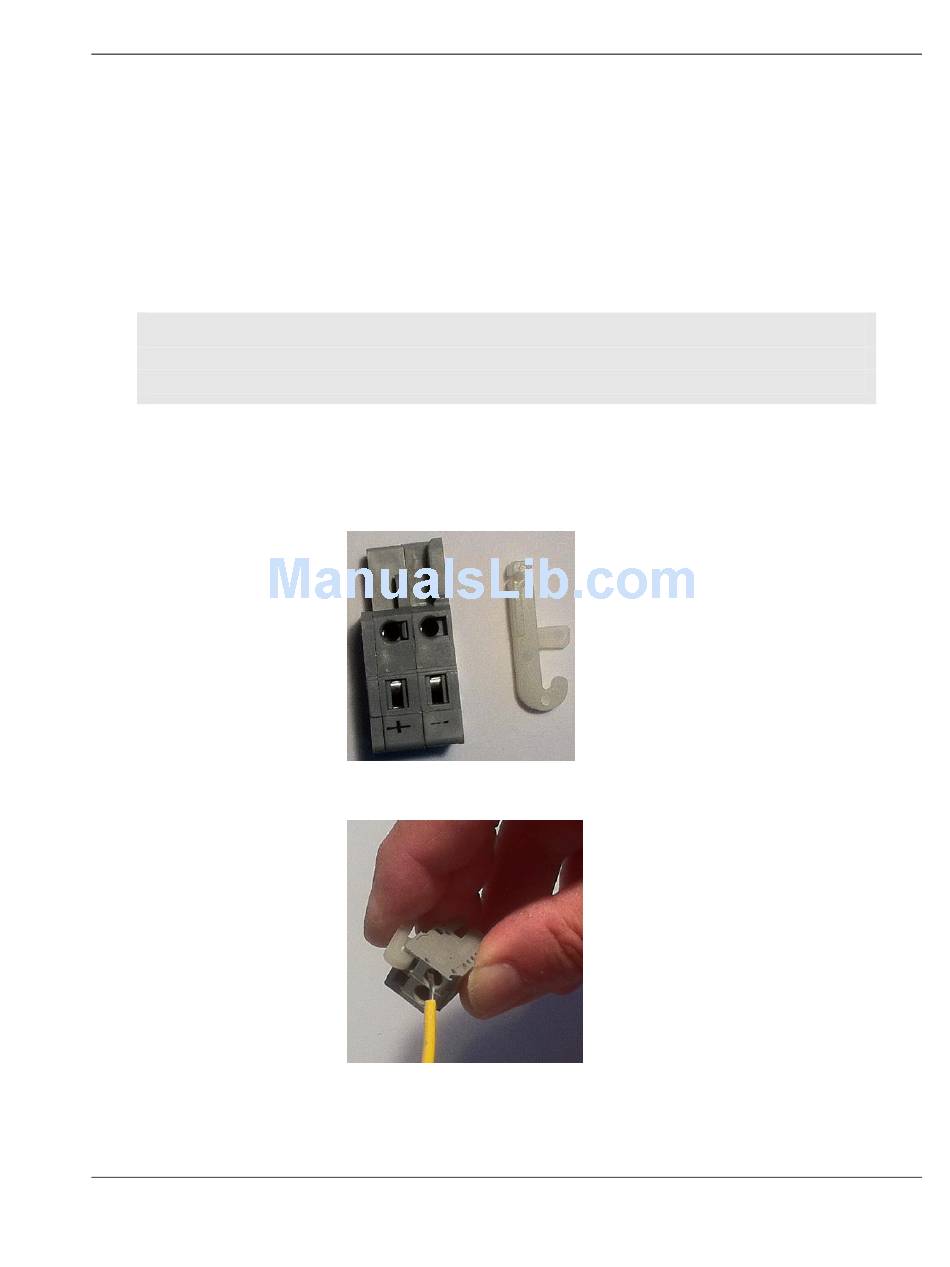

The power connector (ProSoft P/N 002-0116) and wire installation tool (ProSoft
P/N 357-0061) are shown in the following graphic. The wire installation tool is
helpful when installing wires into the spring-loaded contacts inside the power
connector.
1 To use the wire installation tool, insert it into the connector as shown.
2 Press down on the installation tool to use it as a level which opens the
connector's contacts to insert a wire. A properly wired connector is shown.
