HID FARGO DTC 1000 Installation Manual

FARGO

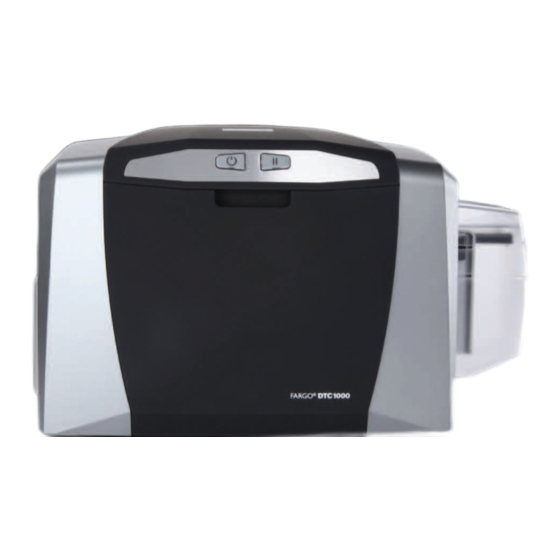

Direct-to-Card Printer
Installation Guide
AC ACCESS versatility.
1
Pull open the ribbon cartridge door.
5
Close ribbon cartridge door.
9
Open output hopper door.
For additional information, visit
Included with your printer are the following items:
• Power Supply
• US Power Cord
• European Power Cord
• Declaration of Conformity
DTC 000
®
2
Pull liner tab.
6
1
2
1) Release door lock and open door.
2) Press lever locking card platform.
10
1) Connect AC power cable to
power supply.
2) Insert the opposing AC power
cable end into the AC outlet.
3) Connect power supply to
printer.
3
1
fargo.hidglobal.com
• Swift ID
• Software Installation CD (includes
Printer Driver User Guide and Fargo
Workbench Printer Utility)
3
Remove the brace from the ribbon cartridge.
7
Insert cards.
11
2
For a printer using USB, do not connect the
USB cable at this time. The USB cable is
connected during driver installation.
This Quick Start Guide is for informational purposes only. HID makes no warranties, expressed or implied, in this
summary. Company, product names and data used in sample output are fictitious. Specifications are subject to
change without notice.
HID GLOBAL, HID, the HID logo and Fargo are the trademarks or registered trademarks of HID Global Corporation, or
its licensors, in the U.S. and other countries.
© 2010 HID Global Corporation. All rights reserved.
Microsoft, Windows and the Windows logo
are trademarks, or registered trademarks of
Microsoft Corporation in the United States and
other countries.
Card Printing & Encoding
L001479-01, 1.0
4
Insert ribbon cartridge.
8
Close card hopper door.
12
Follow the on-screen instructions for
installing the printer driver.
