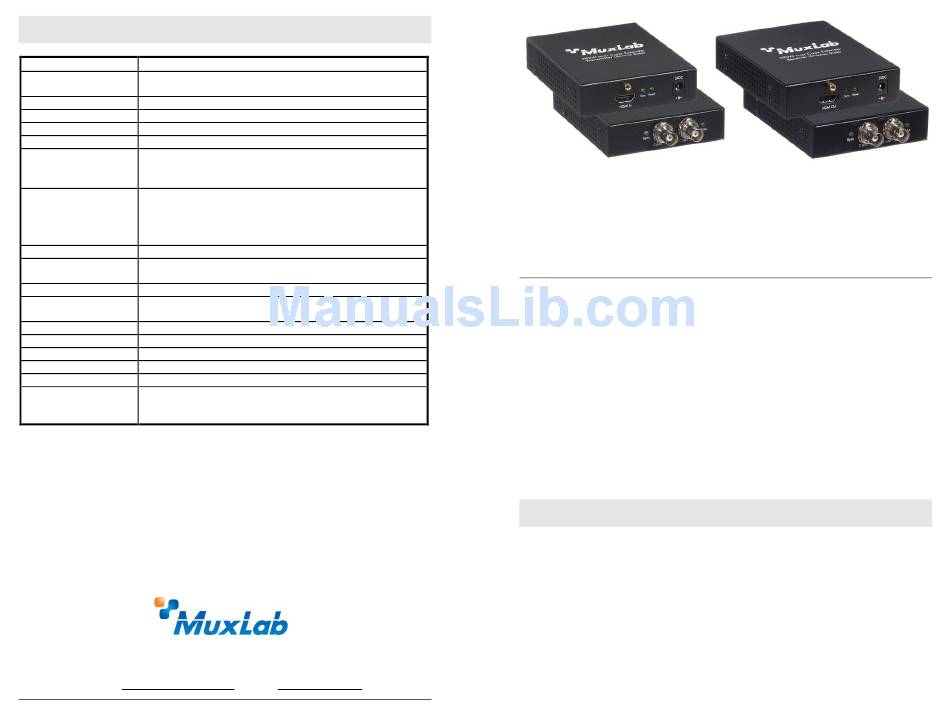

MuxLab 500465 Quick Installation Manual

Specifications

Environment HDMI 1.3a, 3G-SDI, HD-SDI & SD-SDI
Devices DVD, plasma, projectors, monitors, TV, PC, laptops, servers
supporting HDMI.
Transmission Transparent to the user
Bandwidth 225 MHz
Signals HDMI 1.3a & SDI protocol
Supported Resolution 480i, 576i, 720p, 1080i, 1080p/23.98/24/25/29.9/30/50/59.94/60
Connectors One (1) HDMI receptacle.
Two (2) BNC Female 75 Ohms.
Note: HDMI cables not included.
Maximum Distance 480i:
720p, 1080i:
Based on a maximum
1080p:
length of 6.6 ft (2 m) of
HDMI cable per end.
Cable One (1) RG-59 or better cable required
Power Supply Two (2) 110-240V/5VDC power supplies with interchangeable
blades
Power Consumption Transmitter: 3.30 Watt
Temperature Operating: 0° to 40°C
Humidity: Up to 95% non-condensing
Enclosure Metal
4.72" x 3.54" x 1.18" (12.0 x 9.0 x 3.0 cm)
Dimensions
Weight 1.3 lbs (0.59 kg)
Compliance Regulatory: FCC, CE, RoHS
Warranty 2 years
500465 HDMI over Coax Extender Kit
Order Information
500465-TX HDMI over Coax Transmitter
500465-RX HDMI over Coax Receiver
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: videoease@muxlab.com
© MuxLab Inc.
RG-59: 650ft (198m) RG-6: 800ft (244m)
RG-59: 500ft (152m) RG-6: 650ft (198m)
RG-59: 250ft (76m) RG-6: 300ft (91m)
Receiver: 3.55 Watt
Storage: -20° to 85°C
Flammability: 94V0
Fax: (514) 905-0589
URL: www.muxlab.com
94-000746-B SE-000746-B
HDMI over Coax Extender Kit
500465
Quick Installation Guide
Overview
The HDMI over Coax Extender Kit (500465) allows HDMI equipment to be connected
up to 250ft (76m) @ 1080p via one (1) RG-59 coaxial cable in a point-to-point
configuration. The Transmitter converts the HDMI signal to SDI and the Receiver
converts the SDI signal back to HDMI, supporting resolutions of 480i (SD-SDI),
720p/1080i (HD-SDI) and 1080p (3G-SDI), and allows the user to benefit from an
existing coax cable infrastructure. The kit thereby enables conversion of the HDMI to
the SDI environment and vice-versa, and includes one (1) Transmitter and one (1)
Receiver.
Applications
Applications include commercial and residential AV systems, classroom projector
systems, digital signage, boardroom systems, collaborative PC systems, and medical
information systems.
Installation
1. Identify the connectors on the Transmitter and Receiver as indicated on the product
labels. Reference the front and rear product views for further details.
2. Verify that the distance between the Transmitter and Receiver is within
MuxLab specifications (see Specifications table).
3. To install the Transmitter:
3a. Connect the Transmitter to the HDMI video source with an HDMI compliant
cable.
3b. Connect one (1) length of RG-59 (or higher) grade coaxial cable to the
RJ45 LINK connector on the Transmitter.
