MuxLab 500460-RX Quick Installation Manual

Hdmi fiber extender kit

Advertisement

Specifications

Environment
HDMI 1.3a
Devices
DVD, plasma, projectors, monitors, TV, PC, laptops, servers
supporting HDMI.
Transmission
Transparent to the user
Bandwidth
340 MHz
Signals
HDMI 1.3a protocol
Connectors
One (1) HDMI receptacle.
One (1) SC Fiber connector.
3.5mm jacks for IR emitter and sensor
DB9 Connectors for RS-232 Ports
Note: Fiber and serial cables not included.
Maximum Distance
1080P video may be extended up to 1000 feet (305m), depending of
the type of fiber used.
Based on a maximum
length of 6.6 ft (2 m) of
100m (300 ft) on 62.5/125 μm (OM1) multi-mode SC fiber
HDMI cable per end.
305m (1000 ft) on 50/125 μm (OM3) multi-mode SC fiber.
One (1) Multimode fiber 50/125 μm or 62.5/125 μm cable required
Cable
Power Supply
Two (2) 110-240V/5VDC power supplies with interchangeable blades
Power Consumption
Transmitter: 2.7 Watt
Temperature
Operating: 0° to 40°C
Humidity: Up to 95% non-condensing
Enclosure
Steel
4.00" x 3.00" x 0.876" (10.2 x 7.6 x 2.2 cm)
Dimensions
Weight
2.0 lb (0.9 kg)
Compliance
Regulatory: FCC, CE, RoHS
Warranty
2 years
Order Information
500460
HDMI Fiber Extender Kit
500460-RX HDMI Fiber Extender Receiver
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: videoease@muxlab.com
© MuxLab Inc.
Receiver: 2.3 Watt
Storage: -20° to 85°C
Flammability: 94V0
Fax: (514) 905-0589
URL: www.muxlab.com
94-000708-A SE-000708-A

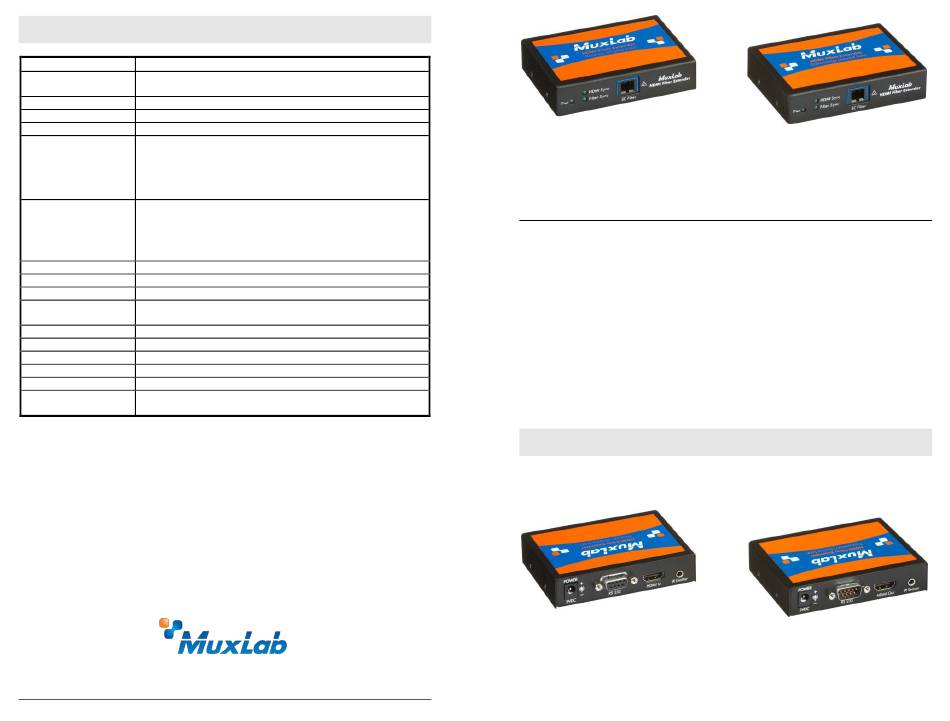

HDMI Fiber Extender Kit
500460 (Kit), 500460-RX (Receiver Only)
Quick Installation Guide

Overview

The HDMI Fiber Extender Kit (500460) allows HDMI equipment to be connected up to
1000 ft (305 m) @ 1080p Deep Color via one (1) 50/125 μm Multimode fiber cables in a
point-to-point configuration. The kit comes with one (1) Transmitter and one (1)
Receiver as well as an IR Emitter (500998) and IR Sensor (500999) for remote control
applications. The 500460-RX receivers are used in conjunction with MuxLab's HDMI
Matrix Switch. For installation instructions, please refer to the HDMI Matrix Switch
Installation Guide.

Applications

Applications include commercial and residential AV systems, classroom projector
systems, digital signage, boardroom systems, collaborative PC systems, and medical
information systems.

Installation

1.
Identify the connectors on the Transmitter and Receiver as indicated on the product
labels.
