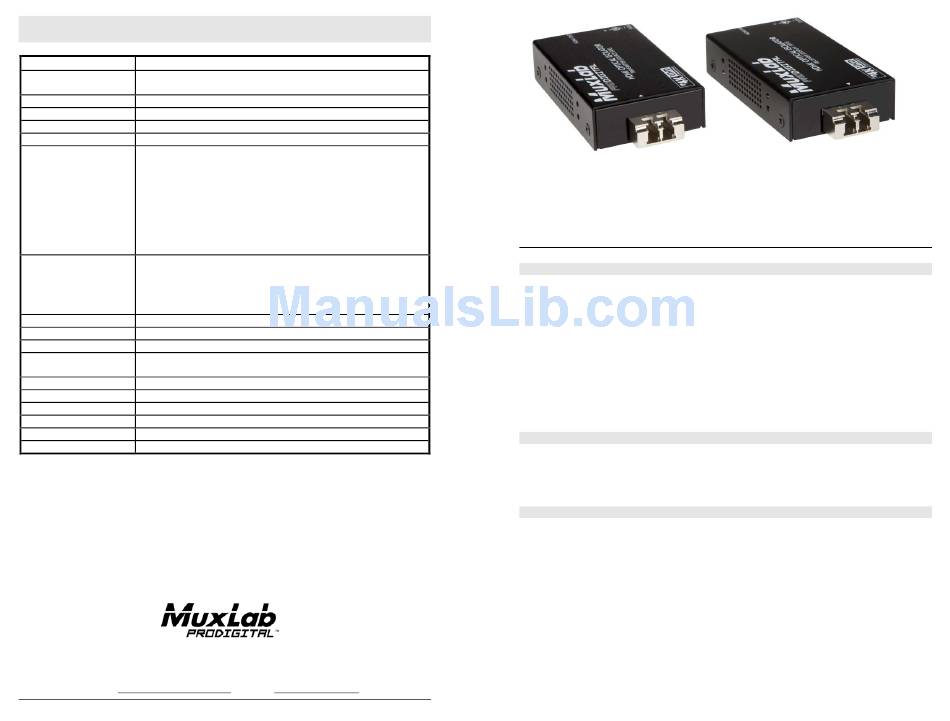

MuxLab 500462 Quick Installation Manual

Specifications

Environment HDMI 1.3a and DVI-D
Devices DVD, plasma, projectors, monitors, TV, PC, laptops, servers
supporting HDMI.
Transmission Unidirectional. Transparent to the user
Bandwidth 340 MHz
Signals HDMI 1.3a protocol
Copy Protection Do NOT Support HDCP protected content.
Connectors TX Side: One (1) HDMI receptacle.
One (1) LC Fiber connector (output only).
One (1) 2.1mm power connector.
TX Side: One (1) HDMI receptacle.
One (1) LC Fiber connector (input only).
One (1) 2.1mm power connector.
Note: HDMI and Fiber cables not included.
Maximum Distance 480i/p:
720p, 1080i:
Based on a maximum
1080p 8-bit:
length of 6.6 ft (2 m) of
1080p 12-bit deep-color: 984ft (300m)
HDMI cable per end.
4K @ 24,25, 30Hz
One (1) Multimode fiber 50/125 μm OM3 cable required
Cable
Two (2) 110-240V/5VDC power supply with interchangeable blades
Power Supply
Power Consumption Transmitter: 1.35 Watt
Temperature Operating: 0° to 55°C
Humidity: Up to 95% non-condensing
Enclosure Aluminium
Dimensions 3.27" x 1.97" x 0.75" (83 x 50 x 19 mm)
Weight 1.0 lb (0.45 kg)
Compliance Regulatory: FCC Class A, CE, RoHS
Warranty 2 years
Order Information 500462 HDMI Optical Isolator Kit
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: videoease@muxlab.com
© MuxLab Inc.
984ft (300m)
984ft (300m)
984ft (300m)
984ft (300m)
Receiver: 1.15 Watt
Storage: -20° to 85°C
Fax: (514) 905-0589
URL: www.muxlab.com
94-000776-A SE-000776-A
HDMI Optical Isolator Kit
500462
Quick Installation Guide
Overview

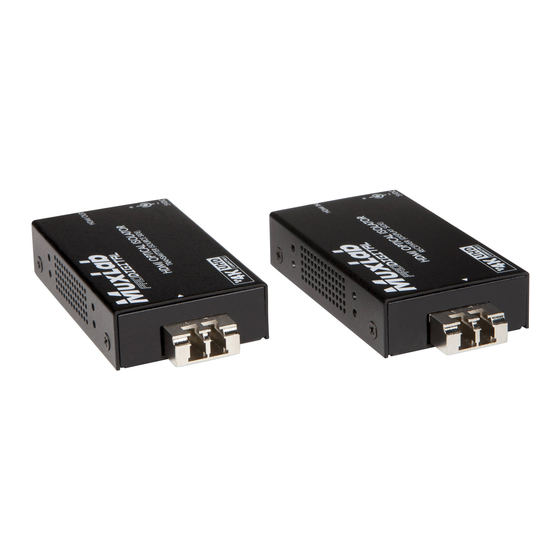

The HDMI Optical Isolator (500462) allows HDMI equipment to be completely isolated
and connected up to 984ft (300m), while allowing a unidirectional communication (with
no return signaling) via one (1) LC 50/125 μm
point configuration at 1080p resolution.
The HDMI Optical Isolator establishes a high separation between the source computer
and the display devices preventing any potential leakage between the source and the
peripheral equipment; removing the vulnerability of shared display equipment to cyber-
attacks.
The kit comes with one (1) Transmitter, one (1) Receiver and two (2) power supply.
Applications
Commercial and residential AV systems, classroom projector systems, digital signage,
boardroom systems, collaborative PC systems, and medical information systems, high
security applications.
Key Features
•
Complete optical isolation between source and display.
•
Unidirectional HDMI communication.
•
No return signaling.
•
Fixed EDID configuration.
•
Up to 984ft (300m) @ 1080p via one (1) LC multimode fiber.
ultimode fiber cable in a point-to-
OM3 m
