MuxLab 100509 Quick Installation Manual

Specifications
Environment HDMI 1.4a
Devices DVDs, Blu-ray players, projectors, monitors, TVs, PCs, laptops,
servers supporting HDMI.
Transmission Transparent to the user
Bandwidth 340 MHz
Signals HDMI 1.4a protocol and HDCP 1.4/2.2
Connectors One (1) HDMI receptacle.
One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair.
Two (2) 3.5mm jacks for IR emitter and sensor.
Cables not included. One (1) Terminal block 3POS RS232 connector
One (1) Terminal Block 2POS power connector.
Maximum Distance 4K/30 (4:4:4):
4K/60 (4:2:0):
1080p:
1080p Deep Color:
Based on a maximum
Note: When installed in an electrically noisy environment, an STP
length of 6.6 ft (2 m) of
cable must be used. Also, cross-connection reduces the effective
HDMI cable per end.
distance depending on the grade of twisted cable used.
RJ45 Pin Configuration RJ45 Link
Pin 1 (R) Pin 2 (T)
Reverse Polarity
Pin 3 (R) Pin 6 (T)
Sensitive. Use EIA/TIA
Pin 4 (R) Pin 5 (T)
568A or 586B straight-
Pin 7 (R) Pin 8 (T)
through wiring.
Cable One (1) Cat 5e/6 or better twisted pair cables required
Power Supply One (1) 110-240V/12VDC @2A power supply with interchangeable
blades
Power Consumption Transmitter: 1.8 Watt
Temperature Operating: 0° to 40°C
Humidity: Up to 95% non-condensing
Enclosure Metal
4.45" x 2.83" x 0.59" (11.3 x 7.2 x 1.5 cm)
Dimensions
Weight 1.4 lbs (0.6 kg)
Compliance Regulatory: FCC, CE, RoHS
Warranty 1 year
Order Information 100509 HDMI Extender Kit 70M, HDBT, UHD-4K
2321 Rue Cohen, Saint-Laurent, Quebec, Canada. H4R 2N7
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: info@muxlab.com
© MuxLab Inc. 2020
Cat 5e/6: 131ft (40m)
Cat 5e/6: 131ft (40m)
Cat 5e/6: 230ft (70m)
Cat 5e/6: 230ft (70m)
Receiver: 3.6 Watt
Storage: -20° to 85°C
Flammability: 94V0
Fax: (514) 905-0589
URL: www.muxlab.com
94-000935-A SE-000935-A
HDMI Extender Kit 70M, HDBT, UHD-4K
100509
Quick Installation Guide
Overview

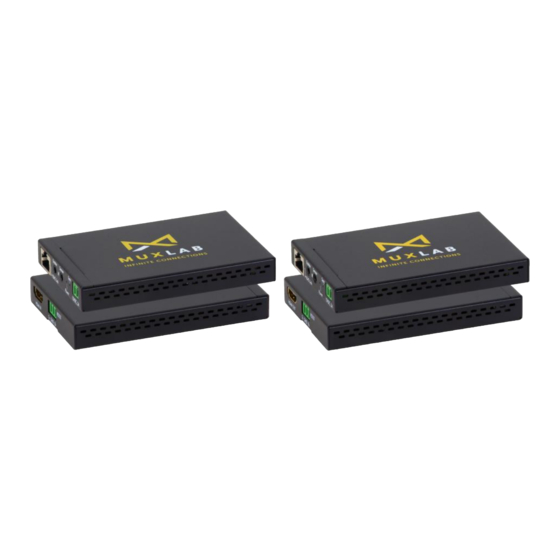

The HDMI Extender Kit 70M, HDBT, UHD-4K (100509) allows HDMI equipment to
be connected up to 131ft (40m) @ 4K/30 (4:4:4) or 4K/60 (4:2:0) resolution, or up to
230ft (70m) @ 1080p Deep Color via one (1) Cat 5e/6 unshielded twisted pair cables in
a point-to-point configuration. The kit comes with one (1) Transmitter and one (1)
Receiver as well as two (2) IR Emitters and two (2) IR Sensors, plus two 3-Pin Phoenix
plugs for RS232 for remote control applications.
Applications
Applications include commercial and residential AV systems, classroom projector
systems, digital signage, boardroom systems, collaborative PC systems, and medical
information systems.
Installation
1. Identify the connectors on the Transmitter and Receiver as indicated on the product
labels.
2. Verify that the distance between the HDMI Transmitter and Receiver is within
MuxLab specifications (see Specifications table).
3. To install the Transmitter:
3a. Connect the Transmitter to the HDMI video source with an HDMI compliant
cable.
3b. Connect one (1) Cat 5e/6 (or higher) grade UTP cable to the RJ45 LINK
connector on the Transmitter.
4. To install the Receiver:
4a. Connect the Receiver to the HDMI display equipment with an HDMI
compliant cable.
4b. Connect one (1) Cat 5e/6 (or higher) grade UTP cable to the RJ45 LINK
connector on the Receiver.
5. Connect the 12VDC power supply to either the Transmitter or Receiver first,
and then plug the power supply into an AC power outlet. If power is present,
the green power LED of the Transmitter and the Receiver will be ON.
