Crux RVCTY-71L Manual

RVCTY-71L
TOYOTA
2014 - 2014 Corolla
2015 Prius
Note:
This unit is NOT compatible
with "Tech Audio" systems.
REAR-VIEW CAMERA FOR SELECT TOYOTA VEHICLES 2014-UP
work. Following these instructions from "Start" to" Finish" will ensure
9:00 AM – 5:00 PM PDT at 1 (855) 822-1348. We are here to help.

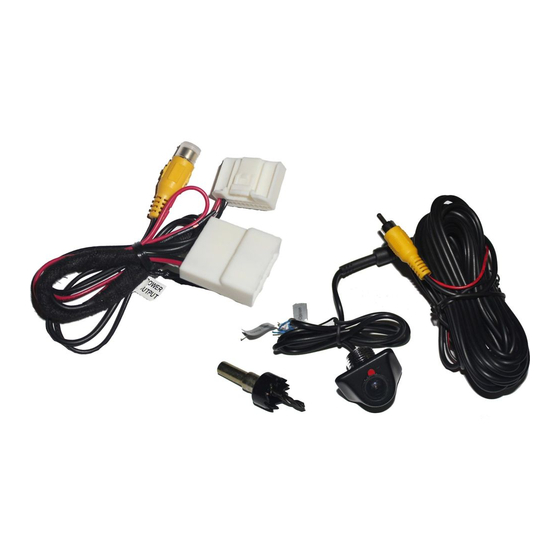

PARTS INCLUDED:
(1) TY-71L Rear Camera
(1) 15 ft. Extension
(1) Toyota Harness
(1) Instruction
- Lens Angle 170 Degrees
- Resolution 420 TV Lines
- Min. Illumination 0.2Lux
- Voltage 12v
- Operating Temp. -40 to 80RH
- NTSC/ PAL
- Reference Lines
- Shutter Speed 1/60s - 20us
- Waterproof
- Pixels 656 x 492
PRECAUTIONS:
- Remove the negative side of the battery to avoid any short circuits
during the installation.
- Do not install the interface near any major components or near the
HVAC system. This may cause damage or overheating to the vehicle.
:
PRELIMINARY
Please read the entire manual before installing this interface.
INSTALLING THE CAMERA AND INTERFACE
1. Remove the rear panel.
2. Drill a 5/8 size hole in the location
3. Fish the wires through the drilled hole and into the trunk/cargo area.
4. Remove the factory radio to gain access to the factory connectors.
connectors. Connect behind the DISPLAY not behind the radio.
6. Route the wires from the camera towards the radio and make the
power and video connections. For powering up the camera,
use the GREEN 12v output wire from the DATA-Bus interface.
PARKING LINE
The parking lines are there to assist you while reversing.
What the lines mean:
Green Line: CLEAR
Yellow Line: GETTING CLOSE
Red Line: WARNING - VERY CLOSE
To remove the parking lines simply cut the WHITE wire located near
the 4 pin barrel connector in the truck.
GREEN
YELLOW
RED

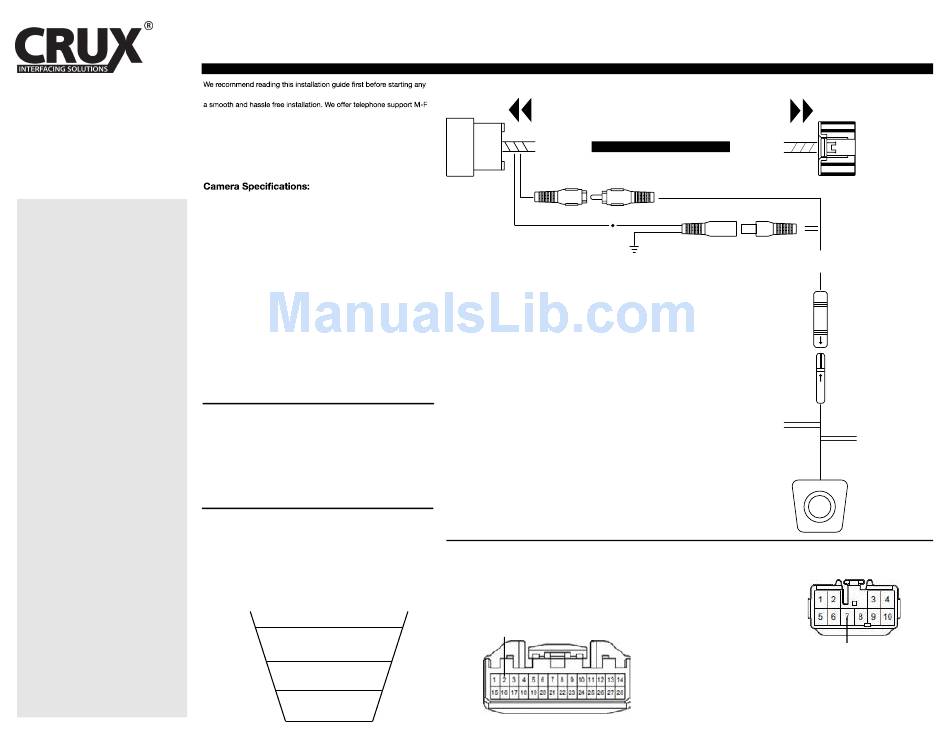

CAMERA CONNECTIONS
TO FACTORY
HARNESS
24-PIN
(female plug)
YELLOW RCA
REVERSE TRIGGER (OPTIONAL)
If the vehicle does not provide the reverse trigger input, the installer
must insert the female pin (PROVIDED) into the factory 28-Pin
connector
The reverse can be found at the FUSE PANEL on Driver's side kick
panel.
PIN 2
(Reverse Trigger Input)
TO FACTORY
RADIO
24-PIN
(male plug)
15 ft
(extension)
WHITE
(Parking Lines)
CONNECT TO TURN OFF
TROUBLE SHOOTING
1. If noise occurs on the screen while vehicle is in reverse,
we recommend grabbing the GROUND from PIN-7
on the 10-Pin connector.
WHITE
PIN VIEW
2. IF A CHANGE IS MADE TO EITHER THE WHITE
OR GREEN WIRES, PLEASE RESTART THE
VEHICLE. TURN OFF THEN BACK ON.
Rev. 012016
4-PIN BARREL
CONNECT FOR CAMERA
POWER AND SIGNAL
BLUE
(Front/ Rear Camera View)
CONNECT TO FOR FRONT
PIN 7
(ground)
