- Page 1 LE-578 5.25’’ Embedded Miniboard User’s Manual Edition 1.2 2017/11/28...
- Page 2 LE-578 User’s Manual Copyright Copyright 2017, all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
-
Page 3: Packing List
LE-578 User’s Manual Packing List: Please check the package content before you starting using the board. 1 x LE-578 Mini-ITX Motherboard (include Heat sink) 2 x SATA Cable 1 x Power Cable (OALSATA3-L / 1040529) (OALATX-P3S2 / 1040058) 1 x Audio cable... -
Page 4: Table Of Contents
LE-578 User’s Manual Index Chapter 1 <Introduction> ..............4 1.1 <Product Overview>............4 1.2 <Product Specification> ............5 1.3 <Block Diagram>..............6 Chapter 2 <Hardware setup> ............7 2.1 <Connector Location and Reference> ........7 2.1.1 <Internal connectors list> ..........8 2.1.2 <External connectors list>... -
Page 5: Chapter 1

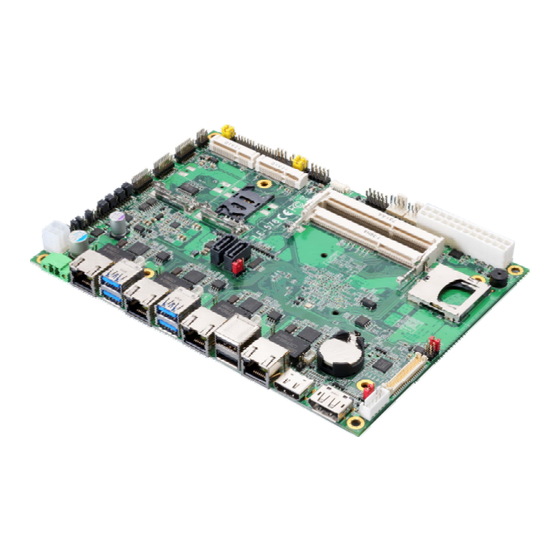

LE-578 User’s Manual Chapter 1 <Introduction> 1.1 <Product Overview> LE-578 is Mini-ITX Motherboard which is design based on Intel® Celeron® Processor N3350, and Intel® Pentium® Processor N4200 (Apollo Lake SoC), delivering outstanding compute, graphical, and media performance while operating in an extended range of thermal conditions. -
Page 6: Product Specification
LE-578 User’s Manual 1.2 <Product Specification> System Intel® Apollo Lake Series Processor N3350/ N4200/E3940, Processor FCBGA1296 package Chipset Apollo Lake SoC 2 x DDR3L DIMM 1866 MHz up to 8GB, Support Non-ECC, Memory unbuffered memory only Watchdog Timer Generates a system reset with internal timer for 1min/s ~ 255min/s... -
Page 7: Block Diagram
LE-578 User’s Manual 1.3 <Block Diagram> 2 x DDR3L Channel A/B PTN3460 SO-DIMM SD Card 1 x LVDS Apollo Lake PCIe x2 DDIC 2 x I210-AT 1 x DisplayPort PCIe x1 DDIB 1 x I210-AT 1 x HDMI PCIe x 1... -
Page 8: Chapter 2
LE-578 User’s Manual Chapter 2 <Hardware setup> 2.1 <Connector Location and Reference> DC_4P CN_INV CN_LVDS CN_COM1/2 SO-DIMM2 CN_COM3/4 SO-DIMM1 SD Card CN_COM5/6 CN_AUDIO I210-AT LAN1 LAN2 LAN3 LAN4 DC_2P USB3.0 USB2.0 HDMI DisplayPort USB3.0... -
Page 9: Internal Connectors List
LE-578 User’s Manual 2.1.1 <Internal connectors list> Connector Function SO-DIMM1/2 204-pin DDR3L SO-DIMM slot SATA3-1/2 7-pin Serial ATA3 connector CN_AUDIO 5 x 2-pin audio pin header CN_LPC 6 x 2-pin LPC pin header CN_DIO 6 x 2-pin General Purpose In/Out pin header... -
Page 10: Jumper Location And Reference
LE-578 User’s Manual 2.2 <Jumper Location and Reference> JCSEL11 JCSEL21 JRTC JVSATA JLVDS JCSEL12 JCSEL22 JUSBS2 JUSBS1 JMSATA 2.2.1 <Jumper list> Jumper Function Power mode select JMSATA MiniCard mSATA Setting JRTC CMOS Normal/Clear Setting JUSBS MiniCard USB Setting JVLCD Panel Voltage Setting... -
Page 11: Clear Cmos And Power On Type Selection
LE-578 User’s Manual 2.2.2 <Clear CMOS and Power on type selection> JAT: AT/ATX mode select jumper Jumper settings Function AT mode ATX mode (Default) JRTC: Clear CMOS data jumper Jumper settings Function Clear CMOS Normal (Default) JRTC 2.3 <Installing the Memory>... -
Page 12: I/O Interface
LE-578 User’s Manual 3. To remove the memory, push outward on both sides of the latch. Latch 2.4 <I/O interface> 2.4.1 <Serial ATA interface> SATA3-1/2: SATA3 7-pin connector Signal JVSATA JVSATA: SATA3/SATADOM mode select jumper (change pin7 to 5V) Jumper settings... -
Page 13: Ethernet Interface
LE-578 User’s Manual 2.4.2 <Ethernet interface> The board provide I210-AT Gigabit Ethernet which supports WOL on rear I/O. Find the setting from Front Page Setup utility Advanced South Cluster Configuration Miscellaneous Configuration Wake on LAN [Disable] (default) (You have to turn off fast startup in Windows10) 2.4.3 <... - Page 14 LE-578 User’s Manual CN_INV CN_LVDS JVLCD CN_LVDS: LVDS 40-pin connector ( Model: HIROSE DF13-40DP-1.25V compatible Signal Signal Set by JVLCD Set by JVLCD Detect (Active low) A_LVDS_0- B_LVDS_0- A_LVDS_0+ B_LVDS_0+ A_LVDS_1- B_LVDS_1- A_LVDS_1+ B_LVDS_1+ A_LVDS_2- B_LVDS_2- A_LVDS_2+ B_LVDS_2+ A_LVDS_CLK- B_LVDS_3-...
-
Page 15: Serial Port Interface
LE-578 User’s Manual CN_INV: LVDS 5-pin Backlight power connector Signal Backlight Control Enable Backlight JVLCD: LVDS panel power select jumper Jumper settings Function 3.3V (Default) Effective patterns of connection: 1-2 / 3-4 / 5-6 Other may cause damage 2.4.5 <Serial Port interface>... - Page 16 LE-578 User’s Manual COM1/2: RS232/422/485 20-pin header (Pitch 1.27mm x 2.54mm) Signal Signal DCD/ 422TX-/ 485- RXD/ 422TX+/ 485+ TXD/ 422RX+ DTR/ 422RX- Set by JP2 DCD/ 422TX-/ 485- RXD/ 422TX+/ 485+ TXD/ 422RX+ DTR/ 422RX- Set by JP1 Note: COM1 Use JCSEL12 select communication mode.
- Page 17 LE-578 User’s Manual JCSEL12/22, JCSEL11/21: For configure COM1 &COM2 communication mode Function JCSEL12/ JCSEL22 JCSEL11/ JCSEL21 RS232 (Default) RS485 RS422 RS-485 Com1 RTX- Data- : short Pin1& Pin4 Com1 RTX+ Data+ : short Pin2& Pin3 Com2 RTX- Data- : short Pin1& Pin4 Com2 RTX+ Data+ : short Pin2&...
-
Page 18: Usb Interface
LE-578 User’s Manual 2.4.6 <USB interface> CN_USB (USB2.0) USB3.0 USB2.0 USB3.0 CN_USB: Front panel USB2.0 10-pin header (Pitch 2.54mm) Signal Signal 5VSB 5VSB DATA0- DATA1- DATA0+ DATA1+ -17-... -
Page 19: Audio Interface
LE-578 User’s Manual 2.4.7 <Audio interface> CN_AUDIO CN_AUDIO: Front panel audio 10-pin header (Pitch 2.54mm) Signal Signal MIC_L MIC_R FP_OUT_R MIC_DETECT SENSE FP_OUT_L FP_OUT_DETECT -18-... -
Page 20: Expansion Slot
LE-578 User’s Manual 2.4.8 <Expansion slot> SIMM MINI_CARD1 MINI_CARD2 SD Slot JUSBS2 JMSATA JUSBS1 SD Slot: Signal Signal SD_D3 SD_CMD 3.3V SD_CLK SD_D0 SD_D1 SD_D2 SD_CD SD_WP -19-... -
Page 21: Mini_Card Setting
LE-578 User’s Manual 2.4.8.1 < MINI_CARD Setting > MINI_CARD1 have special design to compatible our MiniPCIe card (ex: MPX-4232, MPX-7202) supports mSATA set by JMSATA. MINI_CARD2 connect SIM card to use 3G module. JMSATA: Setting MINI_CARD to support PCIe/mSATA JMSATA... -
Page 22: Front Panel Switch And Indicator
LE-578 User’s Manual 2.4.9 <Front panel switch and indicator> JFRNT JFRNT: Front panel switch and indicator 14-pin header (Pitch 2.54mm) Signal Signal Power_ON- Power_ON+ Speaker- Speaker+ HDD_LED- HDD_LED+ Power_LED- Power_LED+ Reset+ Reset- 2.4.10 <Other interface> CN_PS2 CN_LPC CN_DIO CPUFAN SYSFAN... - Page 23 LE-578 User’s Manual CN_DIO: GPIO 12-pin header (Pitch 2.00mm) Signal Signal GPIO0 GPIO4 GPIO1 GPIO5 GPIO2 GPIO6 GPIO3 GPIO7 CN_LPC: LPC 12-pin header (Pitch 2.00mm) Signal Signal -LFRAME LAD3 LAD2 LAD1 LAD0 3.3V SERIRQ 3.3VSB Note: Support TPM module. CN_PS2: PS/2 10-pin header (Pitch 2.54mm)
-
Page 24: Power Supply
LE-578 User’s Manual 2.5 <Power supply> 2.5.1 <Power input> DC_4P Plug DC_2P -23-... - Page 25 LE-578 User’s Manual The DC_4P and DC_2P are CO-LAY design, support 6 ~ 35V wide voltage input. Note that the DC_4P and ATX do not use at the same time, it will certainly cause damage. DC_4P: ATX12V 4-pin connector Signal...
-
Page 26: Power Output
LE-578 User’s Manual 2.5.2 <Power output> It is supply to the HDD, CD-ROM or other device. If using DC_4P or DC_2P as input, that ATX will be the output. ATX: main power 24-pin connector (As output) Signal Signal PSON 5VSB Note that Maximum output power: 12V/2A, 5V/3A, 3.3V/3A... -
Page 27: Appendix A
LE-578 User’s Manual Appendix A <Flash BIOS> A.1 <Flash tool> The board is based on Insyde BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: LE-578 reflash tool A.2 <Flash BIOS process>... -
Page 28: Appendix B
LE-578 User’s Manual Appendix B <LCD Panel Type select> According your panel, it need to select the correct resolution in the BIOS. If there is no fit your panel type, please feedback for us to make OEM model. Find the setting from Fornt page----->... - Page 29 LE-578 User’s Manual There are 16 resolutions in Panel Number. BIOS panel type selection form (BIOS Version:1.0) Single / Dual channel Single / Dual channel Type Type 640 x 480 1680 x 1050 800 x 600 1920 x 1200 1024 x 768...
-
Page 30: Appendix C
LE-578 User’s Manual Appendix C <Programmable Watch Dog Timer> Timeout value range 1 to 255 Minute and Second Program sample Watchdog timer setup as system reset with 5 second of timeout -o 4E 87 ;enter configuration -o 4E 87 -o 4E 07 -o 4F 08 ;select Logical Device... -
Page 31: Appendix D
LE-578 User’s Manual Appendix D <Programmable GPIO > The GPIO’ can be programmed with the MS-DOS debug program using simple IN/OUT commands. GPIO -o 4E 87 ;enter configuration -o 4E 87 -o 4E 07 -o 4F 07 ;select Logical Device... -
Page 32: Appendix E
LE-578 User’s Manual Appendix E <SuperIO Setting> Press Delete to enter BIOS Setup menu On Front Page screen, click Setup Utility On Advanced screen, click SIO NUVOTON6106D There are 5 functions in the page. 1.WDT(Watch Dog Timer) 2.Power Loss setting 3.Hardware monitor... -
Page 33: Appendix F
LE-578 User’s Manual Appendix F <RS485 auto flow Setting> Press Delete to enter BIOS Setup menu On Front Page screen, click Setup Utility On Advanced screen, click SIO NUVOTON6106D You can change RS232 /RS485 in Serial Port1/2 configuration -32-... -
Page 34: Contact Information
Taiwan Commate computer Inc. 19F., NO.94, Sec. 1, Xintai 5 Rd., Xizhi Dist., New Taipei Address City 22102, Taiwan. +886-2-26963909 +886-2-26963911 Website www.commell.com.tw info@commell.com.tw (General infomation) E-mail tech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan Commate computer Inc. -33-...
