LE-37F User’s Manual Copyright Copyright 2016, all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
LE-37F User’s Manual Packing List: Please check the package content before you starting using the board. 1 x LE-37F Motherboard (include heat spreader) 1 x SATA CABLE 1 x PS/2 Keyboard & Mouse cable (OALSATA3-H10-L35 / 1040523) (OALPS2/KM / 1040131)

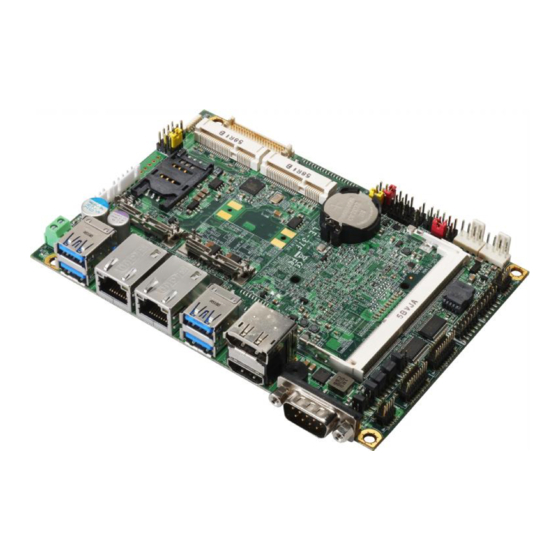

LE-37F User’s Manual Chapter 1 <Introduction> 1.1 <Product Overview> LE-37F is 3.5 inch Motherboard which is design based on Intel® Pentium® Processor N3000 Series Processor(Braswell SoC), delivering outstanding compute, graphical, and media performance while operating in an extended range of thermal conditions. The SoC bases on the Silvermont microarchitecture, utilizing Intel’s industry-leading 14nm process...
LE-37F User’s Manual 1.2 <Product Specification> System Intel® Braswell Series Processor N3710/X5-E8000, Processor FCBGA1170 package Chipset Braswell SoC 1 x DDR3L DIMM 1600 MHz up to 8GB, Support Non-ECC, Memory unbuffered memory only Watchdog Timer Generates a system reset with internal timer for 1min/s ~ 255min/s...
LE-37F User’s Manual 2.2 <Jumper Location and Reference> JVLCD JRTC JMSATA 2.2.1 <Jumper list> Jumper Function Power mode select JRTC CMOS Normal/Clear Setting JVLCD Panel Voltage Setting JMSATA MiniCard mSATA Setting 2.2.2 <Clear CMOS and Power on type selection> JRTC...
LE-37F User’s Manual 2.3 <Installing the Memory> In the process, the board must be powered off. 1. Put the memory tilt into the slot. Note the Memory notch key aligned slot key. 2. Then press down till lock into the mounting notch.
LE-37F User’s Manual 2.4 <I/O interface> 2.4.1 <Serial ATA interface> CN_SATA: SATA3 10-pin connector CN_SATA1 CN_SATA2 Signal CN_SATA1/2 2.4.2 <Ethernet interface> The board provide I210-AT Gigabit Ethernet which supports WOL on rear I/O. Find the setting from Advanced-----> Power Management-- Wake on LAN Enable [Disable] (default)
Page 15
LE-37F User’s Manual CN_LVDS JVLCD CN_INV DISPLAY PORT HDMI JVLCD: LVDS panel power select jumper Jumper settings Function 3.3V (Default) Effective patterns of connection: 1-2 / 3-4 / 5-6 Other may cause damage -14-...
Page 16
LE-37F User’s Manual CN_LVDS: LVDS 40-pin connector ( Model: HIROSE DF13-40DP-1.25V compatible Signal Signal Set by JVLCD Set by JVLCD Detect (Active low) A_LVDS_0- B_LVDS_0- A_LVDS_0+ B_LVDS_0+ A_LVDS_1- B_LVDS_1- A_LVDS_1+ B_LVDS_1+ A_LVDS_2- B_LVDS_2- A_LVDS_2+ B_LVDS_2+ A_LVDS_CLK- B_LVDS_3- A_LVDS_CLK+ B_LVDS_3+ A_LVDS_3-...
LE-37F User’s Manual 2.4.4 <Serial Port interface> CN_COM5/6 JCSEL1 CN_COM3/4 JCSEL2 CN_COM2 COM1 COM1: RS232 DB9 connector Signal Signal Set by JP1 CN_COM2: RS232/422/485 10-pin header (Pitch 1.27mm x 2.54mm) Signal Signal DCD/ 422TX-/ 485- RXD/ 422TX+/ 485+ TXD/ 422RX+...
Page 18
LE-37F User’s Manual CN_COM3/4,5/6: RS232 20-pin header (Pitch 1.27mm x 2.54mm) Signal Signal DCD1 RXD1 TXD1 DTR1 DSR1 RTS1 CTS1 DCD2 RXD2 TXD2 DTR2 DSR2 RTS2 CTS2 JP1, JP2: COM1, COM2 pin-9 setting Jumper settings Function RI (Default) Effective patterns of connection: 1-2 / 3-4 / 5-6...
LE-37F User’s Manual 2.4.5 <USB interface> CN_USB USB3.0 USB3.0 CN_USB: Front panel USB2.0 10-pin header (Pitch 2.54mm) Signal Signal 5VSB 5VSB DATA0- DATA1- DATA0+ DATA1+ Install USB3.0 Driver If you want to use CN_USB in Windows7. 2.4.6 <Audio interface> CN_AUDIO...
LE-37F User’s Manual CN_AUDIO: Front panel audio 10-pin header (Pitch 1.27mm x 2.54mm) Signal Signal MIC_L MIC_R FP_OUT_R MIC_DETECT SENSE FP_OUT_L FP_OUT_DETECT 2.4.7 <Expansion slot> JMSATA MINI_CARD1 support mSATA by JMSATA MINI_CARD2 connect SIM card with 3G module. JMSATA: Setting MINI_CARD1 to support PCIe/mSATA...
LE-37F User’s Manual CPUFAN: CPU cooler fan 4-pin connector Signal Sensor Control SYSFAN: System cooler fan 4-pin connector Signal Sensor Control 2.5 <Power supply> 2.5.1 <Power input> DC_IN DC_IN: Terminal Block 2-pin power connector Signal Signal Power in The power support 9~24V wide voltage input.
LE-37F User’s Manual Appendix A <Flash BIOS> A.1 BIOS Auto Flash Tool The board is based on Phoenix BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: LE-37F reflash tool A.2 Flash Method...
Page 26
LE-37F User’s Manual then input the “fs0:” command to switch to the root of the USB flash drive. 4. Type the ” fpt64.efi -y -f xxxxx.bin” command to start flash BIOS processes. ( xxx.bin means the BIOS file that you want to update) 5.
LE-37F User’s Manual Appendix B <LCD Panel Type select> According your panel, it need to select the correct resolution in the BIOS. If there is no fit your panel type, please feedback for us to make OEM modol. Find the setting from Advanced----->...
LE-37F User’s Manual Appendix C <Programmable Watch Dog Timer> Timeout value range 1 to 255 Minute and Second Program sample Watchdog timer setup as system reset with 5 second of timeout -o 4E 87 ;enter configuration -o 4E 87 -o 4E 07 -o 4F 08 ;select Logical Device...
Taiwan Commate computer Inc. 19F., NO.94, Sec. 1, Xintai 5 Rd., Xizhi Dist., New Taipei Address City 22102, Taiwan. +886-2-26963909 +886-2-26963911 Website www.commell.com.tw info@commell.com.tw (General infomation) E-mail tech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan Commate computer Inc. -28-...
