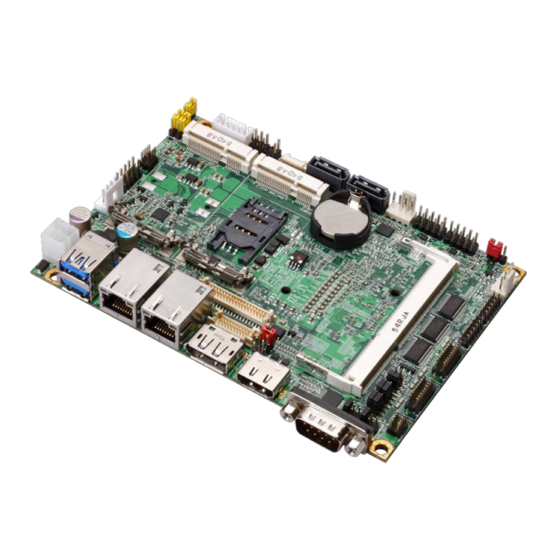

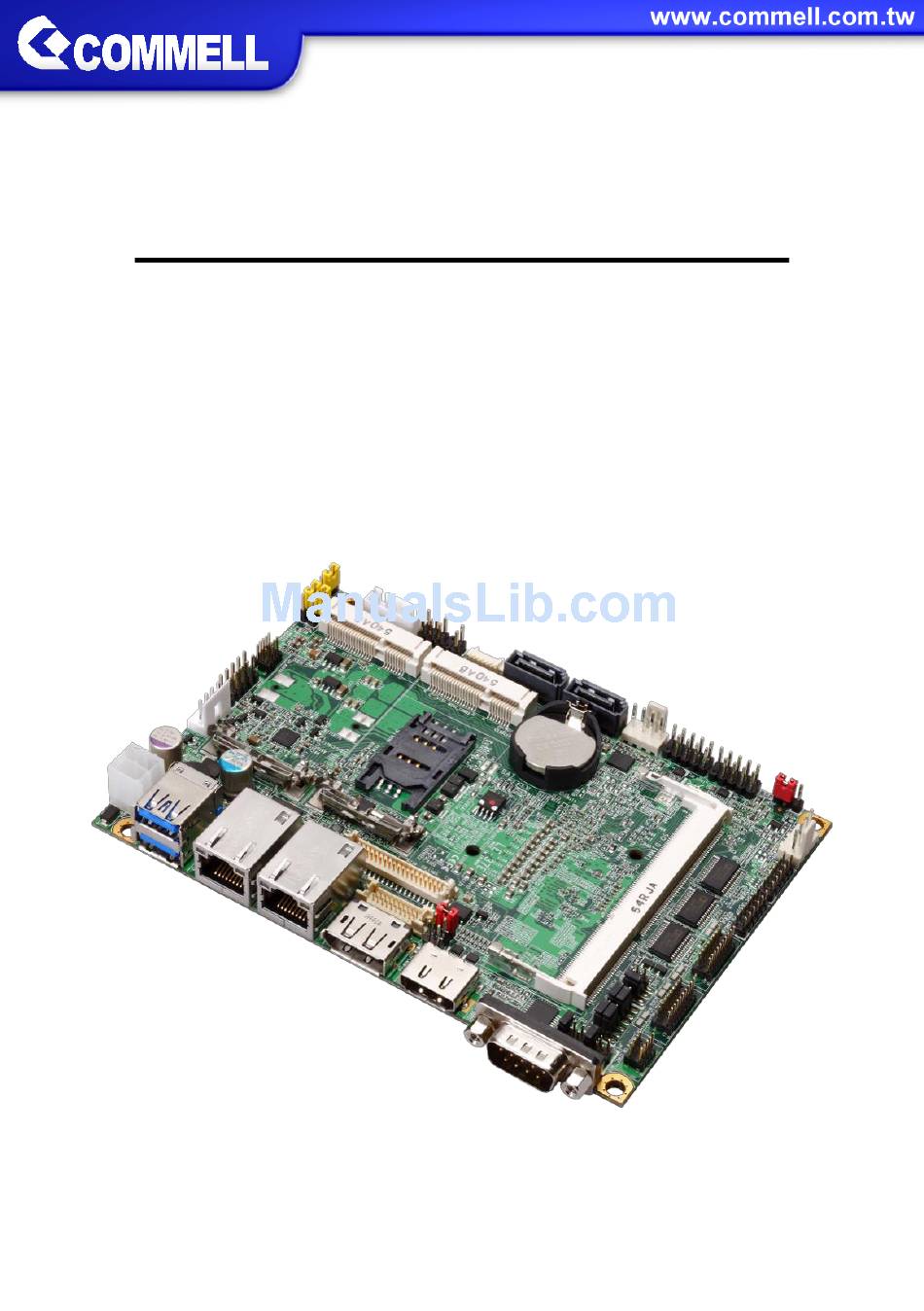

- Page 1 LE-37E 3.5 inch Motherboard User’s Manual Edition 1.4 2016/07/04...
- Page 2 LE-37E User’s Manual Copyright Copyright 2015, all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
-
Page 3: Packing List
LE-37E User’s Manual Packing List: Please check the package content before you starting using the board. 1 x LE-37E 3.5 inch Motherboard (Include Heat Sink) Heat Sink : OHS-A / 2181110012) 1 x SATA cable (OALSATA3-L / 1040529) 1 xUSB2.0 cable... -
Page 4: Table Of Contents
LE-37E User’s Manual Index Chapter 1 <Introduction> ..................4 1.1 <Product Overview> ................. 4 1.2 <Product Specification> ................5 1.3 <Mechanical Drawing> ................6 1.4 <Block Diagram> ..................7 Chapter 2 <Hardware setup> ................8 2.1 <Connector Location and Reference> ............. 8 2.1.1 <Internal connectors list>... -
Page 5: Chapter 1
1.1 <Product Overview> Generation Intel® Core™ U-series i7, LE-37E is 3.5 inch Motherboard which supports 5 i5, i3, Celeron Mobile Processor with Wildcat Point PCH-LP, integrated HD Graphics, DDR3L memory, Realtek High Definition Audio, Intel Gigabit LAN, Serial ATA3 with AHCI function for a system. -
Page 6: Product Specification
LE-37E User’s Manual 1.2 <Product Specification> System Intel® Broadwell/Haswell Core™ i7, i5, i3, Celeron U-series Processor Processor FCBGA1168 with MCP Chipset Wildcat Point-LP 1 x DDR3L SO-DIMM 1333/1600 MHz up to 8GB Memory Support Non-ECC, unbuffered memory only Watchdog Timer... -
Page 7: Mechanical Drawing
LE-37E User’s Manual 1.3 <Mechanical Drawing>... -
Page 8: Block Diagram
LE-37E User’s Manual 1.4 <Block Diagram> DDR3L PTN3460 Channel A SO-DIMM 1 x LVDS PCIe x1 I218-LM 1 x DisplayPort PCIe x1 Gen Processor I210-AT 1 x DVI-D PCIe x1 1 x HDMI MiniCard1 SATA3 1 x DVI-D PCIe x1... -
Page 9: Chapter 2
LE-37E User’s Manual Chapter 2 <Hardware setup> 2.1 <Connector Location and Reference> HDMI/CN_DVI1 DisplayPort LAN1 COM1 CN_DVI2 LAN2 DC_IN CN_COM2 CN_LVDS CN_COM3/4 DC_OUT CN_COM5/6 SO-DIMM JFRNT CN_DIO SIMM CN_AUDIO CN_LPC MINI_CARD1 MINI_CARD2 SYSFAN CN_USB1 SATA3-1 SMBUS CN_INV CN_USB2 CPUFAN SATA3-2... -
Page 10: Internal Connectors List
LE-37E User’s Manual 2.1.1 <Internal connectors list> Connector Function SO-DIMM 204-pin DDR3L SO-DIMM slot SATA3-1/2 7-pin Serial ATA3 connector CN_AUDIO 5 x 2-pin audio pin header CN_LPC 6 x 2-pin LPC pin header CN_DIO 6 x 2-pin General Purpose In/Out pin header... -
Page 11: Jumper Location And Reference
LE-37E User’s Manual 2.2 <Jumper Location and Reference> JVLCD JCSEL1 JCSEL2 JMSATA1 JMSATA2 JRTC 2.2.1 <Jumper list> Jumper Function Power mode select JRTC CMOS Normal/Clear Setting JVLCD Panel Voltage Setting JMSATA1/2 MiniCard1/2 mSATA Setting JCSEL1/2 CN_COM2 RS232/422/485 select JP1/2 COM1 and CN_COM2 9-pin setting 2.2.2 <Clear CMOS and Power on type selection>... -
Page 12: Installing The Memory
LE-37E User’s Manual 2.3 <Installing the Memory> In the process, the board must be powered off. 1. Put the memory tilt into the slot. Note the Memory notch key aligned slot key. 2. Then press down till lock into the mounting notch. -
Page 13: I/O Interface
LE-37E User’s Manual 2.4 <I/O interface> 2.4.1 <Serial ATA interface> Support RAID0 and 1. SATA3-1 SATA3-2 2.4.2 <Ethernet interface> The board provide I210-AT and I218-LM Gigabit Ethernet which supports WOL on rear I/O. It supports Intel® AMT 10.0 feature. (Note that the CPU must support vPro technology, ex: i7-5650U) -
Page 14: Display Interface
LE-37E User’s Manual 2.4.3 <Display interface> Based on the 5th/4th Gen CPU with built-in HD Graphics, the DisplayPort up to 3840x2160 @ 60Hz, the HDMI resolution up to 2560x1600 @ 60Hz and LVDS (PTN3460) up to 1920x1200 @ 60Hz support 18/24-bit color depth and dual channel. - Page 15 LE-37E User’s Manual CN_LVDS: LVDS 40-pin connector ( Model: HIROSE DF13-40DP-1.25V compatible Signal Signal Set by JVLCD Set by JVLCD Detect (Active low) A_LVDS_0- B_LVDS_0- A_LVDS_0+ B_LVDS_0+ A_LVDS_1- B_LVDS_1- A_LVDS_1+ B_LVDS_1+ A_LVDS_2- B_LVDS_2- A_LVDS_2+ B_LVDS_2+ A_LVDS_CLK- B_LVDS_3- A_LVDS_CLK+ B_LVDS_3+ A_LVDS_3-...
-
Page 16: Serial Port Interface
LE-37E User’s Manual 2.4.4 <Serial Port interface> COM1 CN_COM2 JCSEL1 CN_COM3/4 CN_COM5/6 JCSEL2 COM1: RS232 DB9 connector Signal Signal Set by JP2 CN_COM2: RS232/422/485 10-pin header (Pitch 1.27mm x 2.54mm) Signal Signal DCD/ 422TX-/ 485- RXD/ 422TX+/ 485+ TXD/ 422RX+... - Page 17 LE-37E User’s Manual COM3/4,5/6: RS232 20-pin header (Pitch 1.27mm x 2.54mm) Signal Signal DCD1 RXD1 TXD1 DTR1 DSR1 RTS1 CTS1 DCD2 RXD2 TXD2 DTR2 DSR2 RTS2 CTS2 JP1, JP2: COM1, COM2 pin-9 setting Jumper settings Function RI (Default) Effective patterns of connection: 1-2 / 3-4 / 5-6...
-
Page 18: Usb Interface
LE-37E User’s Manual 2.4.5 <USB interface> CN_USB1 USB3.0 CN_USB2 CN_USB1/2: Front panel USB2.0 10-pin header (Pitch 2.54mm) Signal Signal 5VSB 5VSB DATA0- DATA1- DATA0+ DATA1+ 2.4.6 <Audio interface> CN_AUDIO -17-... -
Page 19: Expansion Slot
LE-37E User’s Manual CN_AUDIO: Front panel audio 10-pin header (Pitch 1.27mm x 2.54mm) Signal Signal MIC_L MIC_R FP_OUT_R MIC_DETECT SENSE FP_OUT_L FP_OUT_DETECT 2.4.7 <Expansion slot> JMSATA1 JMSATA2 MINI_CARD1 MINI_CARD2 MINI_CARD2 have some special design to compatible our MiniPCIe card (ex: MPX-574D2, MPX-210D2 etc) and MINI_CARD1/2 supports mSATA set by JMSATA1/2. -
Page 20: Front Panel Switch And Indicator
LE-37E User’s Manual 2.4.8 <Front panel switch and indicator> JFRNT JFRNT: Front panel switch and indicator 14-pin header (Pitch 2.54mm) Signal Signal Power_ON- Power_ON+ Speaker- Speaker+ HDD_LED- HDD_LED+ Power_LED- Power_LED+ Reset+ Reset- 2.4.9 <Other interface> CN_DIO CN_LPC SYSFAN CPUFAN SMBUS... - Page 21 LE-37E User’s Manual When using GPIO function, please note: As Output: Open-drain, most applications need use an external pull up resistor. (If not may cause damage) As Input: TTL-level. GPIO DC characteristics Parameter UNIT Conditions Input Low Voltage Input High Voltage...
- Page 22 LE-37E User’s Manual SMBUS: SMBus 5-pin connector Signal SMBDAT SMBCLK CPUFAN: CPU cooler fan 4-pin connector Signal Sensor Control SYSFAN: System cooler fan 4-pin connector Signal Sensor Control -21-...
-
Page 23: Power Supply
LE-37E User’s Manual 2.5 <Power supply> 2.5.1 <Power input> DC_IN DC_IN: ATX12V 4-pin power connector Signal Signal 9~24V Power input 9~24V Power input 2.5.2 <Power output> DC_OUT DC_OUT: SATA power 4-pin connector Signal -22-... -
Page 24: Appendix A
LE-37E User’s Manual Appendix A <Flash BIOS> A.1 <Flash tool> The board is based on Phoenix BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: http://www.commell.com.tw/Download/BIOS/FPT10.rar The tool’s file name is “fpt.exe”, it’s the utility that can write the data into the BIOS flash chip and update the BIOS. -
Page 25: Appendix B
LE-37E User’s Manual Appendix B <Installation driver Notes> B.1 <iAMT(ME) driver> Before installing, it need to install Microsoft Hotfix KB2685611 first for Win7 32/64 bit. More information please refer https://www.microsoft.com/en-us/download/details.aspx?id=38423 B.2 <USB3.0 driver> Before Win7 install the USB3.0 driver or use in Win8 and Win8.1, xHCI needs to be enabled in the BIOS. -
Page 26: Appendix C
LE-37E User’s Manual Appendix C <LCD Panel Type select> According your panel, it need to select the correct resolution in the BIOS. If there is no fit your panel type, please feedback for us to make OEM modol. BIOS panel type selection form (BIOS Version:1.0) -
Page 27: Appendix D
LE-37E User’s Manual Appendix D <Programmable GPIO > The GPIO’ can be programmed with the MS-DOS debug program using simple IN/OUT commands. The DC characteristics please refer to GPIO paragraph (Page20). GPIO -o 4E 87 ;enter configuration -o 4E 87... -
Page 28: Appendix E
LE-37E User’s Manual Appendix E <Programmable Watch Dog Timer> Timeout value range 1 to 255 Minute and Second Program sample Watchdog timer setup as system reset with 5 second of timeout -o 4E 87 ;enter configuration -o 4E 87 -o 4E 07 -o 4F 08 ;select Logical Device... -
Page 29: Appendix F
LE-37E User’s Manual Appendix F <SATA RAID function setting> When use RAID function, it need to enter the BIOS set RAID mode first. [Advanced] > [HDD Configuration] > [Interface Combination] > [RAID] At boot time, press <CTRL + I> to enter the RAID configuration menu. -
Page 30: Appendix G
LE-37E User’s Manual Appendix G <Heat Sink Note> According the Heat sink drawing, the screw hole size in the four corners is M3 and depth 4mm, and consider the board thickness is 1.6mm, please use copper pillars that thread length is 5mm to fix chassis. -
Page 31: Contact Information
Taiwan Commate computer Inc. 19F., NO.94, Sec. 1, Xintai 5 Rd., Xizhi Dist., New Taipei Address City 22102, Taiwan. +886-2-26963909 +886-2-26963911 Website www.commell.com.tw info@commell.com.tw (General infomation) E-mail tech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan Commate computer Inc. -30-...
