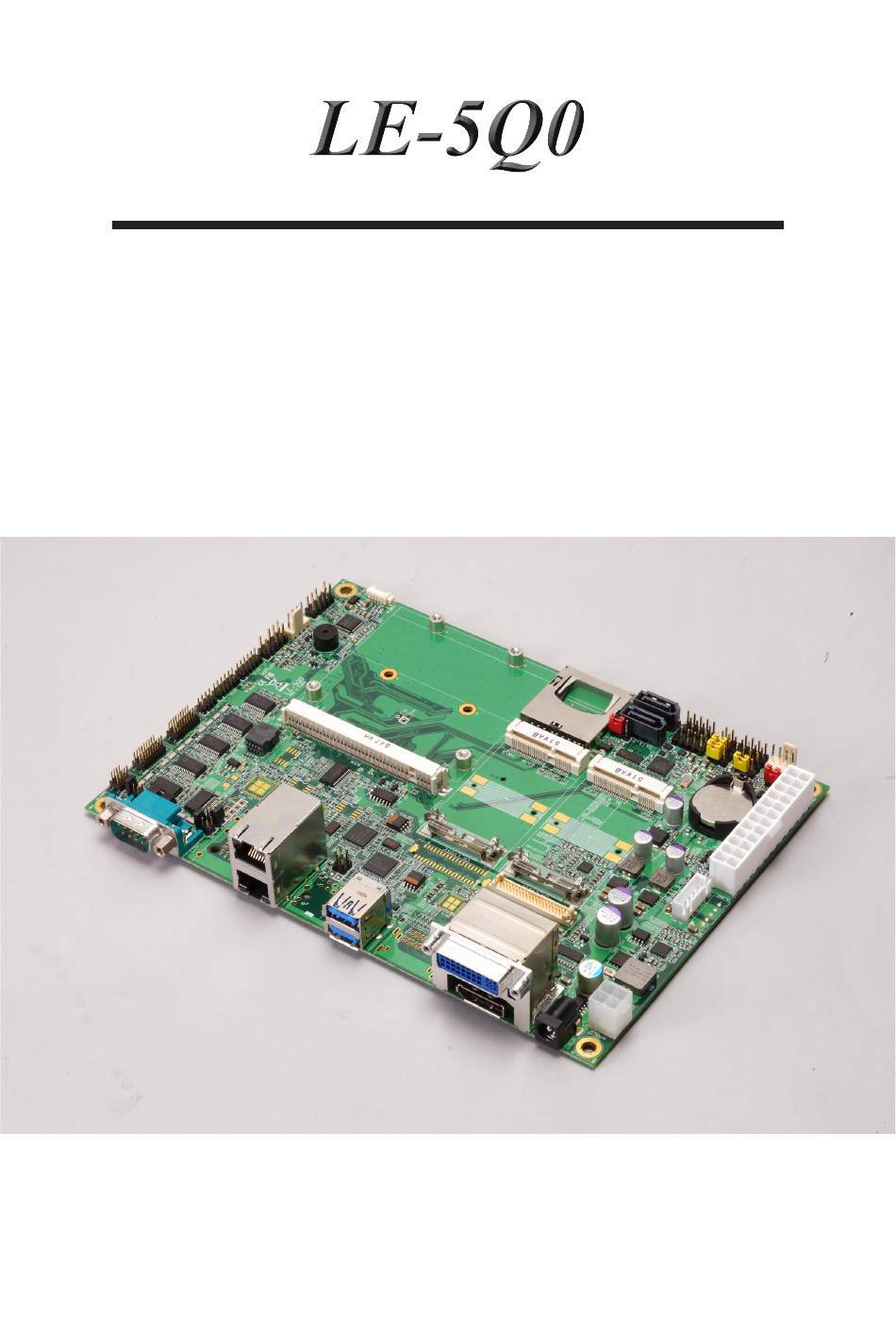

- Page 1 Qseven Carrier Board User's Manual Edition 1.0 2015/08/11...
- Page 2 ..Your Industrial Computer Partner LE-5Q0 Series User’s Manual www.commell.com.tw Copyright Copyright 2014, all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products.This document contains proprietary information and protected by copyright.
- Page 3 ..Your Industrial Computer Partner LE-5Q0 Series User’s Manual www.commell.com.tw Audio Cable x 1 PS/2 Keyboard & Mouse Cable x 1 OALPJ-HD-NB (1040121) (OALPS2/KM)/ (1040131) Power Cable x 1 OALATX-P3S2 (1040058)
-
Page 4: Table Of Contents
..Your Industrial Computer Partner LE-5Q0 Series User’s Manual www.commell.com.tw INDEX Chapter 1 <Introduction> ....................5 1.1<Product Specification> ..................5 1.2 <Mechanical Drawing> ..................7 1.3 <Block Diagram> ....................8 Chapter 2 <Hardware Setup> ..................9 2.1 <Connector Location> ..................9 2.2 <Jumper Location & Reference> ..............10 2.3 <Connector Reference>... - Page 5 ..Your Industrial Computer Partner LE-5Q0 Series User’s Manual www.commell.com.tw 2.13<Power Supply and Fan Interface > ............... 30 2.13.1 <Power Input> ..................30 2.13.2 <Fan connector> ..................31 2.14 <Switch and Indicator> .................. 33 Appendix A <I/O Port Pin Assignment> ..............34 A.1 <Serial ATA Port>...
-
Page 6: Chapter 1
..Your Industrial Computer Partner LE-5Q0 Series User’s Manual www.commell.com.tw Chapter 1 <Introduction> <Product Specification> Form Factor 5.25" Qseven Carrier Board Audio Features Realtek ALC262 High Definition Audio Codec QSEVEN Base on Qseven Spezification Rev. 2.0 Support 1.8V / 3.3V (Default 1.8V) - Page 7 ..Your Industrial Computer Partner LE-5Q0 Series User’s Manual www.commell.com.tw Internal I/O connector Two connectors for four USB 2.0 ports (USB2.0 use USB_P2 signal and transfer to 4-Port Hub by usb4604) One connector for an RS232/422/485 serial port (CN_COM2) Two connector for four RS232 serial port (CN_COM3/4 CN_COM5/6)
-
Page 8: Mechanical Drawing
..Your Industrial Computer Partner LE-5Q0 Series User’s Manual www.commell.com.tw 1.2 <Mechanical Drawing>... -
Page 9: Block Diagram
..Your Industrial Computer Partner LE-5Q0 Series User’s Manual www.commell.com.tw 1.3 <Block Diagram> LE-5Q0... -
Page 10: Chapter 2
..Your Industrial Computer Partner LE-5Q0 Series User’s Manual www.commell.com.tw Chapter 2 <Hardware Setup> 2.1 <Connector Location>... -
Page 11: Jumper Location & Reference
..Your Industrial Computer Partner LE-5Q0 Series User’s Manual www.commell.com.tw 2.2 <Jumper Location & Reference> Jumper Function JRTC CMOS Operating/Clear Setting JVLCD Panel1,2 Voltage Setting Power mode select Com2 Voltage Setting (For Pin 9) Com1 Voltage Setting (For Pin 9) JCSEL1 / JCSEL2... -
Page 12: Connector Reference
..Your Industrial Computer Partner LE-5Q0 Series User’s Manual www.commell.com.tw 2.3 <Connector Reference> 2.3.1 <Internal Connectors> Connector Function Remark Board to board connector 230-pin MXM connector DC_IN DC 6~27V input connector DC_2P DC 6~27V input connector 24-pin power supply connector CN_LVDS 1/2... -
Page 13: Cmos & Atx Setup
..Your Industrial Computer Partner LE-5Q0 Series User’s Manual www.commell.com.tw 2.4 <CMOS & ATX Setup> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values. -
Page 14: Ethernet Interface
..Your Industrial Computer Partner LE-5Q0 Series User’s Manual www.commell.com.tw 2.5 <Ethernet Interface> The board integrates RJ45-2/3/4/5 with Intel I210 Gigabit Ethernet and RJ45-1 with Qseven CPU Module provided , RJ45-2/3/4/5 as the PCI Express bus. The Intel I210 supports triple speed of 10/100/1000 Base-T, with IEEE802.3 compliance and Wake-On-LAN supported. -
Page 15: Lvds
..Your Industrial Computer Partner LE-5Q0 Series User’s Manual www.commell.com.tw 2.6.2 <LVDS> The board provides two 40-pin LVDS connector, with two LCD backlight inverter connector and one jumper for panel voltage setting. Please install LVDS cable before boot up. JVLCD JVLCD... - Page 16 ..Your Industrial Computer Partner LE-5Q0 Series User’s Manual www.commell.com.tw Type: 5-pin LVDS Power Header Description +12V ENABKL Connector: JVLCD Type: 6-pin Power select Header Description LCDVCC (3.3V) LCDVCC (5V) LCDVCC (12V) Default: 1-2 Connector: CN_LVDS1 and CN_LVDS2 Type: onboard 40-pin connector for LVDS connector Connector model: HIROSE DF13-40DP-1.25V or compatible...
- Page 17 ..Your Industrial Computer Partner LE-5Q0 Series User’s Manual www.commell.com.tw To setup the LCD, you need the component below: A panel with LVDS interfaces. An inverter for panel’s backlight power. A LCD cable and an inverter cable. For the cables, please follow the pin assignment of the connector to make a cable, because every panel has its own pin assignment, so we do not provide a standard cable;...
- Page 18 ..Your Industrial Computer Partner LE-5Q0 Series User’s Manual www.commell.com.tw To connect all of the devices well. After setup the devices well, you need to select the LCD panel type in the BIOS. Note: LVDS1 and DP2 can’t be enabled simultaneously LVDS2 and DP3 can’t be enabled simultaneously...
-
Page 19: Integrated Audio Interface
..Your Industrial Computer Partner LE-5Q0 Series User’s Manual www.commell.com.tw 2.7 <Integrated Audio Interface> The board integrates onboard audio interface with REALTEK ALC262 code, with Intel next generation of audio standard as High Definition Audio, it offers more vivid sound and other advantages than former HD audio compliance. -
Page 20: Usb Interface
..Your Industrial Computer Partner LE-5Q0 Series User’s Manual www.commell.com.tw 2.8 <USB Interface> LE-5Q0 integrates 2 x USB3.0 / 2.0, The specifications of USB3.0 are listed below: Interface USB3.0 Transfer Rate Up to 5Gb/s Voltage The specifications of USB2.0 are list: Interface USB2.0... - Page 21 ..Your Industrial Computer Partner LE-5Q0 Series User’s Manual www.commell.com.tw Connector: CN_USB1/2 Type: 10-pin (2 x 5) header (pitch = 2.54mm) Description Description VCC (5V) VCC (5V) Data0- Data1- Data0+ Data1+ Ground Ground Ground Connector: JUSBS Type: 3-pin Power select jumper...
-
Page 22: Serial Port
..Your Industrial Computer Partner LE-5Q0 Series User’s Manual www.commell.com.tw 2.9 <Serial Port> The board supports four RS232 serial port and one jumper selectable RS232/422/485 serial ports. The jumper JCSEL1 & JCSEL2 can let you configure the communicating modes for CN_COM2. - Page 23 ..Your Industrial Computer Partner LE-5Q0 Series User’s Manual www.commell.com.tw Setting RS-232 & RS-422 & RS-485 for CN_COM2 Function JCSEL2 JCSEL1 RS-422 RS-485 RS-232 (Default) Connector: CN_COM3/4, CN_COM5/6 Type: 20-pin (2 x 10) header pitch = 2.54x1.27mm Description Description DCD1 RXD1...
- Page 24 ..Your Industrial Computer Partner LE-5Q0 Series User’s Manual www.commell.com.tw Connector: CN_COM7 Type: 9-pin D-sub male connector on bracket for CN_COM7 CN_COM7 with Qseven CPU Module provided Description Description Jumper: JP1/JP2 (COM1/CN_COM2) Type: onboard 6-pin header Power Mode JP1/2 Pin 9 with +5V Power...
-
Page 25: Pcie Mini Card And Sim Interface
..Your Industrial Computer Partner LE-5Q0 Series User’s Manual www.commell.com.tw 2.10 <PCIE Mini Card and SIM Interface> The board provides two PCIE mini card sockets and a SIM socket. MINI_CARD is the Mini-PCIe slot for half / full size Mini-PCIe cards and Mini Card2 supports mSATA. - Page 26 ..Your Industrial Computer Partner LE-5Q0 Series User’s Manual www.commell.com.tw MINI MINI CARD2 CARD1 JMSATA -25-...
-
Page 27: Sim Setup
..Your Industrial Computer Partner LE-5Q0 Series User’s Manual www.commell.com.tw 2.10.1 <SIM Setup> Step1. SIM card holder is marked by circle. Slide the cap toward OPEN direction. Step 2. Make sure that the cap is now at the OPEN position. Step 3. -
Page 28: Gpio And Smbus Interface
..Your Industrial Computer Partner LE-5Q0 Series User’s Manual www.commell.com.tw 2.11 <GPIO and SMBUS Interface> The board provides a programmable 8-bit digital I/O interface; you can use this general purpose I/O port for system control like POS or KIOSK. The GPIO is an... - Page 29 ..Your Industrial Computer Partner LE-5Q0 Series User’s Manual www.commell.com.tw Connector: CN_SMBUS Description VCC(+5V) -SMBALT SMBDATA SMBCLK Ground Type: 5-pin header for SMBUS Ports CN_DIO SMBUS -28-...
-
Page 30: Canbus And I2C Interface
..Your Industrial Computer Partner LE-5Q0 Series User’s Manual www.commell.com.tw 2.12 <CANBus and I2C Interface> 2.12.1 <CANBus> Connector: CN_CANBus Type: 4-pin header for CANBus Ports Description VCC(+5V) CAN_TX CAN_RX Ground Type: 8-pin header for I2C Ports 2.12.2 < I2C> Connector: CN_I2C... -
Page 31: Power Supply And Fan Interface
..Your Industrial Computer Partner LE-5Q0 Series User’s Manual www.commell.com.tw 2.13<Power Supply and Fan Interface > 2.13.1 <Power Input> The board requires Standard 24-pin ATX power supply or 6~27V full range DC Input or 6~27V full range adapter input , for the input current, please take a reference of the power consumption report on appendix. -
Page 32: Fan Connector
..Your Industrial Computer Partner LE-5Q0 Series User’s Manual www.commell.com.tw DC_2P DC_IN 2.13.2 <Fan connector> The board provides one 4-pin fan connectors supporting fan for CPU cooler and one 4-pin cooler fan connectors for system. Connector: CPUFAN Type: 4-pin fan wafer connector... - Page 33 ..Your Industrial Computer Partner LE-5Q0 Series User’s Manual www.commell.com.tw CPUFAN SYSFAN -32-...
-
Page 34: Switch And Indicator
..Your Industrial Computer Partner LE-5Q0 Series User’s Manual www.commell.com.tw 2.14 <Switch and Indicator> The JFRNT provides front control panel of the board, such as power button, reset and beeper, etc. Please check well before you connecting the cables on the chassis. -
Page 35: Appendix A
..Your Industrial Computer Partner LE-5Q0 Series User’s Manual www.commell.com.tw Appendix A <I/O Port Pin Assignment> A.1 <Serial ATA Port> Connector: SATA1/2 Type: 7-pin wafer connector RSATA_ RSATA_ RSATA_ RSATA_ TXP1 TXN1 RXN1 RXP1 A.2 <LAN Port> Connector: RJ45 Type: RJ45 connector with LED on bracket... -
Page 36: A.4 < Sdio / Mmc Socket
..Your Industrial Computer Partner LE-5Q0 Series User’s Manual www.commell.com.tw A.4 < SDIO / MMC socket > Connector: SDCard Type: 13-pin header for SDIO Port Description Description SD_D3 SD_CMD Ground +3.3V SD_CLK Ground SD_D0 SD_D1 SD_D2 SDIO_WP SDIO_CD# Ground Ground Connector: SDCard... -
Page 37: Contact Information
Taiwan Commate Computer Inc. Address 19F., No.94, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei City 22102, Taiwan +886-2-26963909 +886-2-26963911 Website http://www.commell.com.tw E-Mail info@commell.com.tw (General Information) tech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan commate computer Inc. -36-...
