- Page 1 LE-380 3.5 inch Miniboard User’s Manual 2012/07/06 Version:1.2...
- Page 3 LE-380 User’s Manual Copyright Copyright 2012. All rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
-
Page 4: Packing List
LE-380 User’s Manual Packing List: Please check the package content before you starting using the board. Hardware: LE-380 3.5“ Miniboard x 1 Cable Kit: DF14 10Pin for SATA x 2 DC Power Cable x 1 OALDC-A (OALSATA7-H10) Audio Cable x 1... - Page 5 LE-380 User’s Manual Index Chapter 1 <Introduction> ................. 6 1.1 <Product Overview>....................6 1.2 <Product Specification> ..................7 1.3 <Mechanical Drawing> ..................9 1.4 <Block Diagram> ....................10 Chapter 2 <Hardware Setup>................. 11 2.1 <Connector Location> ..................11 2.2 <Jumper Reference>....................13 2.3 <Connector Reference> ..................14 2.3.1 <Internal Connector>...
- Page 6 LE-380 User’s Manual Appendix A <I/O Port Pin Assignment> ............36 A.1 <SATA Port> ..................... 36 A.2 <IrDA Port>......................36 A.3 <SMBUS Port> ....................36 A.4<LPT Port>......................37 A.5 < CRT Port > ...................... 37 A.6 <Serial Port>....................... 38 A.7 <LAN Port>......................38 A.8 <LAN LED Port>....................
- Page 7 LE-380 User’s Manual (This page is left for blank)
-
Page 8: Chapter 1

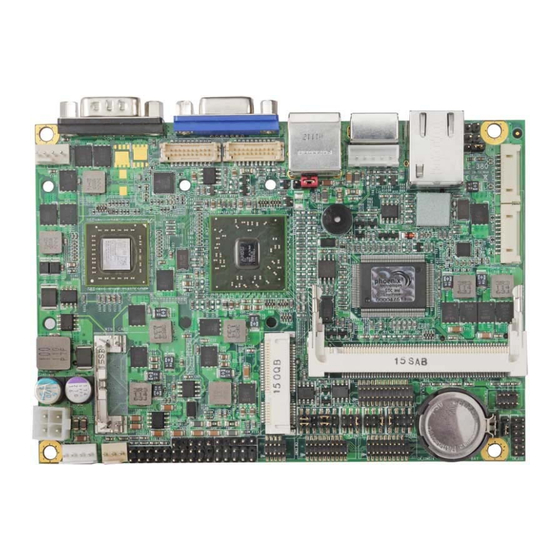

Chapter 1 <Introduction> 1.1 <Product Overview> LE-380 is the 3.5 inches embedded motherboard with AMD G-T56N platform, with onboard VGA, Realtek ALC888 HD Codec audio, Giga LAN interface. Based on the AMD G-T56N Processor , the board provides many advanced features for reduced power consumption. -
Page 9: Product Specification
LE-380 User’s Manual 1.2 <Product Specification> General Specification Form Factor 3.5 inch miniboard AMD G-Series T56N Processor 1.65GHz Memory 1 x 204-pin DDR3 1066/1333 SO-DIMM SDRAM up to 4G Chipset AMD A55E FCH Watchdog Timer System reset programmable watchdog timer with 1 ~ 255 sec./min. - Page 10 LE-380 User’s Manual Mini PCI Card 1 x Mini PCI Card socket Power and Environment Power Requirement DC 5V~24V input with onboard 4-pin connector Dimension 146 (L) x 101(H) mm Temperature Operating within 0 ~ 60℃ Storage within -20 ~ 85℃...
-
Page 11: Mechanical Drawing
LE-380 User’s Manual 1.3 <Mechanical Drawing>... -
Page 12: Block Diagram
LE-380 User’s Manual 1.4 <Block Diagram> DDR3 SODIMM 4GB max. G-T56N CRT / DVI / LVDS HD Audio Mini card socket A55E 6 x USB port Mini PCI socket 2 x SATA & 1 x CFast Card PS2 KB/MS Giga LAN... -
Page 13: Chapter 2
LE-380 User’s Manual Chapter 2 <Hardware Setup> 2.1 <Connector Location> CN_SATA MINI_PCI CPUFAN CN_LVDS CN_DVI CN_INV CN_COM2 DC_OUT CN_IR CN_DIO CN_COM5/6 SYSFAN CN_SMBUS CN_COM3/4 DC_IN CN AUDIO CN_USB1/2 CN_LPT MINI_CARD JFRNT... - Page 14 LE-380 User’s Manual CFast Card SO-DIMM LE-380 RJ45 COM1...
-
Page 15: Jumper Reference
LE-380 User’s Manual 2.2 <Jumper Reference> Jumper Function JRTC CMOS Operating/Clear Setting AT/ATX Mode Setting JCSEL1/2 COM2 RS232/422/485/IrDA Mode Setting Com4 Voltage Setting(For Pin 9) Com3 Voltage Setting(For Pin 9) JVLCD LCD Panel Voltage Setting JRTC JCSEL1 JCSEL2... -
Page 16: Connector Reference
LE-380 User’s Manual 2.3 <Connector Reference> 2.3.1 <Internal Connector> Connector Function Remark SO-DIMM 204 -pin DDR3 SO-DIMM SDRAM slot CN_SATA 10-pin SATA Cable connector CFast CFast Card socket MINI_CARD PCIE mini card socket MINI_PCI mini PCI socket CN_LVDS 20 -pin LVDS connector... -
Page 17: Cpu And Memory Setup
LE-380 User’s Manual 2.4 <CPU and Memory Setup> The board provides one 204-pin DDR3 SO-DIMM to support DDR3 1066/1333 memory modules up to 4GB. Only Non-ECC memory is supported. SO-DIMM... - Page 18 LE-380 User’s Manual 2.5 <CMOS & ATX Setup> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, please remove battery to clear (reset) the CMOS to its default values.
- Page 19 LE-380 User’s Manual 2.6 <SATA & CFast Interface> Based on AMD A55E, the board provides one Serial ATAII interfaces with up to 300MB/s of transfer rate. The board has one CFast card socket on the solder side. CN_SATA1 CN_SATA2 CFast...
-
Page 20: Lan Interface
LE-380 User’s Manual 2.8 <LAN Interface> The board integrates with one Intel 82583V Gigabit Ethernet controller. The Intel® 82583V supports triple speed of 10/100/1000Base-T, with IEEE802.3 compliance and Wake-On-LAN supported. -
Page 21: Onboard Display Interface
LE-380 User’s Manual 2.9 <Onboard Display Interface> Based on AMD G-T56N chipset with built-in AMD Radeon HD 6300 series Graphics, the board provides one DB15 connector on real external I/O port, and two 20-pin DVI and LVDS interface with 5-pin LCD backlight inverter connector. The board provides dual display function with clone mode and extended desktop mode for CRT, DVI and LVDS. - Page 22 LE-380 User’s Manual 2.9.2 <Digital Display> The board provides one 20-pin LVDS connector for 18 bit single channel panel, supports up to 1400 x 1050 of resolution, with one LCD backlight inverter connector and one jumper for panel voltage setting.
- Page 23 LE-380 User’s Manual Connector: CN_INV Type: 5-pin Inverter power connector Connector model: JST B5B-XH-A Description +12V LVDS_VARY_BL INV_ON Jumper: JVLCD Type: 3-pin Power select jumper Description +3.3V Default: 2-3 Connector: CN_LVDS Type: onboard 20-pin connector for LVDS connector Connector model: HIROSE DF13-20DP-1.25V...
- Page 24 LCD Installation Guide: Preparing the LE-380, LCD panel and the backlight inverter You would need a LVDS type cable. Panel side...
- Page 25 LE-380 User’s Manual After setup the devices well, you need to select the LCD panel type in the BIOS. The panel type mapping is list below: LE-380 BIOS panel type selection form On board Single channel LVDS 18bit Output format...
- Page 26 LE-380 User’s Manual 2.9.3 <DVI Interface > The board also comes with a DVI interface. Supports up to 1920 x 1200 (WUXGA) of resolution. Type: onboard 20-pin connector for DVI connector Connector model: HIROSE DF13-20DP-1.25V Pin Number Assignment Pin Number Assignment +3.3V...
- Page 27 LE-380 User’s Manual 2.10 <Onboard Audio Interface> The board provides the onboard high definition audio with Realtek ALC888 Connector: CN_AUDIO Type: 10-pin (2 x 5) 1.27mm x 2.54mm-pitch header Description Description MIC2_L AGND MIC2_R AVCC FRO_R MIC2_JD F_IO_SEN FRO_L LINE2_JD...
- Page 28 LE-380 User’s Manual 2.11 <USB2.0 Interface> Based on AMD A55E FCH, the board provides 6 USB2.0 ports. The USB2.0 interface provides up to 480Mbps of transferring rate. Interface USB2.0 Controller A55E Transfer Rate Up to 480Mb/s Output Current 500mA CN_USB1/2...
- Page 29 LE-380 User’s Manual 2.12 <GPIO Interface> The board provides a programmable 8-bit digital I/O interface; you can use this general purpose I/O port for system control like POS or KIOSK. Connector: CN_DIO Type: onboard 2 x 6-pin header, pitch=2.0mm Description...
- Page 30 LE-380 User’s Manual 2.13 <Serial Port Jumper Setting > The board provides two RS232 serial ports, with jumper selectable RS422/485/IrDA for COM2. Connector: CN_COM2 Type: 10-pin (5 x 2) 1.27mm x 2.54mm-pitch header for COM2 Description Description DCD/422TX-/485- SINBTXC SOUTBRXC...
- Page 31 LE-380 User’s Manual Connector: CN_COM3/4 Type: 20-pin (10 x 2) 1.27mm x 2.54mm-pitch header for COM3/4 Description Description HS_DCD1- HS_RXD1 HS_TXD1 HS_DTR1- HS_DSR1- HS_RTS1- HS_CTS1- HS_RI1-(JP2) HS_DCD2- HS_RXD2 HS_TXD2 HS_DTR2- HS_DSR2- HS_RTS2- HS_CTS2- HS_RI2-(JP1) Connector: CN_COM5/6 Type: 20-pin (10 x 2) 1.27mm x 2.54mm-pitch header for COM5/6...
- Page 32 LE-380 User’s Manual 2.14 <Power & FAN Connector > The board requires DC input with 4-pin header, the input voltage range is from 5V to 24V, for the input current, please take a reference of the power consumption report on appendix.
- Page 33 LE-380 User’s Manual 2.14.2 <Power Output> Connector: DC_OUT Type: 4-pin connector for +5V/+12V output Pin Description Pin Description Pin Description Pin Description +12V Ground Ground Note: Maximum output current 12V/1A, 5V/1A 2.14.3 <Fan Connector> Connector: SYSFAN Type: 3-pin fan wafer connector...
-
Page 34: Indicator And Switch
LE-380 User’s Manual 2.15 <Indicator and Switch> The JFRNT provides front control panel of the board, such as power button, reset and beeper, etc. Please check well before you connecting the cables on the chassis. Connector: JFRNT Type: onboard 10-pin (2 x 5) 2.54-pitch header... - Page 35 LE-380 User’s Manual (This Page is Left For Blank)
-
Page 36: Chapter 3
LE-380 User’s Manual Chapter 3 <BIOS Setup> The motherboard uses the Award BIOS for the system configuration. The Award BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel® x86 and compatible CPU architecture based processors and computers. - Page 37 LE-380 User’s Manual (This Page is Left for Blank)
-
Page 38: Appendix A
LE-380 User’s Manual Appendix A <I/O Port Pin Assignment> A.1 <SATA Port> Connector: SATA1/2 Type: 10-pin header for SATA Port Description Description Ground Ground Ground Ground A.2 <IrDA Port> Connector: CN_IR Type: 5-pin header for SIR Port Description IRRX Ground IRTX A.3 <SMBUS Port>... -
Page 39: A.4
LE-380 User’s Manual A.4<LPT Port> Connector: CN_LPT Type: 26-pin header for LPT Port Description -PSTB AFD- PRD0 ERR- PRD1 INIT- PRD2 SLIN- PRD3 PRD4 PRD5 PRD6 PRD7 ACK- BUSY SLCT A.5 < CRT Port > Connector: CRT Type: 15-pin D-sub female connector on rear panel... -
Page 40: A.7
LE-380 User’s Manual A.6 <Serial Port> Connector: COM1 Type: 9-pin D-sub male connector on rear panel Description Description Ground A.7 <LAN Port> Connector: RJ45 Type: RJ45 connector with LED on rear panel Description TRD0+ TRD0- TRD1+ TRD2+ TRD2- TRD1- TRD3+ TRD3- A.8 <LAN LED Port>... - Page 41 LE-380 User’s Manual Connector: JACT1 Type: 5-pin header for LAN Activity LED connector Description LED- LED+...
-
Page 42: Appendix B
LE-380 User’s Manual Appendix B <Flash BIOS> B.1 BIOS Auto Flash Tool The board is based on Award BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: http://www.phoenix.com/en/home/... -
Page 43: Appendix C
LE-380 User’s Manual Appendix C <System Resources> C.1 <I/O Port Address Map>... - Page 44 LE-380 User’s Manual...
-
Page 45: C.2
LE-380 User’s Manual C.2 <Memory Address Map >... -
Page 46: C.3 < System Irq Resources
LE-380 User’s Manual C.3 < System IRQ Resources >... -
Page 47: Appendix D
LE-380 User’s Manual Appendix D <Programming GPIO’s> The GPIO can be programmed with the MS-DOS debug program using simple IN/OUT commands.The following lines show an example how to do this. GPIO0…..GPIO7 bit0……bit7 -o 2E 87 ;enter configuration. -o 2E 87... -
Page 48: Appendix E
LE-380 User’s Manual Appendix E <Watch Dog timer Setting > The watchdog timer makes the system auto-reset while it stops to work for a period. The integrated watchdog timer can be setup as system reset mode by program. Timeout Value Range... -
Page 49: Appendix F
Audio Device on High Definition Audio Bus ” Please choose ”Install from a list or specific location” 7. Please choose “Search for the best driver in these location” Check “Include this location in the search” then press “Browse” 8. Please select the file location”D:\LE-380\Audio(XP)\XP”... - Page 50 LE-380 User’s Manual 9. Install finish (This Page is Left for Blank)
- Page 51 19F., No.94, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei Address City 22102, Taiwan +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw i nfo@commell.com.tw (General Information) E-Mail t ech@commell.com.tw (Technical Support) Facebook https://www.facebook.com/pages/Taiwan-Commate-Computer-Inc/547993955271899 Twitter https://twitter.com/Taiwan_Commate Commell is our trademark of industrial PC division...
