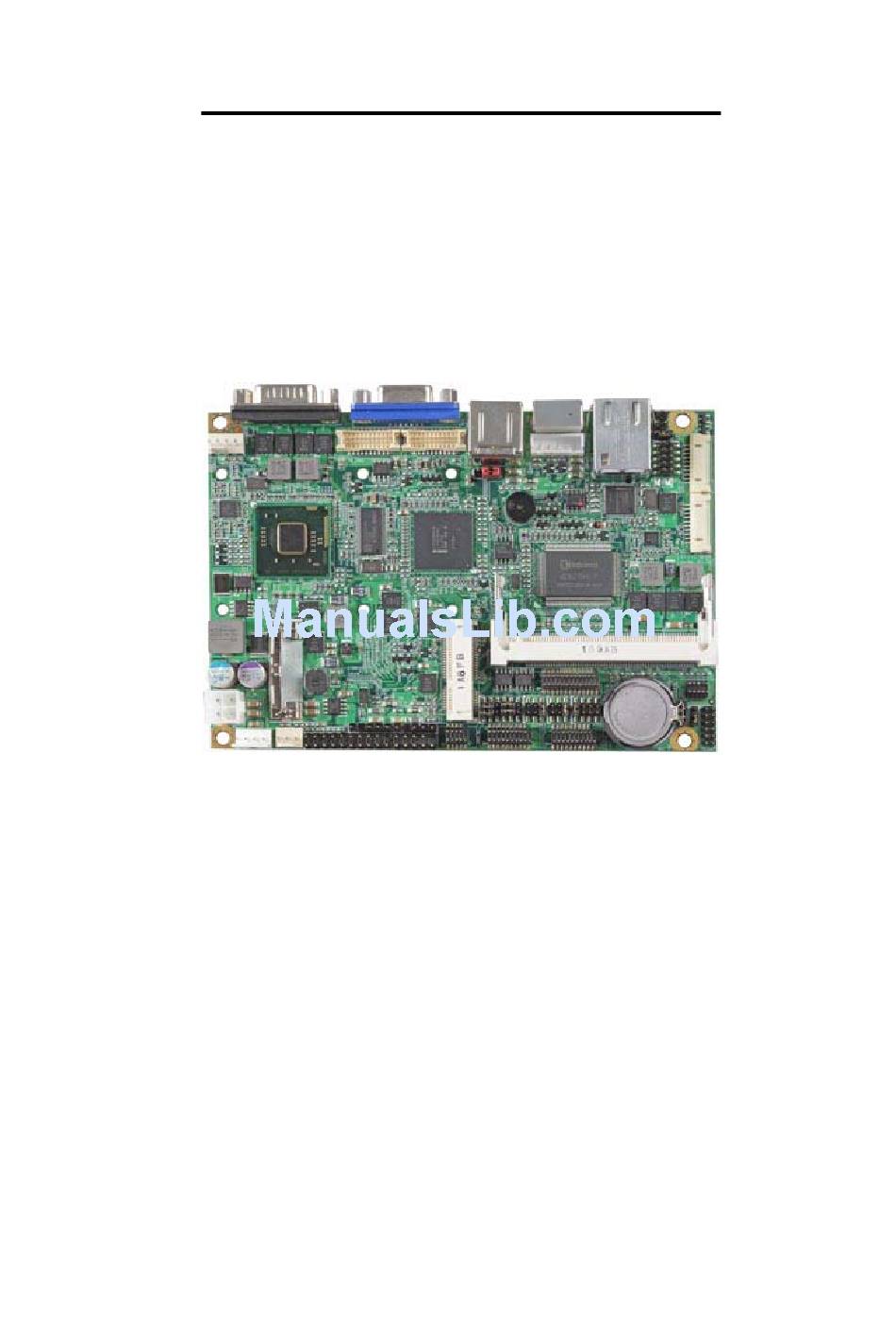

- Page 1 LE-379 3.5 inch Miniboard User’s Manual 2012/07/27 Version:1.0...
- Page 3 LE-379 User’s Manual Copyright Copyright 2012. All rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
-
Page 4: To 3 Power Output Cable Oal4P
LE-379 User’s Manual Packing List: Please check the package content before you starting using the board. Hardware: LE-379 3.5“ Miniboard x 1 Cable Kit: DC Power Cable x 1 (OALDC-A) PS/2 keyboard & mouse cable x 1 (OALPS2/MK) DF14 10Pin for SATA x 2... - Page 5 LE-379 User’s Manual Heatsink x 1 Heatsink x 1 LE-379D/LE-379DS LE-379N/LE-379NS LE-379D5/LE-379D5S (OHS-379) (OHS-376F) Printed Matters: Driver CD x 1 (Including User’s Manual)
- Page 6 LE-379 User’s Manual Index Chapter 1 <Introduction> ................. 7 1.1 <Product Overview> ..................... 7 1.2 <Product Specification> ..................8 1.3 <Mechanical Drawing>..................10 1.4 <Block Diagram> ....................11 Chapter 2 <Hardware Setup>................. 12 2.1 <Connector Location>..................12 2.2 <Jumper Reference>.................... 14 2.3 <Connector Reference>..................
- Page 7 LE-379 User’s Manual Appendix A <I/O Port Pin Assignment> ............36 A.1 <SATA Port>......................36 A.2 <IrDA Port> ......................36 A.3 <SMBUS Port>....................36 A.4<LPT Port> ......................37 A.5 < CRT Port >.......................37 A.6 <Serial Port>.......................38 A.7 <LAN Port> ......................38 A.8 <LAN LED Port> ....................38 Appendix B <Flash BIOS>...
- Page 8 LE-379 User’s Manual (This page is left for blank)
-
Page 9: Chapter 1

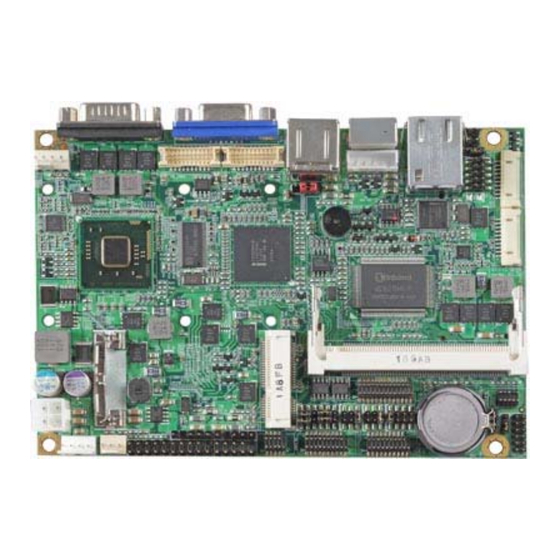

Chapter 1 <Introduction> 1.1 <Product Overview> LE-379 is the Mini-ITX miniboard with Intel® Atom™ CedarTrail Processor with optional D2700 or N2800 platform, Intel® NM10, integrated Intel® GMA 3650 graphics, DDR3 SO-DIMM memory, Realtek ALC888 HD Codec audio and two Intel® 82583V Giga LAN. -
Page 10: Product Specification
LE-379 User’s Manual 1.2 <Product Specification> General Specification Form Factor 3.5 inch miniboard Intel® Atom™ CedarTrail Processor with optional D2700 or N2800, Package type: FCBGA559 Memory 1 x 204-pin DDR3 800/1066 SO-DIMM SDRAM up to 4G Chipset Intel® NM10 Watchdog Timer... - Page 11 LE-379 User’s Manual Power and Environment Power Requirement DC 5V~24V input with onboard 4-pin connector Dimension 146 (L) x 101(H) mm Temperature Operating within 0 ~ 60℃ Storage within -20 ~ 85℃ Ordering Code LE-379D Support Intel® Atom D2700 processor with onboard VGA, LVDS for 18 and 24-bits, Audio, Giga LAN, USB2.0, SATAII,...
-
Page 12: Mechanical Drawing
LE-379 User’s Manual 1.3 <Mechanical Drawing>... -
Page 13: Block Diagram
LE-379 User’s Manual 1.4 <Block Diagram> Intel® Atom DDR3 SODIMM 4GB max. CRT / DVI G-T56N D2700/N2800 18/24bit Single Channel LVDS 2 x serial ATAII 1 x PCIE mini card socket Mini-PCI Slot NM10 6 x USB2.0 port 4 x Serial Port... -
Page 14: Chapter 2
LE-379 User’s Manual Chapter 2 <Hardware Setup> 2.1 <Connector Location> CN_LVDS CN_DVI CN_SATA MINI_PCI CPUFAN MINI_CARD CN_INV CN_COM2 DC_OUT CN_DIO SYSFAN CN_COM5/6 DC_IN CN_IR CN_COM3/4 CN AUDIO CN_LPT JFRNT CN_USB1/2 CN_SMBUS... - Page 15 LE-379 User’s Manual SO-DIMM CFast Card LE-379 RJ45 COM1...
-
Page 16: Jumper Reference
LE-379 User’s Manual 2.2 <Jumper Reference> Jumper Function JRTC CMOS Operating/Clear Setting AT/ATX Mode Setting JCSEL1/2 COM2 RS232/422/485/IrDA Mode Setting Com4 Voltage Setting(For Pin 9) Com3 Voltage Setting(For Pin 9) JVLCD LCD Panel Voltage Setting JVLCD JRTC JCSEL1 JCSEL2 JP1 JP2... -
Page 17: Connector Reference
LE-379 User’s Manual 2.3 <Connector Reference> 2.3.1 <Internal Connector> Connector Function Remark SO-DIMM 204 -pin DDR3 SO-DIMM SDRAM slot CN_SATA 10-pin SATA Cable connector CFast CFast Card socket MINI_CARD PCIE mini card socket MINI_PCI mini PCI socket CN_LVDS 20 -pin LVDS connector... -
Page 18: Cpu And Memory Setup
LE-379 User’s Manual 2.4 <CPU and Memory Setup> The board provides one 204-pin DDR3 SO-DIMM to support DDR3 800/1066 memory modules up to 4GB. SO-DIMM... -
Page 19: Cmos & Atx Setup
LE-379 User’s Manual 2.5 <CMOS & ATX Setup> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, please remove battery to clear (reset) the CMOS to its default values. -
Page 20: Sata & Cfast Interface
LE-379 User’s Manual 2.6 <SATA & CFast Interface> Based on Intel NM10, the board provides one Serial ATAII interfaces with up to 300MB/s of transfer rate. The board has one CFast card socket on the solder side. CN_SATA1 CN_SATA2 CFast... -
Page 21: Lan Interface
LE-379 User’s Manual 2.7 <LAN Interface> The Intel® 82583V supports triple speed of 10/100/1000Base-T, with IEEE802.3 compliance and Wake-On-LAN supported. -
Page 22: Onboard Display Interface
LE-379 User’s Manual 2.8 <Onboard Display Interface> Based on Intel CedarTrail Atom D2700 / N2800 chipset with built-in Intel GMA 3600 series Graphics, the board provides one DB15 connector on real external I/O port, and two 20-pin DVI and LVDS interface with 5-pin LCD backlight inverter connector. The board provides dual display function with clone mode and extended desktop mode for CRT, DVI and LVDS. -
Page 23: Digital Display
LE-379 User’s Manual 2.8.2 <Digital Display> The board provides one 20-pin LVDS connector for 18 bit single channel panel, with one LCD backlight inverter connector and one jumper for panel voltage setting. CN_INV CN_LVDS... - Page 24 LE-379 User’s Manual Connector: CN_INV Type: 5-pin Inverter power connector Connector model: JST B5B-XH-A Description +12V LVDS_VARY_BL INV_ON Jumper: JVLCD Type: 3-pin Power select jumper Description +3.3V Default: 2-3 Connector: CN_LVDS Type: onboard 20-pin connector for LVDS connector Connector model: HIROSE DF13-20DP-1.25V...
- Page 25 LCD Installation Guide: Preparing the LE-379, LCD panel and the backlight inverter You would need a LVDS type cable. Panel side...
- Page 26 LE-379 User’s Manual After setup the devices well, you need to select the LCD panel type in the BIOS. The panel type mapping is list below: LE-379 BIOS panel type selection form On board Single channel LVDS 18bit Output format...
-
Page 27: Dvi Interface
LE-379 User’s Manual 2.8.3 <DVI Interface > The board also comes with a DVI interface. Supports up to 1920 x 1200 (WUXGA) of resolution. Type: onboard 20-pin connector for DVI connector Connector model: HIROSE DF13-20DP-1.25V Pin Number Assignment Pin Number Assignment +3.3V... -
Page 28: Onboard Audio Interface
LE-379 User’s Manual 2.9 <Onboard Audio Interface> The board provides the onboard high definition audio with Realtek ALC888 Connector: CN_AUDIO Type: 10-pin (2 x 5) 1.27mm x 2.54mm-pitch header Description Description MIC2_L AGND MIC2_R AVCC FRO_R MIC2_JD F_IO_SEN FRO_L LINE2_JD... -
Page 29: Usb2.0 Interface
LE-379 User’s Manual 2.10 <USB2.0 Interface> Based on Intel Nm10 FCH, the board provides 6 USB2.0 ports. The USB2.0 interface provides up to 480Mbps of transferring rate. Interface USB2.0 Controller NM10 Transfer Rate Up to 480Mb/s Output Current 500mA CN_USB1/2... -
Page 30: Gpio Interface
LE-379 User’s Manual 2.11 <GPIO Interface> The board provides a programmable 8-bit digital I/O interface; you can use this general purpose I/O port for system control like POS or KIOSK. Connector: CN_DIO Type: onboard 2 x 6-pin header, pitch=2.0mm Description... -
Page 31: Serial Port Jumper Setting
LE-379 User’s Manual 2.12 <Serial Port Jumper Setting > The board provides two RS232 serial ports, with jumper selectable RS422/485/IrDA for COM2. Connector: CN_COM2 Type: 10-pin (5 x 2) 1.27mm x 2.54mm-pitch header for COM2 Description Description DCD/422TX-/485- SINBTXC SOUTBRXC... -
Page 32: Power & Fan Connector
LE-379 User’s Manual 2.13 <Power & FAN Connector > The board requires DC input with 4-pin header, the input voltage range is from 5V to 24V, for the input current, please take a reference of the power consumption report on appendix. -
Page 33: Power Output
LE-379 User’s Manual 2.13.2 <Power Output> Connector: DC_OUT Type: 4-pin connector for +5V/+12V output Pin Description Pin Description Pin Description Pin Description +12V Ground Ground Note: Maximum output current 12V/1A, 5V/1A 2.13.3 <Fan Connector> Connector: SYSFAN Type: 3-pin fan wafer connector... -
Page 34: Indicator And Switch
LE-379 User’s Manual 2.14 <Indicator and Switch> The JFRNT provides front control panel of the board, such as power button, reset and beeper, etc. Please check well before you connecting the cables on the chassis. Connector: JFRNT Type: onboard 10-pin (2 x 5) 2.54-pitch header... - Page 35 LE-379 User’s Manual (This Page is Left For Blank)
-
Page 36: Chapter 3
LE-379 User’s Manual Chapter 3 <BIOS Setup> The motherboard uses the Award BIOS for the system configuration. The Award BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel® x86 and compatible CPU architecture based processors and computers. - Page 37 LE-379 User’s Manual (This Page is Left for Blank)
-
Page 38: Appendix A
LE-379 User’s Manual Appendix A <I/O Port Pin Assignment> A.1 <SATA Port> Connector: SATA1/2 Type: 10-pin header for SATA Port Description Description Ground Ground Ground Ground A.2 <IrDA Port> Connector: CN_IR Type: 5-pin header for SIR Port Description IRRX Ground IRTX A.3 <SMBUS Port>... -
Page 39: A.4
LE-379 User’s Manual A.4<LPT Port> Connector: CN_LPT Type: 26-pin header for LPT Port Description -PSTB AFD- PRD0 ERR- PRD1 INIT- PRD2 SLIN- PRD3 PRD4 PRD5 PRD6 PRD7 ACK- BUSY SLCT A.5 < CRT Port > Connector: CRT Type: 15-pin D-sub female connector on rear panel... -
Page 40: A.6
LE-379 User’s Manual A.6 <Serial Port> Connector: COM1 Type: 9-pin D-sub male connector on rear panel Description Description Ground A.7 <LAN Port> Connector: RJ45 Type: RJ45 connector with LED on rear panel Description TRD0+ TRD0- TRD1+ TRD2+ TRD2- TRD1- TRD3+ TRD3- A.8 <LAN LED Port>... - Page 41 LE-379 User’s Manual Connector: JACT Type: 5-pin header for LAN Activity LED connector Description LED- LED+...
-
Page 42: Appendix B
LE-379 User’s Manual Appendix B <Flash BIOS> B.1 BIOS Auto Flash Tool The board is based on Award BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: http://www.phoenix.com/en/home/... -
Page 43: Appendix C
LE-379 User’s Manual Appendix C <System Resources> C.1 <I/O Port Address Map>... - Page 44 LE-379 User’s Manual...
-
Page 45: C.2
LE-379 User’s Manual C.2 <Memory Address Map >... -
Page 46: C.3 < System Irq Resources
LE-379 User’s Manual C.3 < System IRQ Resources >... - Page 47 LE-379 User’s Manual...
- Page 48 LE-379 User’s Manual...
-
Page 49: C.4 < System Dma Resources
LE-379 User’s Manual C.4 < System DMA Resources >... -
Page 50: Appendix D
LE-379 User’s Manual Appendix D <Programming GPIO’s> The GPIO can be programmed with the MS-DOS debug program using simple IN/OUT commands.The following lines show an example how to do this. GPIO0…..GPIO7 bit0……bit7 -o 2E 87 ;enter configuration. -o 2E 87... -
Page 51: Appendix E
LE-379 User’s Manual Appendix E <Watch Dog timer Setting > The watchdog timer makes the system auto-reset while it stops to work for a period. The integrated watchdog timer can be setup as system reset mode by program. Timeout Value Range... - Page 52 LE-379 User’s Manual (This Page is Left for Blank)
- Page 53 Taiwan Commate Computer Inc. 19F., No.94, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei Address City 22102, Taiwan +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw E-Mail i nfo@commell.com.tw (General Information) t ech@commell.com.tw (Technical Support) Commell is our trademark of industrial PC division...
