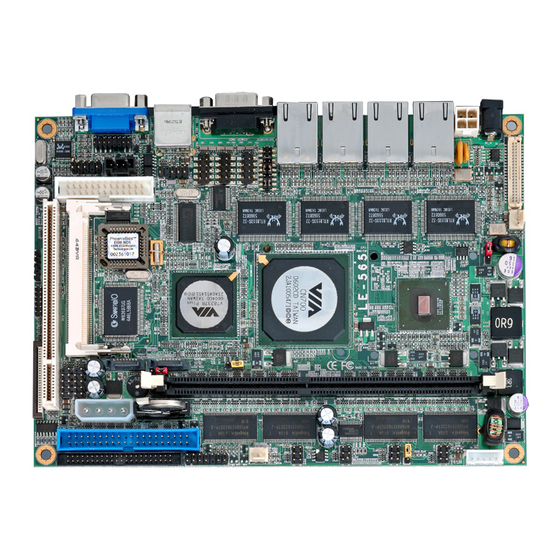

5.25 inch embedded miniboard
Hide thumbs Also See for LE-565:
Table of Contents

Advertisement

Quick Links

Download this manual
LE-565
5.25 inch Embedded Miniboard
User's Manual
Edition 1.0
2006/06/19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LE-565 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Commell LE-565

Summary of Contents for Commell LE-565

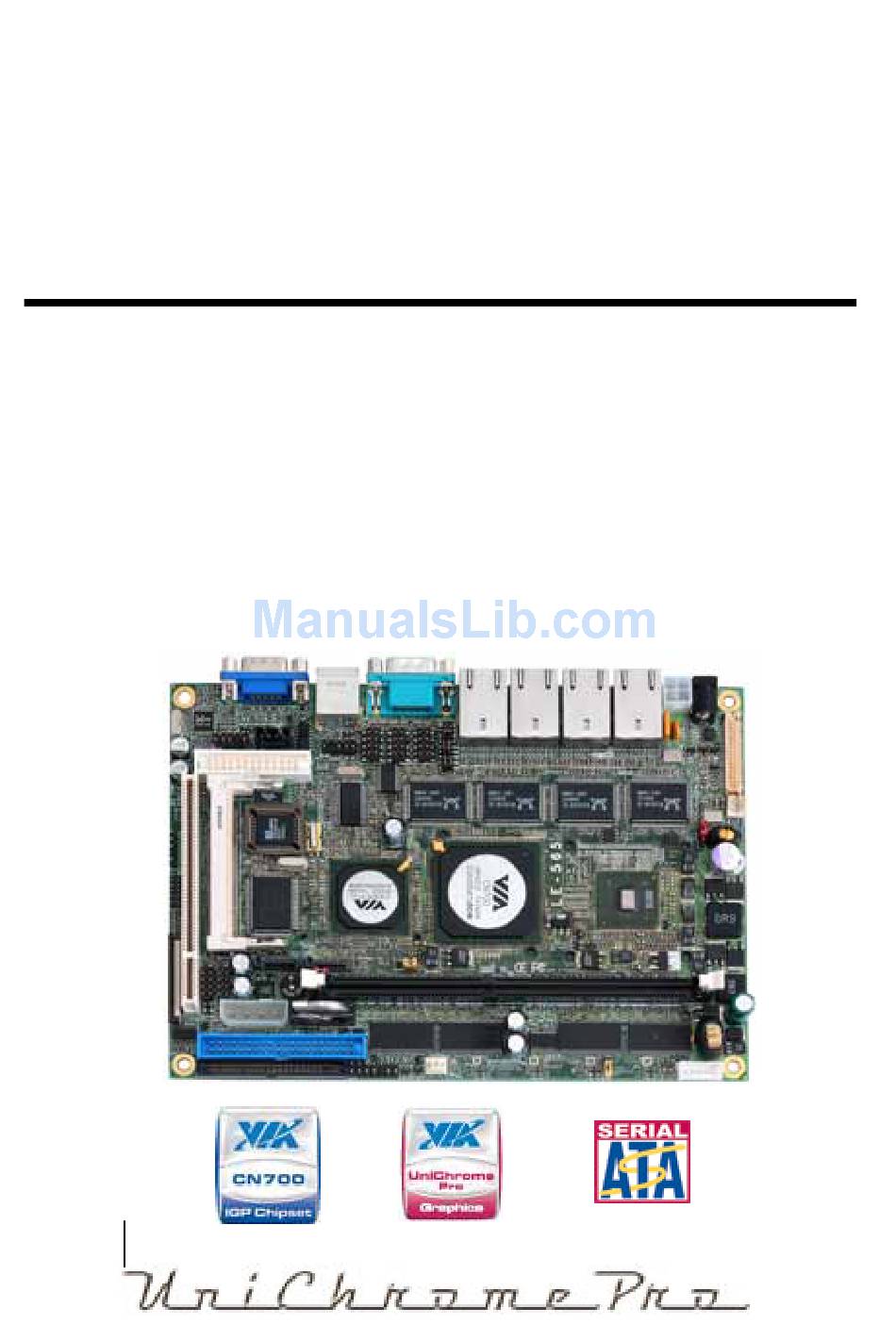

  • Page 1 LE-565 5.25 inch Embedded Miniboard User’s Manual Edition 1.0 2006/06/19...
  • Page 2 LE-565 User’s Manual Copyright 2006. All rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.

  • Page 3: Packing List

    LE-565 User’s Manual Packing List Please check the package before you starting setup the system Hardware: LE-565 series motherboard x 1 Cable Kit: 44-pin ATA33 IDE Cable x 1 COM Port & Printer Port Cable x 1 COM Port Cable x 1 Printed Matters: User’s Manual x 1...
  • Page 4 LE-565 User’s Manual Chapter 1 <Introduction> ... 7 1.1 <Product Overview>... 7 1.2 <Product Specification> ... 8 1.3 <Mechanical Drawing>... …10 1.4 <Block Diagram>... 11 Chapter 2＜Hardware Setup＞……………………………………………….……..12 2.1 <Connector Location> ...……12 2.2 <Jumper Reference>………………………………………………………..14 2.3 <Connector Reference>... 15 2.3.1 <Internal Connector>... 15 2.3.2 <External Connector>...
  • Page 5 LE-565 User’s Manual 2.15.1 <Power Input> ... 33 2.15.2 <Power Output>…………………………………………………….34 2.15.3 <Fan Connector>... 34 2.16 <Indicator and Switch>... 35 Chapter 3 <System Configuration>... 37 3.1 <SATA RAID Configuration>... 37 3.2 <Audio Configuration> ... 39 3.3 <Display Configuration>... 40 Chapter 4 <BIOS Setup> ... 44 Appendix A <I/O Port Pin Assignment>...
  • Page 6 LE-565 User’s Manual (The Page is Left For Blank)

  • Page 7: Product Overview

    Chapter 1 <Introduction> 1.1 <Product Overview> LE-565 is the 5.25 inch embedded miniboard based on VIA chipset. It integrates VIA embedded chipset for CN700 with VT8237R Plus, DDR 333/400 SDRAM, and serial ATA with RAID to provide the economical embedded platform.

  • Page 8: Product Specification

    LE-565 User’s Manual 1.2 <Product Specification> General Specification Form Factor 5.25 inch miniboard VIA V4/Eden 1.0GHz processor L1/L2 Cache: 128/128KB Front side bus: 400MHz Memory 1 x 184-pin DDR 333/400 SDRAM up to 1GB,onboard optional 256MB DDR SDRAM Unbufferred, none-ECC memory supported only...
  • Page 9 LE-565 User’s Manual Ethernet Interface Chipset REALTEK 8110S-32 Type 10Base-T / 100Base-TX /1000Base-TX auto-switching Fast Ethernet Full duplex, IEEE802.3U compliant Connector Four External RJ45 connectors with LED on rear I/O panel Audio Interface Chipset REALTEK ALC655 Interface 5.1 channel surround audio with Line-in, Line-out and MIC-in...

  • Page 10: Mechanical Drawing

    LE-565 User’s Manual Introduction 1.3 <Mechanical Drawing> Mechanical Drawing...

  • Page 11: Block Diagram

    LE-565 User’s Manual 1.4 <Block Diagram> CRT/LCD Monitor VT1636 LVDS 6 x USB2.0 Ports AC97 ALC655 BIOS 4 x Serial ports 1 x Floppy port 1 x Parallel port 8-bit GPIO PS/2 , KB/MS IrDA Block Diagram Eden nanoBGA2 CN700...

  • Page 12: Connector Location

    LE-565 User’s Manual Chapter 2 <Hardware Setup> 2.1 <Connector Location> JLED0/1/2/3 CN_INV DIMM CPUFAN CN_LVDS CN_12V CN_PWR IDE1 SYSFAN JFRNT IDE2 CN_COM2/3/4 CDIN CN_PS2 Hardware Setup CN_USB2/3 SATA1/2 CN_DIO MINIPCI CN_IR CN_AUDIO CN_CRT Connector Location...
  • Page 13 LE-565 User’s Manual Hardware Setup DC_IN LAN1/2/3/4 COM1 Connector Location...

  • Page 14: Jumper Reference

    LE-565 User’s Manual 2.2 <Jumper Reference> Jumper JRTC JCFSEL JVLCD JCSEL1/2 JVLCD Function CMOS Operating/Clear Setting Compact Flash address mode setting LCD Panel Voltage Setting AT/ATX mode setting COM2 RS232/422/485 mode setting JCFSEL JCSEL1/2 Hardware Setup JRTC Jumper Reference...

  • Page 15: Connector Reference

    LE-565 User’s Manual 2.3 <Connector Reference> 2.3.1 <Internal Connector> Connector DIMM 184-pin DDR SDRAM DIMM IDE1 40-pin primary IDE connector IDE2 44-pin secondary IDE connector 26-pin slim type floppy connector SATA1/2 7-pin Serial ATA connector CN_12V 4-pin power supply connector...

  • Page 16: Cpu And Memory Setup

    LE-565 User’s Manual 2.4 <CPU and Memory Setup> 2.4.1< CPU> The board supports VIA Eden processor, default ratio is Eden 1G (400MHz) with heatsink only. 2.4.2 <Memory> The board supports one 184-pin DDR333/400 SDRAM and up to 1GB of capacity, only non-ECC, unbuffered memory is supported.

  • Page 17: Cmos Atx Setup

    LE-565 User’s Manual 2.5 <CMOS ATX Setup> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values.

  • Page 18: Enhanced Ide & Cf Interface

    LE-565 User’s Manual 2.6 <Enhanced IDE & CF Interface> The board supports two enhanced IDE interface, dual channel for 4 ATAPI devices with ATA33. Based on embedded application, the board has one 44-pin IDE connector +5V supported for disk on module.

  • Page 19: Serial Ata Interface

    LE-565 User’s Manual 2.7 <Serial ATA Interface> Based on VIA VT8237R Plus Southbridge, the board supports two Serial ATA interfaces with RAID 0 and 1 array function. The following is the list of the specification of the Serial ATA. Complies with Serial ATA Specification Revision 1.0...

  • Page 20: Floppy Port

    LE-565 User’s Manual 2.8 <Floppy Port> The board provides a slim type floppy port; please use the 26-pin ribbon cable in the package to connect the floppy device. Floppy rear side Lift up this plastic bar Slot the cable in (Blue paste for outside)

  • Page 21: Lan Interface

    LS-570 User’s Manual Hardware Setup 2.9 <LAN Interface> The board provides four GigaLAN interfaces with REALTEK 8110S-32 PCI controller, and compliant with standard IEEE 802.3 Ethernet interface for 100BASE-TX. LAN_1/2/3/4 LAN Interface...

  • Page 22: Onboard Display Interface

    LE-565 User’s Manual Hardware Setup 2.10 <Onboard Display Interface> Based on VIA CN700, the board supports integrated S3 Graphics UniChrome Pro IGP graphics, with BIOS selectable 16/32/64MB shared with system memory for frame buffer. 2.10.1 <Analog VGA Interface> The board provides a DB15 CRT connector on the rear I/O panel.

  • Page 23: Digital Display

    LS-570 User’s Manual 2.10.2 <Digital Display> The board provides one 40-pin LVDS connector for 18/24-bit single/dual channel panels, supports up to 1600 x 1200 (UXGA) of resolution, with one LCD backlight inverter connector and one jumper for panel voltage setting CN_INV JVLCD JVLCD...
  • Page 24 LE-565 User’s Manual Connector: CN_INV Type: 5-pin LVDS Power Header Connector model: JST B5B-XH-A Description +12V ENABKL Connector: CN_LVDS Type: onboard 40-pin connector for LVDS connector Connector model: HIROSE DF13-40DP-1.25V Connector: JVLCD Type: 3-pin Power select Header Signal LCDVCC ATX0-...
  • Page 25 LS-570 User’s Manual To setup the LCD, you need the component below: A panel with LVDS interfaces. An inverter for panel’s backlight power. A LCD cable and an inverter cable. For the cables, please follow the pin assignment of the connector to make a cable, because every panel has its own pin assignment, so we do not provide a standard cable;...
  • Page 26 LE-565 User’s Manual After setup the devices well, you need to select the LCD panel type in the BIOS. The panel type mapping is list below: LE-565 BIOS panel type selection form Resolution 640 x 480 800 x 600 1024 x 768...

  • Page 27: Onboard Audio Interface

    LS-570 User’s Manual 2.11 <Onboard Audio Interface> The board provides the onboard AC97 5.1-channel audio interface with Realteck ALC655. Connector: CN_AUDIO Type: 10-pin (2 x 5) header (pitch = 2.54mm) Description Line/SURR – Left Line/SURR – Right MIC2/LEF Line Out – Right Connector: CDIN Type: 4-pin header (pitch = 2.54mm) Description...

  • Page 28: Usb2.0 Interface

    LE-565 User’s Manual Hardware Setup 2.12 <USB2.0 Interface> Based on VIA VT8237R Plus, the board provides 6 USB2.0 ports. The USB2.0 interface provides up to 480Mbps of transferring rate. Interface USB2.0 Controller VIA VT8237R+ Transfer Rate Up to 480Mb/s Output Voltage...
  • Page 29 LS-570 User’s Manual Connector: CN_USB Type: 10-pin (5 x 2) header for USB2/3 Ports Description Data0- Data0+ Ground Ground PS: The USB2.0 will be only active when you connecting with the USB2.0 devices, if you insert an USB1.1 device, the port will be changed to USB1.1 protocol automatically. The transferring rate of USB2.0 as 480Mbps is depending on device capacity, exact transferring rate may not be up to 480Mbps.

  • Page 30: Gpio Interface

    LE-565 User’s Manual 2.13 <GPIO Interface> The board provides a programmable 8-bit digital I/O interface; you can use this general purpose I/O port for system control like POS or KIOSK. Connector: CN_DIO Type: onboard 2 x 6-pin header, pitch=2.0mm Description...

  • Page 31: Serial Port Jumper Setting

    LS-570 User’s Manual 2.14 <Serial Port Jumper Setting > The board provides four RS232 serial ports, with jumper selectable RS422/485 for COM2. Connector: CN_COM2/3/4 Type: 10-pin (5 x 2) header for COM2/3/4 Description DCD/422RX-/485- TXD/422TX+ RS-232 RS-485 RS-422 Power and Fan Connector Description RXD/422RX+/485+ DTR/422TX-...
  • Page 32 LE-565 User’s Manual Hardware Setup JCSEL2 JCSEL1 CN_COM2/3/4 GPIO Interface...

  • Page 33: Power And Fan Connector

    LS-570 User’s Manual 2.15 <Power and Fan Connector> The board comes with a 2-pin DC-Jack power connector for DC 12V input, it also has one 4-pin P4 additional use power connector for internal power supply, you can choose one pf them to meet your plication.

  • Page 34: Power Output

    LE-565 User’s Manual 2.15.2 <Power Output> Connector: CN_PWR Type: 4-pin P-type connector for +5V/+12V Description Note: Maximum output voltage: 12V/5A & 5V/3A 2.15.3 <Fan Connector> Connector: CPUFAN, SYSFAN Type: 3-pin fan wafer connector Pin Description Ground output Description Ground Floppy...

  • Page 35: Indicator And Switch

    LS-570 User’s Manual 2.16 <Indicator and Switch> The JFRNT provides front control panel of the board, such as power button, reset and beeper, etc. Please check well before you connecting the cables on the chassis. Connector: JFRNT Type: onboard 14-pin (2 x 7) 2.54-pitch header...
  • Page 36 LE-565 User’s Manual (This Page is Left For Blank)

  • Page 37: Chapter 3

    LE-565 User’s Manual System Configuration Chapter 3 <System Configuration> 3.1 <SATA RAID Configuration> The board supports two Serial ATA ports onboard, and supports RAID 0, 1 and JBOD disk array, the RAID 0, 1 and JBOD are specified below: RAID 0 (Stripping): Two hard drives operating as one drive for optimized data R/W performance.
  • Page 38 LE-565 User’s Manual You also can edit disk array under OS, please install the VIA RAID Utility in the driver CD. (To getting start, please click here to learn more information) (Click here to build RAID 0) (Click here to build RAID JBOD)

  • Page 39: Audio Configuration

    LE-565 User’s Manual System Configuration 3.2 <Audio Configuration> The board provides 5.1 channel audio interface with driver installed, please install the Realtek ALC655 audio driver in the CD before getting start to enjoy the 5.1 channel sound system. Audio Configuration...

  • Page 40: Display Configuration

    LE-565 User’s Manual 3.3 <Display Configuration> The board provides onboard analog VGA interface, and optional digital display interface with LVDS , please install the VIA video driver before enjoy the vivid display. Based on the VIA CN700 with S3 UniChrome Pro graphic, the board provides dual display function for clone or extended desktop modes with secondary display device attached.
  • Page 41 LE-565 User’s Manual System Configuration Two controllers for each display device There are two options for secondary display device For more display properties setting, please click “Advanced” button. Display Configuration...
  • Page 42 LE-565 User’s Manual Please select S3Display for advanced device setting. When you set dual display clone mode, you’ll see the same screen display on two devices. When you set the dual display for extended desktop mode, you can have the independent desktop on the second device.
  • Page 43 LE-565 User’s Manual (This Page is Left for Blank)

  • Page 44: Chapter 4

    The motherboard uses the Award BIOS for the system configuration. The Award BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU architecture based processors and computers. The BIOS provides critical low-level support for the system central processing, memory and I/O sub-systems.
  • Page 45 LE-565 User’s Manual (This Page is Left for Blank)

  • Page 46: Appendix A

    LE-565 User’s Manual Appendix A <I/O Port Pin Assignment> A.1 <IDE Port> Connector: IDE1 Type: 40-pin (20 x 2) box header Description Reset Ground IOW-/STOP IOR-/HDMARDY IORDY/DDMARDY DACK- CS0 (MASTER CS) LED ACT- I/O Port Pin Assignment Description Ground Ground...
  • Page 47 LE-565 User’s Manual Connector: IDE2 Type: 44-pin (22 x 2) box header Description Reset Ground IOW-/STOP IOR-/HDMARDY IORDY/DDMARDY DACK- ASP1 Ground IDE Port I/O Port Pin Assignment Description Ground Ground Ground Ground Ground Ground Ground Ground...

  • Page 48: A.2

    LE-565 User’s Manual A.2 <Floppy Port> Connector: FDD Type: 26-pin connector Description DRV1 MTR1 Ground Ground Ground Ground A.3 <IrDA Port> Connector: CN_IR Type: 5-pin header for SIR Port Description IRRX Ground IRTX I/O Port Pin Assignment Description INDEX DRV0...

  • Page 49: A.4 < Crt Port

    LE-565 User’s Manual A.4 < CRT Port > Connector: CRT Type: 15-pin D-sub female connector on panel Description GREEN BLUE Ground A.5 <Serial ATA Port> Connector: CN_SATA1/2 Type: 7-pin wafer connector GND RSATA_TXP1 RSATA_TXN1 GND RSATA_RXN1 RSATA_RXP1 GND A.6 <Serial Port>...

  • Page 50: A.7

    LE-565 User’s Manual A.7 <LAN Port> Connector: RJ45_1/2/3/4 Type: RJ45 connector with LED on rear panel Description Connector: JLED0/1/2/3 Type: 6-pin header for LAN LED Description ACT+ Link100+ Link 1G+ Description ACT- Link100- Link 1G-...
  • Page 51 LE-565 User’s Manual (This Page is Left for Blank)

  • Page 52: Appendix B

    LE-565 User’s Manual Appendix B <Flash BIOS> B.1 BIOS Auto Flash Tool The board is based on Award BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: h ttp://www.award.com...
  • Page 53 LE-565 User’s Manual (This Page is Left for Blank)

  • Page 54: Contact Information

    LE-565 User’s Manual Contact Information Any advice or comment about our products and service, or anything we can help you please don’t hesitate to contact with us. We will do our best to support you for your products, projects and business.
