- Page 1 LE-37I 3.5 inch Motherboard User’s Manual Edition 1.4 2017/08/02...
- Page 2 LE-37I User’s Manual Copyright Copyright 2017, all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
-
Page 3: Packing List
LE-37I User’s Manual Packing List: Please check the package content before you starting using the board. 1 x LE-37I Motherboard (Include Heat spreader for LE-37IS series) (Include Cooler Fan for LE-37IF series) 1 x Audio cable 2 x SATA CABLE... -
Page 4: Table Of Contents
LE-37I User’s Manual Index Chapter 1 <Introduction> .............. 4 1.1 <Product Overview>............4 1.2 <Product Specification> ............5 1.3 <Mechanical Drawing>............6 1.4 <Block Diagram>..............8 Chapter 2 <Hardware setup>............9 2.1 <Connector Location and Reference> ........ 9 2.1.1 <Internal connectors list> ........10 2.1.2 <External connectors list>........10... -
Page 5: Chapter 1

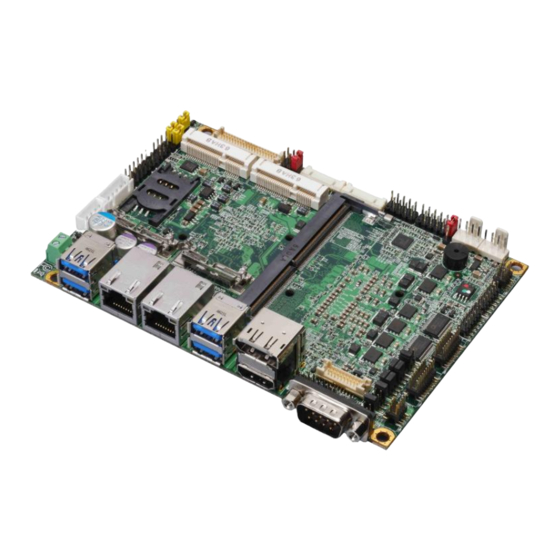

LE-37I User’s Manual Chapter 1 <Introduction> 1.1 <Product Overview> LE-37I is 3.5 inch Motherboard which supports Intel® 6th / 7th Gen Intel® Core™/ Xeon® H-series Processor with Intel® QM170 /QM175 /CM238 Chipset, integrated HD Graphics 530/630, DDR4 memory, Realtek High Definition Audio, Intel Gigabit LAN, Serial ATA3 The 6th / 7th Generation Intel®... -
Page 6: Product Specification
LE-37I User’s Manual 1.2 <Product Specification> System Intel® 6th / 7th Gen Intel® Core™/ Xeon® H-series Processor, Processor FCLGA1440 package Chipset Intel® QM170 /QM175 /CM238 1 x DDR4 SO-DIMM 2133 MHz up to 16GB, Memory Support Non-ECC, unbuffered memory only... -
Page 7: Mechanical Drawing
LE-37I User’s Manual 1.3 <Mechanical Drawing>... - Page 8 LE-37I User’s Manual...
-
Page 9: Block Diagram
LE-37I User’s Manual 1.4 <Block Diagram> 1 x DisplayPort Channel A DDR4 SO-DIMM 1.2V 1 x HDMI 6th /7th 1 x DVI-D Gen Processor PTN3355 1 x VGA PTN3460 DMI GEN3 1 x LVDS PCIe I210-AT QM170 PCIe I219-LM QM175... -
Page 10: Chapter 2
LE-37I User’s Manual Chapter 2 <Hardware setup> 2.1 <Connector Location and Reference> CN_USB2-2 CN_USB2-1 SYSFAN CPUFAN CN_AUDIO CN_PS2 MINICARD2 MINICARD1 CN_LPC CN_DIO JFRNT SIMM DDR4 CN_COM5/6 CN_COM3/4 CN_COM2 CN_CRT CN_DVI CN_BAT CN_SMBUS Display Port USB3.0 COM1 I219 I210 HDMI USB3.0... -
Page 11: Internal Connectors List
LE-37I User’s Manual 2.1.1 <Internal connectors list> Connector Function DDR4 260-pin DDR4 SO-DIMM slot SATA3-1/2 10-pin Serial ATA3 connector CN_AUDIO 5 x 2-pin audio pin header CN_LPC 6 x 2-pin LPC pin header CN_LVDS 20 x 2-pin LVDS connector CN_INV... -
Page 12: Memory Setup
LE-37I User’s Manual 2.2 <Memory Setup> In the process, the board must be powered off. 1. Put the memory tilt into the slot. Note the Memory notch key aligned slot key. 2. Then press down till lock into the mounting notch. -
Page 13: Jumper Location And Reference
LE-37I User’s Manual 2.3 <Jumper Location and Reference> JRTC JVLCD JMSATA1 JMSATA2 JCSEL1 JCSEL2 2.3.1 <Jumper list> Jumper Function Power mode select JRTC CMOS Normal/Clear Setting JVLCD Panel Voltage Setting JMSATA1 MiniCard 1 MSATA Setting JMSATA2 MiniCard 2 MSATA Setting... -
Page 14: Clear Cmos And Power On Type Selection
LE-37I User’s Manual 2.3.2 <Clear CMOS and Power on type selection> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values. -
Page 15: Ethernet Interface
LE-37I User’s Manual 2.4.2 <Ethernet interface> The board provide I219-LM PHY Gigabit Ethernet and I210-AT Gigabit Ethernet on rear I/O.Intel I219-LM and I210 supports operation at 10/100/1000 Mb/s data rates, with IEEE802.3 compliance and Wake-On-LAN supported. I210 I219 2.4.3 <Display interface>... - Page 16 LE-37I User’s Manual JVLCD CN_LVDS CN_INV CN_CRT CN_DVI CN_CRT: VGA 16-pin connector (Pitch 2.00 mm) Signal Signal IOGND1 IOGND1 IOGND1 IOGND1 IOGND1 5VCDA 5HSYNC 5VSYNC 5VCLK CN_LVDS: LVDS 40-pin connector ( Model: HIROSE DF13-40DP-1.25V compatible Signal Signal Set by JVLCD...
- Page 17 LE-37I User’s Manual B_LVDS_2+ A_LVDS_2+ B_LVDS_3- A_LVDS_CLK- B_LVDS_3+ A_LVDS_CLK+ B_LVDS_CLK- A_LVDS_3- B_LVDS_CLK+ A_LVDS_3+ LVDS_DDCSCL LVDS_DDCSDA Note: Pin4 only need to be connected to GND CN_INV: LVDS 5-pin Backlight power connector Signal Backlight Control Enable Backlight JVLCD: LVDS panel power select jumper...
-
Page 18: Serial Port Interface
LE-37I User’s Manual 2.4.4 <Serial Port interface> COM1 JCSEL1 CN_COM5/6 CN_COM3/4 JCSEL2 CN_COM2 COM1: RS232 DB9 connector Signal Signal Set by JP1 -17-... - Page 19 LE-37I User’s Manual CN_COM2: RS232/422/485 10-pin header (Pitch 2.54 x 1.27mm) Signal Signal DCD/ 422TX-/ 485- RXD/ 422TX+/ 485+ TXD/ 422RX+ DTR/ 422RX- Set by JP2 Note: Use JCSEL1 and JCSEL2 to select communication mode COM3/4: COM 20-pin header (Pitch 2.54 x 1.27mm)
- Page 20 LE-37I User’s Manual JP1, JP2: COM1, COM2 pin-9 setting Jumper settings Function RI (Default) Effective patterns of connection: 1-2 / 3-4 / 5-6 Other may cause damage JCSEL1, JCSEL2: For configure COM2 communication mode Function JCSEL1 JCSEL2 RS232 (Default) RS485...
-
Page 21: Usb Interface
LE-37I User’s Manual 2.4.5 <USB interface> USB3.0 USB3.0 CN_USB2-1 CN_USB2-2 CN_USB 2-1/2-2: USB2.0 10-pin header (Pitch 2.54 mm) Signal Signal 5VSB 5VSB DATA0- DATA1- DATA0+ DATA1+ Install USB3.0 Driver If you want to use CN_USB 2-1/2-2 in Windows7. -20-... -
Page 22: Audio Interface
LE-37I User’s Manual 2.4.6 <Audio interface> CN_AUDIO CN_AUDIO: Front panel audio 10-pin header (Pitch 1.27mm x 2.54mm) Signal Signal MIC_L MIC_R FP_OUT_R MIC_DETECT SENSE FP_OUT_L FP_OUT_DETECT -21-... -
Page 23: Expansion Slot
LE-37I User’s Manual 2.4.7 <Expansion slot> JMSATA1 MINICARD2 MINICARD1 JMSATA2 SIMM MINI_CARD1 and MINI_CARD2 have some special design to compatible our mini-PCIe card. (ex: MPX-574D2, MPX-210D2 etc) MINI_CARD2 support mSATA by JMSATA, and connect SIM card with 3G module. JMSATA1/2: Setting MINI_CARD2 to support PCIe/mSATA... -
Page 24: Front Panel Switch And Indicator
LE-37I User’s Manual 2.4.8 <Front panel switch and indicator> JFRNT JFRNT: Front panel switch and indicator 14-pin header (Pitch 2.54mm) Signal Signal Power_ON- Power_ON+ Speaker- Speaker+ HDD_LED- HDD_LED+ Power_LED- Power_LED+ Reset+ Reset- 2.4.9 <GPIO and Other interface> SYSFAN CPUFAN CN_LPC... - Page 25 LE-37I User’s Manual CN_SMBUS When using GPIO function, please note: As Output: Open-drain, most applications need use an external pull up resistor. (If not may cause damage) As Input: TTL-level. GPIO DC characteristics 5V TTL-level Input Pin Parameter Unit Conditions Input Low Threshold Voltage = 3.3V...
- Page 26 LE-37I User’s Manual LAD0 3.3V SERIRQ 3.3VSB CN_PS/2: PS/2 10-pin header (Pitch 2.54mm) Signal Signal KB_DATA M_DATA KB_CLK M_CLK CN_SMBUS: SMBus 5-pin connector Signal SMBDAT SMBCLK CPUFAN: CPU cooler fan 4-pin connector Signal Sensor Control SYSFAN: System cooler fan 4-pin connector...
-
Page 27: Power Supply
LE-37I User’s Manual 2.5 <Power supply> 2.5.1 <Power input> DC_IN DC_IN: Terminal Block 2-pin power connector Signal Signal Power in The power support 9~24V wide voltage input. 2.5.2 <Power output> DC_OUT: SATA power 4-pin connector Signal DC_OUT -26-... -
Page 28: Appendix A
LE-37I User’s Manual Appendix A <Flash BIOS> A.1 <Flash tool> The board is based on Phoenix BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: FPT TOOL The tool’s file name is “fpt.exe”, it’s the utility that can write the data into the... - Page 29 LE-37I User’s Manual BIOS panel type selection form (BIOS Version:1.0) Single / Dual channel Single / Dual channel Type Type VBIOS DEFAULT 1366 x 768 640 x 480 1680 x 1050 800 x 600 1920 x 1200 1024 x 768...
-
Page 30: Appendix C
LE-37I User’s Manual Appendix C <Programmable Watch Dog Timer> The watchdog timer makes the system auto-reset while it stops to work for a period.The integrated watchdog timer can be setup as system reset mode by program.You can select Timer setting in the BIOS, after setting the time options, the system will reset according to the period of your selection. -
Page 31: Appendix D
LE-37I User’s Manual -o 4F 01 ; activate WDTO# function -o 4E F0 -o 4F 00 ;set “00” is second mode, set “08” is minute mode -o 4E F1 -o 4F 05 ;00h: Timeout Disable ;01h: Timeout occurs after 1 minute only ;02h: Timeout occurs after 2 second/minute... -
Page 32: Appendix E
LE-37I User’s Manual Appendix E <Programmable GPIO > The GPIO’ can be programmed with the MS-DOS debug program using simple IN/OUT commands. The DC characteristics please refer to GPIO paragraph (Page20). GPIO -o 4E 87 ;enter configuration -o 4E 87... -
Page 33: Appendix F
LE-37I User’s Manual Appendix F <RAID Setting> When use RAID function, it need to enter the BIOS set RAID mode first. [Advanced] [Intel Advanced Menu] [PCH-IO Configuration] [SATA Configuration] [SATA Mode Selection] If this screen stop time is too short, it can be set in the BIOS. -
Page 34: Contact Information
Taiwan Commate computer Inc. 19F., NO.94, Sec. 1, Xintai 5 Rd., Xizhi Dist., New Taipei Address City 22102, Taiwan. +886-2-26963909 +886-2-26963911 Website www.commell.com.tw info@commell.com.tw (General infomation) E-mail tech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan Commate computer Inc. -33-...
