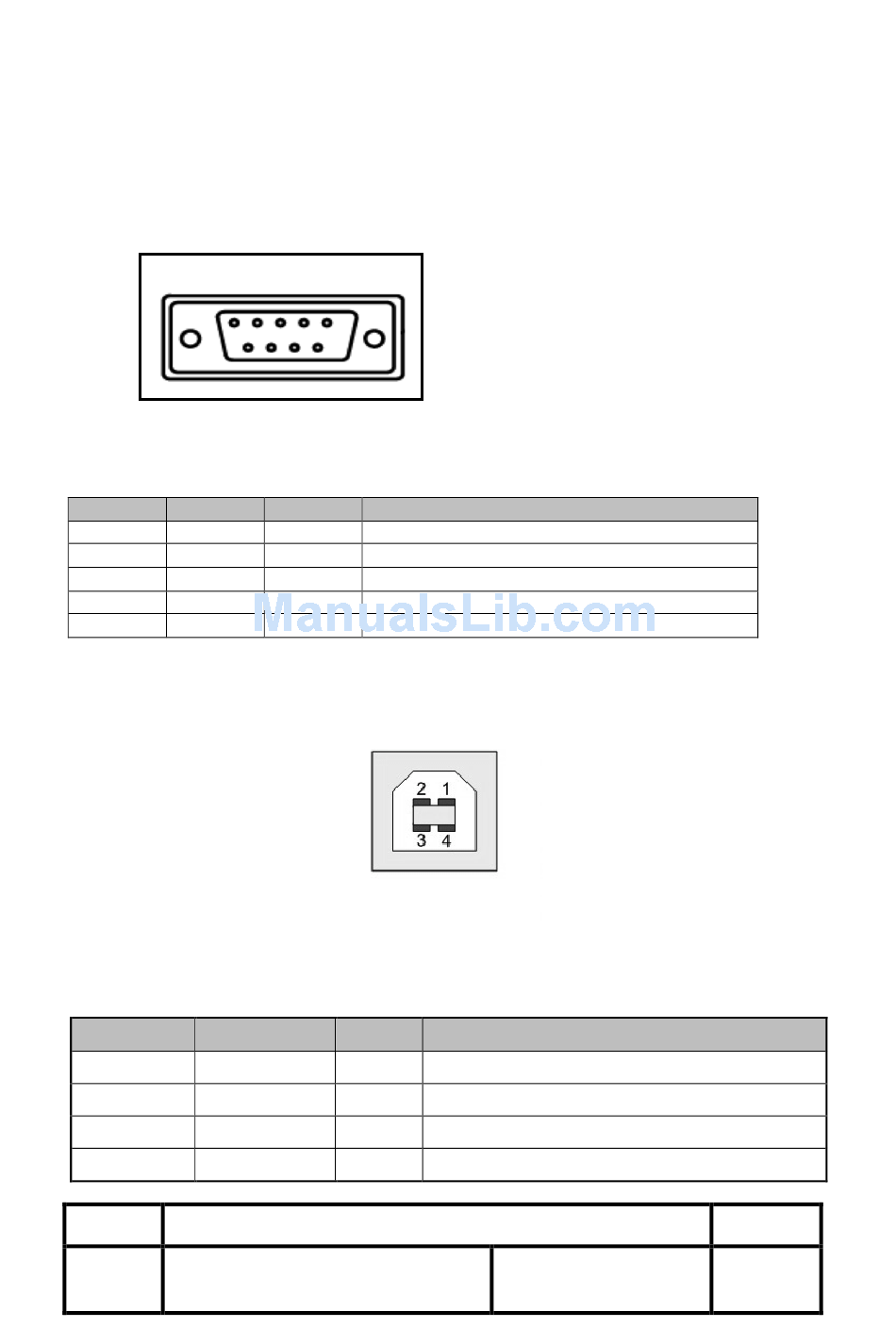

3. Connectors

3.1 RS-232 Interface Connector
5
D-SUB 9 Female Serial Port
PIN SIGNAL
2 TXD
3 RXD
6 DTR
4 DSR
5 GND
3.2 USB Connection
-USB Interface
PIN SIGNAL
1 +5V
2 DATA-
3 DATA+
4 GND
Rev.
Document No.: 19B00293
1.0
1
I/O
- Printer transmit data line RS-232C level
- Printer receive data line RS-232C level
Output Printer handshake to host line RS-232C level
Input Data Send Ready
- System Ground
USB Connector Female Type B
I/O DESCRIPTION
- +5V
- Printer transmit data line
- Printer transmit data line
- System Ground
OM5200 Technical Manual
DESCRIPTION
Date: March 6, 2018 Page: 9
