OmniPrint OM9500F Technical Manual

Thermal receipt printer

Advertisement

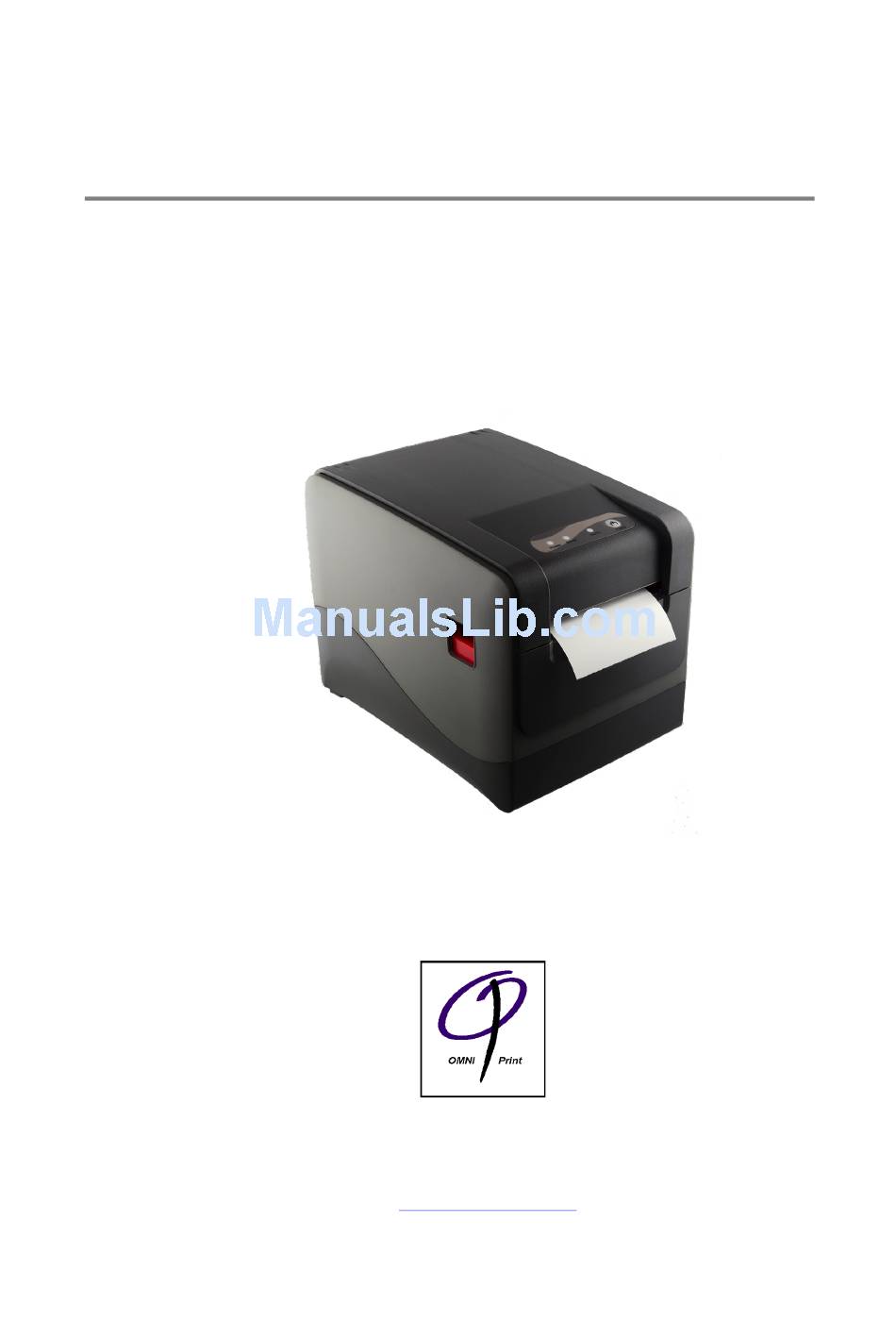

OM9500F

Thermal Receipt printer

Technical Manual

Revision: 1.0
January 8, 2018
Omniprint Inc.
1923 East Deere Ave., Santa Ana, California 92705, U.S.A.
T: 949.833.0080
www.omniprintinc.com
::
F: 949.833.0040

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OM9500F and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for OmniPrint OM9500F

  • Page 1: Thermal Receipt Printer

    OM9500F Thermal Receipt printer Technical Manual Revision: 1.0 January 8, 2018 Omniprint Inc. 1923 East Deere Ave., Santa Ana, California 92705, U.S.A. T: 949.833.0080 F: 949.833.0040 www.omniprintinc.com...
  • Page 2: Table Of Contents

    Data Receiving Timing(Compatibility Mode) 3. Connectors Interface Connectors Electrical Characteristics Drawer kick-out Connector (Modular Connector) 4. Printer Appearance 5. Paper Loading 6. Dip Switch Setting Control Command Summary OM9500F Technical Manual Rev. Document No.: 19B00271 Date: Jan 08, 2018 Page: 2...
  • Page 3: General Specifications

    Alphanumeric characters: Extended graphics: 128 × 7 pages International code pages: 12 ⅹ 24 (Set as default) 2) Font Definition: Font A: 9 ⅹ 24 Font B: OM9500F Technical Manual Rev. Document No.: 19B00271 Date: Jan 08, 2018 Page: 3...
  • Page 4: Auto Cutter

    79.5 ± 0.5 mm(3.13"±0.02") 4) Paper roll size: Roll diameter: 83mm Max 5) Paper roll core diameter: Inside: 12mm(.47") Outside: 18mm(.71") NOTE: Paper must not be pasted to the core. OM9500F Technical Manual Rev. Document No.: 19B00271 Date: Jan 08, 2018 Page: 4...
  • Page 5: Printable Area

    +24 VDC ± 7% 2) Current consumption (at 24V): Operating: Approx. 1.5A (at ASCII Printing) Peak: Approx. 10A (at print duty 100%, For 10 seconds or less) Stand-by: Approx. 0.15A OM9500F Technical Manual Rev. Document No.: 19B00271 Date: Jan 08, 2018 Page: 5...
  • Page 6: Emi And Safety Standards Applied

    10 to 90%RH Storage: 10 to 90%RH (except for paper) [RH] Relative humidity range Operating environment Ambient temperature [°C] < Figure 1.3 Operating Temperature and Humidity Range > OM9500F Technical Manual Rev. Document No.: 19B00271 Date: Jan 08, 2018 Page: 6...
  • Page 7: Configuration

    DESCRIPTION Printer transmit data line RS-232C level Printer receive data line RS-232C level Output Printer handshake to host line RS-232C level Input Data Send Ready System Ground OM9500F Technical Manual Rev. Document No.: 19B00271 Date: Jan 08, 2018 Page: 7...
  • Page 8: Serial Interface Connection Example

    PARITY < Figure 2.1 Serial transmission bit frame > "1" "0" buffer emptied buffer full "1" "0" ready busy ready busy < Figure 2.2 Line transmission with protocol > OM9500F Technical Manual Rev. Document No.: 19B00271 Date: Jan 08, 2018 Page: 8...
  • Page 9: Interface Connector

    System Ground INIT- Input Initialize ERROR- Output Printer Error GROUND System Ground SELECT IN- Input 2.1.7 Interface Connector <D-SUB 9 Female Serial Port> <D-SUB Centronics Parallel Port> OM9500F Technical Manual Rev. Document No.: 19B00271 Date: Jan 08, 2018 Page: 9...
  • Page 10: Data Receiving Timing(Compatibility Mode)

    Data Processing Time tReply ∞ ACKNLG Pulse Width tACK 10 ㎲ BUSY Release Time tnBUSY ∞ ACK Cycle Idle Time tNEXT *The printer latches data at a nStrobe ↓timing OM9500F Technical Manual Rev. Document No.: 19B00271 Date: Jan 08, 2018 Page: 10...
  • Page 11: Connectors

    3) Power Connector 3.3 USB and Ethernet Connection USB Connector Ethernet Connector -USB Interface SIGNAL DESCRIPTION DATA- Printer transmit data line DATA+ Printer transmit data line System Ground OM9500F Technical Manual Rev. Document No.: 19B00271 Date: Jan 08, 2018 Page: 11...
  • Page 12 < Figure 3.1 Drawer Kick-out Connector > 3) Drawer kick-out drive signal Output signal: Output voltage: Approximately 24V Output current: 1A or less OM9500F Technical Manual Rev. Document No.: 19B00271 Date: Jan 08, 2018 Page: 12...
  • Page 13 5. The resistance of the drawer kick-out solenoid must not be less than the specified. Otherwise, an over current could damage the solenoid. 6. Do not connect telecommunication network to the drawer kick-out connector OM9500F Technical Manual Rev. Document No.: 19B00271...
  • Page 14: Printer Appearance

    4. Printer Appearance OM9500F Technical Manual Rev. Document No.: 19B00271 Date: Jan 08, 2018 Page: 14...
  • Page 15: Paper Loading

    8. Tear the excess paper against the serrated edge. 9. To reorder paper, please use part number: TP-80-230. OM9500F Technical Manual Rev. Document No.: 19B00271 Date: Jan 08, 2018...
  • Page 16 OM9500F Technical Manual Rev. Document No.: 19B00271 Date: Jan 08, 2018 Page: 16...
  • Page 17: Dip Switch

    NOTES: 1. To change the printer setting please make sure the power is turned off. 2. When changing the baud rate, make sure the host and printer baud rates match. OM9500F Technical Manual Rev. Document No.: 19B00271 Date: Jan 08, 2018...
  • Page 18: Self Test

    Refer to the Self Test page code details, for example: For English: Select Page 0 For Russian: PC868 Chinese: Two Byte Character Code, SW-4 must be OFF OM9500F Technical Manual Rev. Document No.: 19B00271 Date: Jan 08, 2018 Page: 18...
  • Page 19: Control Command Summary

    Print and feed paper n lines ESC p General pulse ESC t Select character code table ESC { Set/cancel upside-down character printing GS ! Select character size OM9500F Technical Manual Rev. Document No.: 19B00271 Date: Jan 08, 2018 Page: 19...
  • Page 20 GS r Transmit status GS v 0 Print raster bit image GS w Set bar code width < Add > ESC I Full cut ESC m Partial cut OM9500F Technical Manual Rev. Document No.: 19B00271 Date: Jan 08, 2018 Page: 20...
  • Page 21: Command Descriptions

    Example of using the commands. The numbers denoted by <>H is hexadecimal. The numbers denoted by <>B is binary. Print Commands Please see OMNIPrint Printer Control Command Set document for detailed explanation of the command codes. OM9500F Technical Manual Rev.
  • Page 22 Consult your authorized reseller or service representative for help. Properly shielded and grounded cables and connectors must be used in order to meet FCC emission limits. Proper cables and connectors are available from OMNIPRINT INC. authorized dealers. INDUSTRY CANADA CLASS A EMISSION COMPLIANCE STATEMENT This Class A digital apparatus meets all the requirements of the Canadian Interference- Causing Equipment Regulations.
  • Page 23 Voltage Directive 73/23/EEC and Electromagnetic Compatibility Directive 89/336/ECC on the approximation of the laws of the member states of the EEC Commission. OMNIPRINT INC. cannot accept responsibility for any failure to satisfy the protection requirements resulting from a non-recommended modification of the product.
