Paper Cutter; Paper Roll Supply Device; Paper Specification; Printable Area - OmniPrint OM5200 Technical Manual

1.3 Paper Cutter

Manual Tear bar

1.4 Paper Roll Supply Device

1) Supply method: Drop-in paper roll
2) Paper Out sensor:
a) Detection method: Optical Switch

1.5 Paper Specification

1) Paper type:
2) Type:
3) Paper width:
4) Paper thickness:
5) Paper roll size:
6) Paper roll core diameter: Inside: 12mm(.47")
NOTE: Paper must not be pasted to the core.

1.6 Printable Area

1) Paper roll
The printable area of a paper with width of 57.0 mm± 0.5mm (2.25"±0.02") is 47.0 ±
0.2mm (2.84"±0.008")(384dots) and the space on the right and left sides are
approximately 5.0 ± 2mm(0.15"±0.079").
a
b
□□□...............□□
c
d

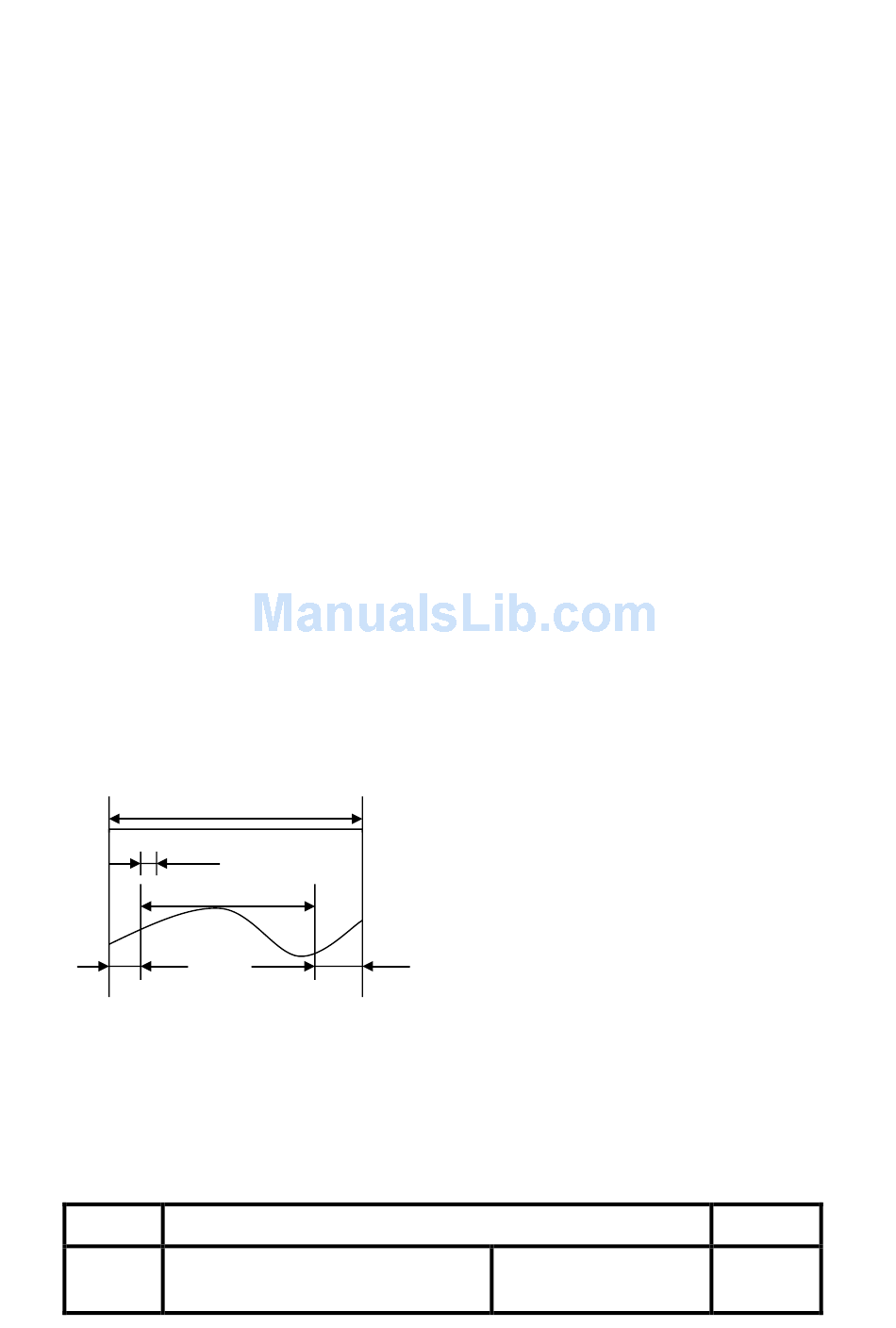

< Figure 1.1 Paper Roll Printable Area >
Rev.
Document No.: 19B00293
1.0
Specified thermal paper (TP58-135)
Paper roll
57mm ± 0.5 mm (2.25"±0.02")
Roll: ∼ 80µm
Roll diameter: 57mm Max (2.25" max)
Outside: 18mm(.71")
e
OM5200 Technical Manual
a=57.5±0.5mm(2.25"±0.02")
b=0.125mm±0.05mm(.056"±.002")
c=47mm±0.2mm(1.85±.008")
d=5.0±0.2mm(0.20"±0.079")
e=5.0±0.2mm(0.20"±0.079")
[All the numeric values are typical.]
Date: March 6, 2018 Page: 4
