Connection

4 Connection

4.1 Soft Starter Connection

The EtherNet/IP Module is powered from the soft starter.
®
VLT Compact Starter MCD 201/MCD 202
4 4
For the EtherNet/IP Module to accept fieldbus commands, fit a link across terminals A1–N2 on the soft starter.
®
VLT Soft Starter MCD 500
If the MCD 500 has to be operated in remote mode, input links are required across terminals 17 and 25 to terminal 18. In
hand-on mode, links are not required.
NOTICE
FOR MCD 500 ONLY
Control via the fieldbus communication network is always enabled in local control mode and can be enabled or
disabled in remote control mode (parameter 3-2 Comms in Remote). See the VLT
for parameter details.
EtherNet/IP Module Connections
A1
N2
3
1
2
3

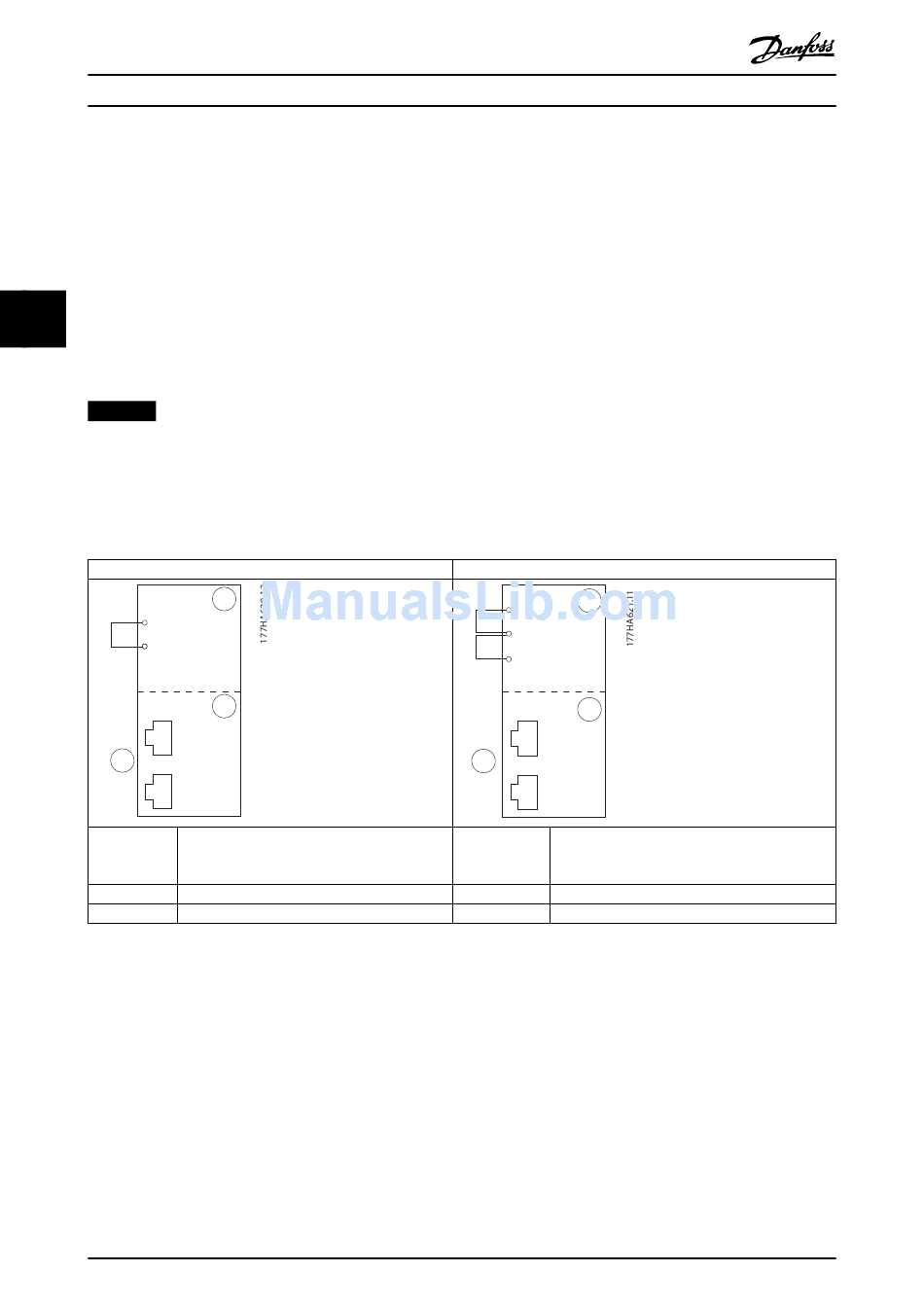

Table 4.1 Connection Diagrams
8
EtherNet/IP Module
MCD 201/202
1
2
A1, N2: Stop input
EtherNet/IP Module
RJ45 Ethernet ports
Danfoss A/S © 05/2017 All rights reserved.
®
Soft Starter MCD 500 Operating Guide
MCD 500
1
17
18
25
2
3
1 (Auto-on mode)
17, 18: Stop input
25, 18: Reset input
2 EtherNet/IP Module
3 RJ45 Ethernet ports
MG17Q102
