Device Configuration
Configuring the device using the Ethernet Device
Configuration Tool:
1. Attach the module to a soft starter.
2. Connect Ethernet port 1 or port 2 on the module
to the network.
3. Apply control power to the soft starter.
4. Start the Ethernet Device Configuration Tool.

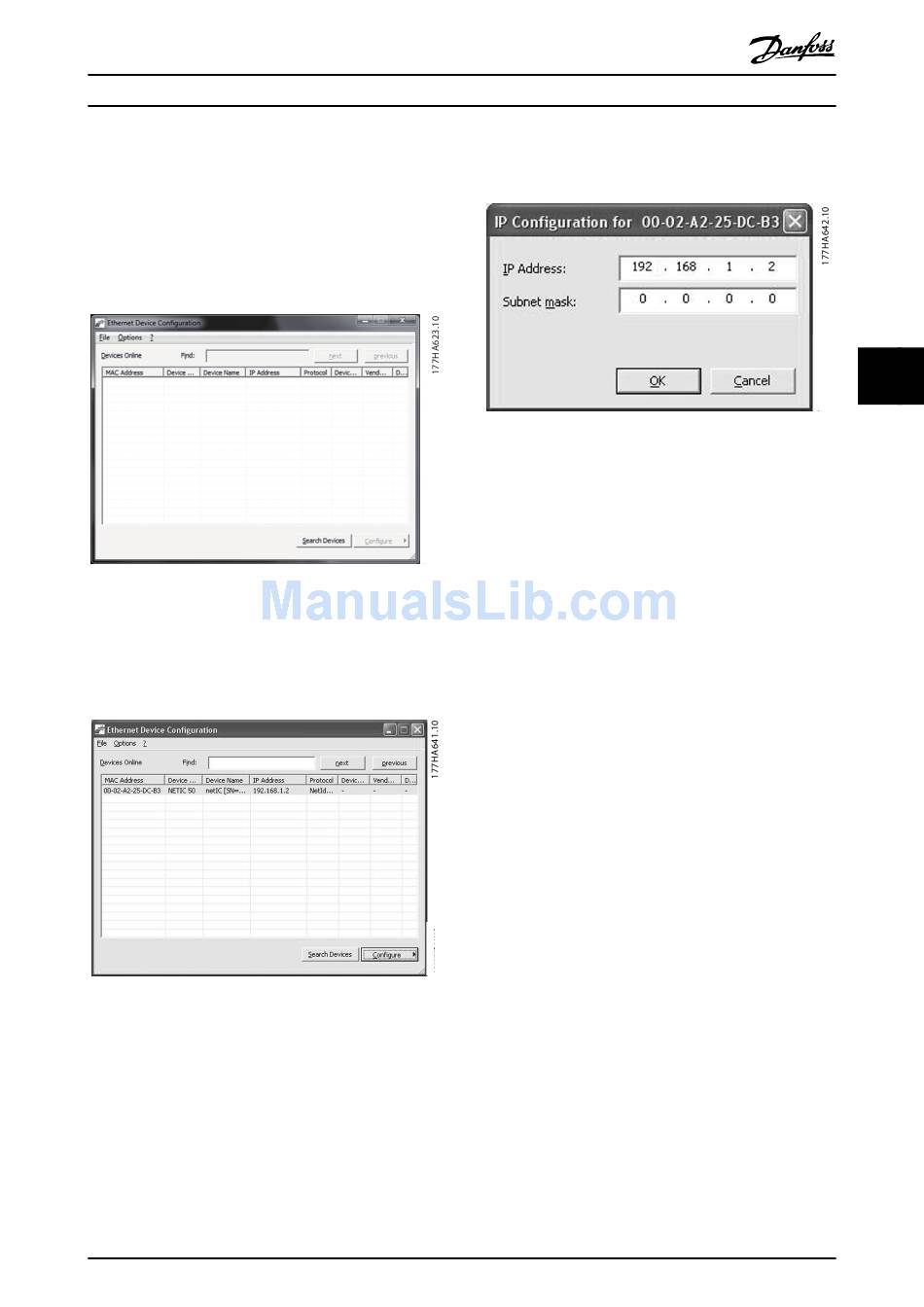

Illustration 5.2 Starting the Tool
5. Click Search Devices.
5a The software searches for connected
devices.
Illustration 5.3 The Tool Shows the Connected Devices
MG17Q102
Installation Guide
6.
Illustration 5.4 Setting a Static IP Address
Danfoss A/S © 05/2017 All rights reserved.
To set a static IP address, click Configure and
select Set IP address.
