Network Design
Installation Guide
8.4 Combined Topologies
A single network can include both star and line
components.
8
8

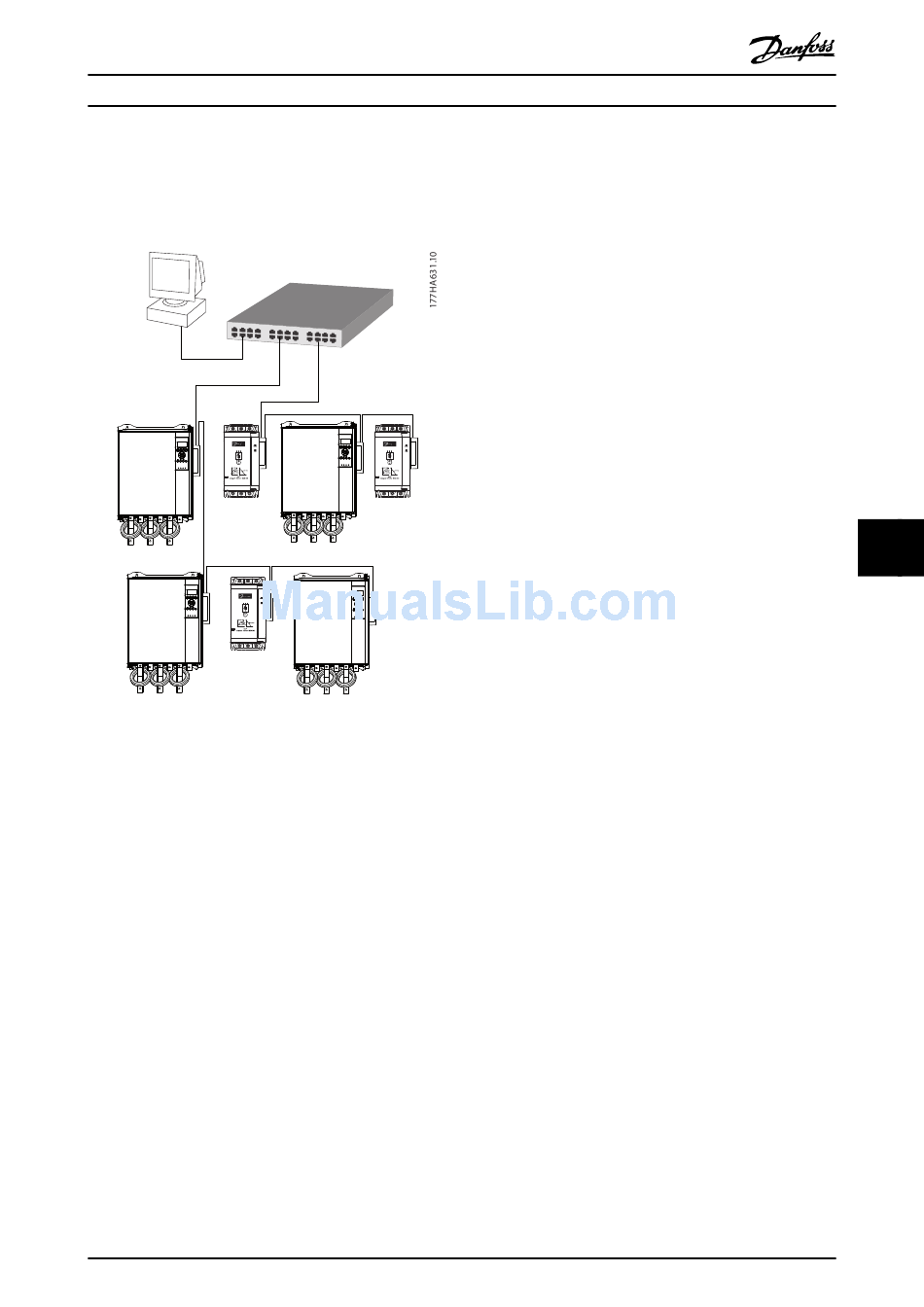

Illustration 8.4 Combined Star/Line Network Topology
MG17Q102
Danfoss A/S © 05/2017 All rights reserved.
23
