Counterweights - Steelcase 1-Hi Assembly Manual

NOTE: 1.5 -Hi cases with a 12" file drawer
require the same counterweight packages
for Universal and Bases with Feet.
3.

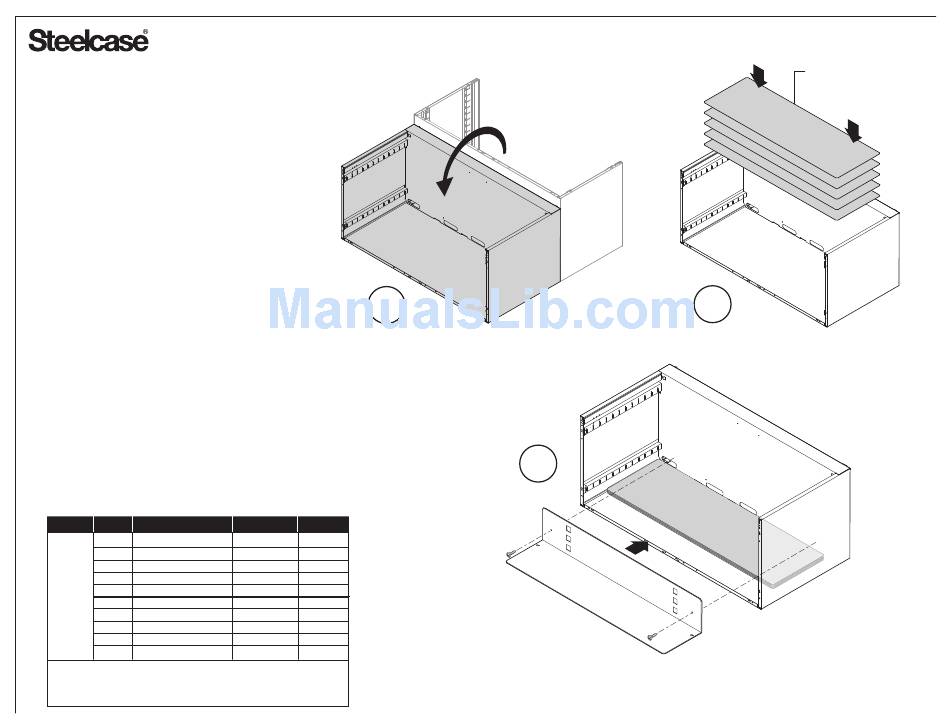

Rotate case assembly onto its back.
4.
Lay the five (5) counterweight plates in the
back of the case assembly.
5.
Place the counterweight cover over the
counterweight plates and secure with two (2)
#8 x 3/8" self-drilling screws.
NOTE: If the case will be attached to a panel via a
storage to panel bracket, the counterweight will need
to be installed slightly off center in 30" & 36" wide
cases (approx. 1/8" for 30" cases and 1/16" for 36"
wide cases) to prevent interference with the storage
to panel bracket hex nuts. For all other applications,
center the counterweight in the back of the case.
6.
Rotate case assembly back onto its glides.
7.
Re-install suspensions removed in Step 2.
Case Ht. Size Base
18 x 30 Univ., F1, or c:scape
18 x 36 Univ., F1, or c:scape
18 x 42 Univ., F1, or c:scape
24 x 30 Univ., F1, or c:scape
1.5H
24 x 36 Univ., F1, or c:scape
18 x 30 Univ., F1, or c:scape
18 x 36 Univ., F1, or c:scape
18 x 42 Univ., F1, or c:scape
24 x 30 Univ., F1, or c:scape
24 x 36 Univ., F1 or c:scape
Univ. = Universal
F1 = FrameOne Feet
c:scape = c:scape glides
3
Case Config. CW Pkg.
D/D or O/D A
D/D or O/D B
D/D or O/D C
D/D or O/D A
D/D or O/D B
D/O D
D/O E
D/O F
D/O D
D/O E
D = Drawer
O = Open
4
5

COUNTERWEIGHTS

(5 USED)
Page 5 of 6
939500395 Rev E
