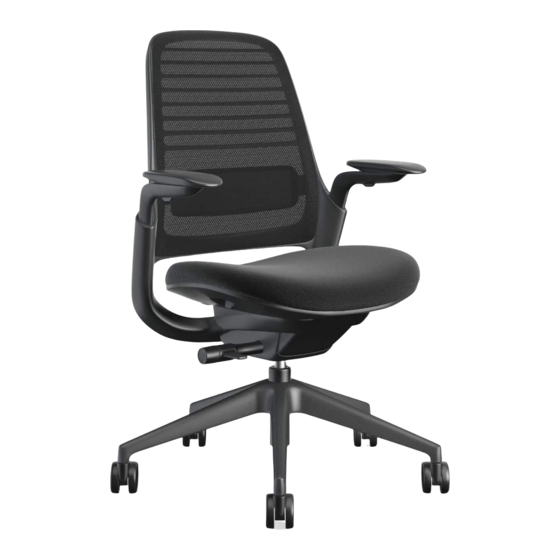

Steelcase 1 Series Instructions

Back flexor/upholstery

Hide thumbs Also See for 1 Series:

If you have a problem, question, or request, call

your local dealer, or Steelcase Line 1 at

888.STEELCASE (888.783.3522)

for immediate action by people who want to help you.

(Outside the U.S.A., Canada, Mexico, Puerto Rico,

and the U.S. Virgin Islands, call: 1.616.247.2500)

Or visit our website: www.steelcase.com

2017 Steelcase Inc.

Grand Rapids, MI 49501

U.S.A.

Printed in U.S.A.

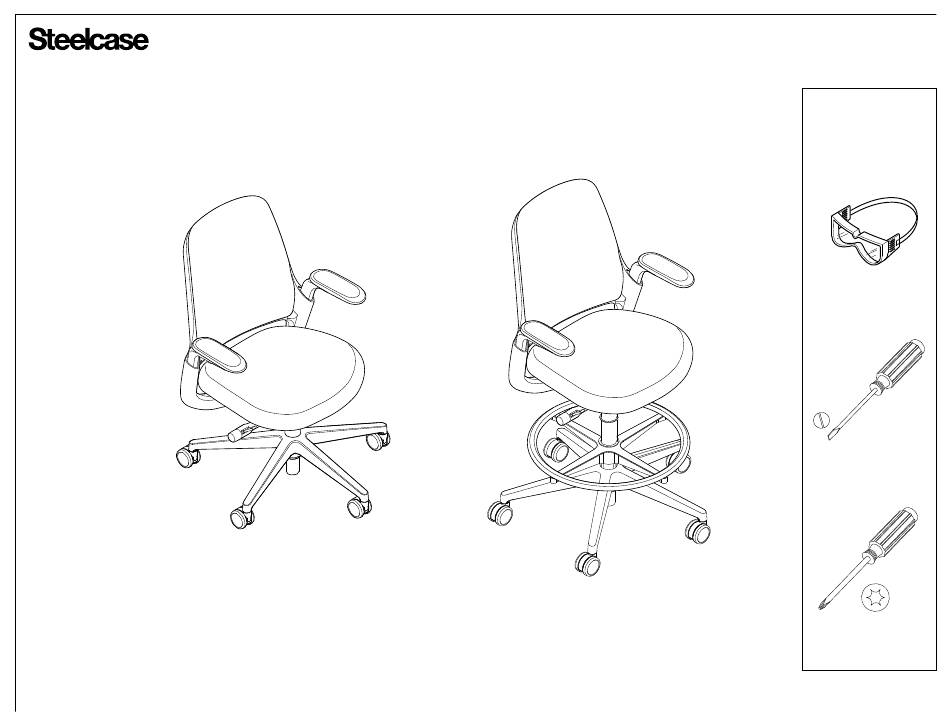

Steelcase Series 1 Back Flexor/Upholstery

CS Instructions

T-10

T-15

Page 1 of 2

110117 Rev A

Table of Contents

Need help?

Do you have a question about the 1 Series and is the answer not in the manual?

Page 1 Steelcase Series 1 Back Flexor/Upholstery ® CS Instructions If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at T-10 888.STEELCASE (888.783.3522) T-15 for immediate action by people who want to help you. (Outside the U.S.A., Canada, Mexico, Puerto Rico, and the U.S.
Page 2 NOTE: Use flathead screw driver ® T-20 Replacing Flexor/ Upholstery Assembly NOTE: Extend chair to maximum height with height adjustment lever, and slide seat to most forward position. T-15 Remove flexor screws (4x). Pull out the bottom Flexor assembly. Push the side of the plastic flexor toward the frame with flathead screw driver, then pull out to disengage the Flexor assembly from the frame.
