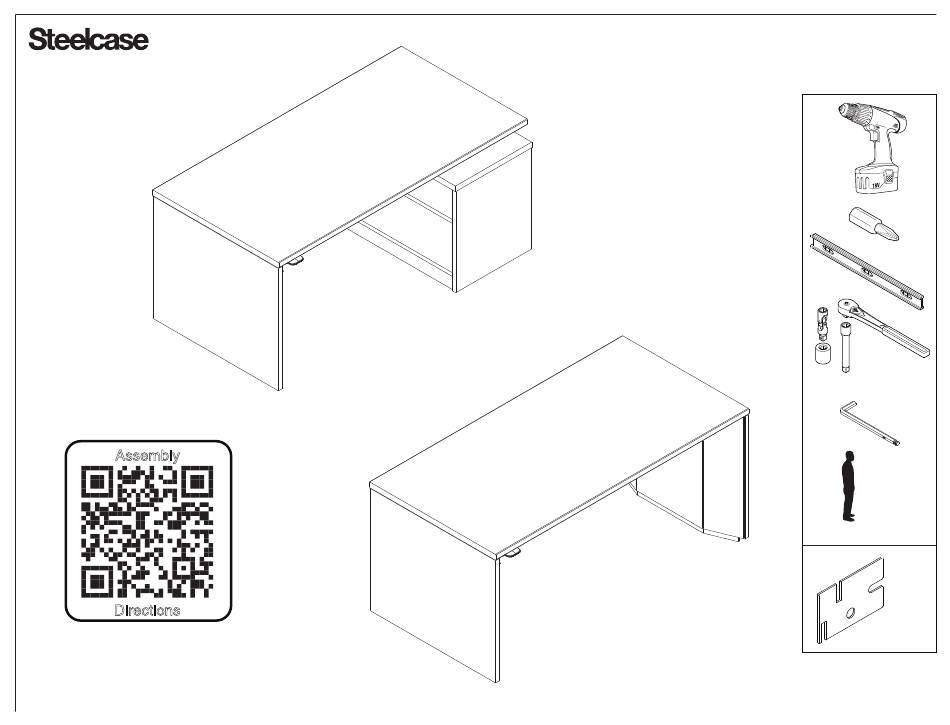

- Page 1 ® Slim Leg Height Adjustable Desk Phillips #2 (Integrated) 10mm Assembly (Freestanding) Directions *INCLUDED* Page 1 of 22 © 2021 Steelcase Inc. P/n 1465047001 Grand Rapids, MI 49501 U.S.A. Doc # 159081 Rev A Printed in U.S.A.
-
Page 2: Table Of Contents
Wire Management Attachment Bracket Attachment Cable Tray Attachment Brace Attachment End Cap Attachment End Panel Alignment Suggested Thru-Mount, Grommet & Monitor Arm Modesty Panel Attachment Case Installation Magnetic Cable Tray Page 2 of 22 P/n 1465047001 Doc # 159081 Rev A... - Page 3 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Important: Changes or modifications to this product not authorized by Steelcase could void your authority to operate the product. Page 3 of 22...
- Page 4 PLUG ILLUSTRATION DISCLAIMER - Illustrations shown here may not match your product. Depending on your region, the plug pin size OUTLET BOX and shape may change. Figure 2 OPERATING INSTRUCTIONS Grounding methods Page 4 of 22 Please refer to the provided User Guide, which is also available at www.steelcase.com P/n 1465047001 Doc # 159081 Rev A...
-
Page 5: Parts Provided
If you have ordered a Freestanding or Integrated table, please confirm you have received the correct packages by referencing the order information. Confirm that unit or shipping container includes the Steelcase parcel number(s) as identified below. Miscellaneous Boat Brace: 1455351001 or 145535002... -
Page 6: Installing Slim Leg
Then secure with (2) screws as shown. Gage Tool Start with end screws first #10x1” M6x12mm Top View Back Edge Top View #10 X 1” SCREWS Front Side Edge Page 6 of 22 Edge P/n 1465047001 Doc # 159081 Rev A... - Page 7 Installing Slim Leg With worksurface upside-down, screw Upper Shroud and Column to Worksurface. Slide Lower Shroud around column through hole and bolt at the bottom in four locations. Prevent scratching M6x25 Page 7 of 22 P/n 1465047001 Doc # 159081 Rev A...
-
Page 8: Installing Integrated Leg
Installing Integrated Leg #10x1” M6x25 M6x12 Attach Foot and Glide Prevent scratching assembly with 4 bolts Page 8 of 22 P/n 1465047001 Doc # 159081 Rev A... -
Page 9: Wire Management Attachment
Wire Management Attachment Power Motor Cable Power Lifting Column 2 Filter Lifting Filter Column 1 #6 X 1.5” SCREWS Controller #10-12 X 2” SCREWS Motor Cable Contoller Sensor Page 9 of 22 P/n 1465047001 Doc # 159081 Rev A... -
Page 10: Bracket Attachment
Attach cable management brackets and wire cover bracket Prevent sensor damage CABLE MANAGEMENT CLIPS TIP: Cable clips provided for installer to apply where necessary outside of cable tray. #5x5/8” Page 10 of 22 P/n 1465047001 Doc # 159081 Rev A... -
Page 11: Cable Tray Attachment
Cable Tray Attachment Page 11 of 22 P/n 1465047001 Doc # 159081 Rev A... -
Page 12: Brace Attachment
Brace Attachment Attach Brace CENTER ~16mm #10x1” Page 12 of 22 P/n 1465047001 Use all provided screws for brace. Doc # 159081 Rev A Screw amount is dependent on brace size. -
Page 13: End Cap Attachment
End Cap Attachment #10x1” *INTEGRATED TABLE ONLY* Page 13 of 22 P/n 1465047001 Doc # 159081 Rev A... - Page 14 Page 14 of 22 P/n 1465047001 Doc # 159081 Rev A...
-
Page 15: End Panel Alignment
End Panel Alignment Page 15 of 22 P/n 1465047001 Doc # 159081 Rev A... - Page 16 End Panel Attachment Page 16 of 22 P/n 1465047001 Doc # 159081 Rev A...
-
Page 17: Suggested Thru-Mount, Grommet & Monitor Arm
115 mm (4.5”) 28” Plan Depth 29” Plan Depth 30” Plan Depth 34” Plan Depth 35” Plan Depth 36” Plan Depth 101.6 mm (4”) 38.10 mm (1.5”) 158.75 mm (6.25”) Page 17 of 22 P/n 1465047001 Doc # 159081 Rev A... -
Page 18: Modesty Panel Attachment
Modesty Panel Attachment #10x1” Page 18 of 22 P/n 1465047001 Doc # 159081 Rev A... - Page 19 Modesty Panel Attachment #10x1” NOTE: Installation is the same for Freestanding & Integrated tables. Page 19 of 22 P/n 1465047001 Doc # 159081 Rev A...
-
Page 20: Case Installation
Case Installation Case is built seperately. Not part of Slim HAD UL 962 Listing Refer to case installation document 133317 Page 20 of 22 P/n 1465047001 Doc # 159081 Rev A... - Page 21 Case Installation Page 21 of 22 P/n 1465047001 Doc # 159081 Rev A...
-
Page 22: Magnetic Cable Tray
Magnetic Cable Tray Not part of Slim HAD UL 962 Listing Page 22 of 22 P/n 1465047001 Doc # 159081 Rev A...
