Steelcase 1 Series User Manual

Back repair

Hide thumbs Also See for 1 Series:

Steelcase Series 1 Back Repair - User Guide

Issue: The back leans too far back and won't go upright.

Cause: Assembled incorrectly, the upper pin is not engaged properly.

10mm

If you have a problem, question, or request, call

your local dealer, or Steelcase Line 1 at

888.STEELCASE (888.783.3522)

for immediate action by people who want to help you.

(Outside the U.S.A., Canada, Mexico, Puerto Rico,

and the U.S. Virgin Islands, call: 1.616.247.2500)

Or visit our website: www.steelcase.com

2017 Steelcase Inc.

Grand Rapids, MI 49501

Page 1 of 4

U.S.A.

113017 Rev A

Printed in U.S.A.

Table of Contents

Need help?

Do you have a question about the 1 Series and is the answer not in the manual?

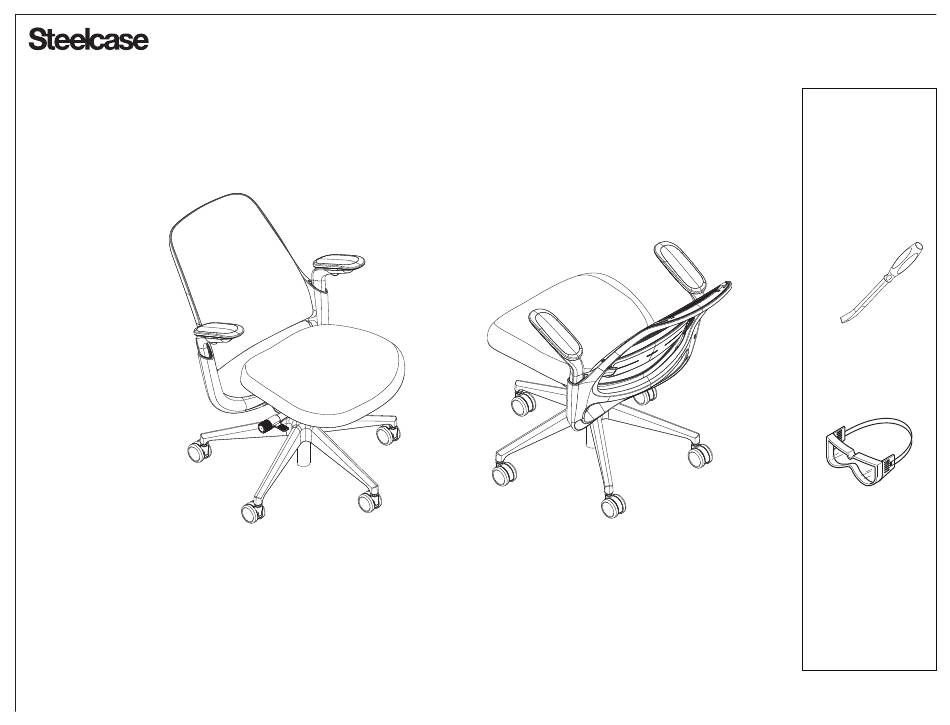

Page 1 Steelcase Series 1 Back Repair - User Guide ® Issue: The back leans too far back and won’t go upright. Cause: Assembled incorrectly, the upper pin is not engaged properly. 10mm If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522)
Page 2 ® SQUARE BLACK BUTTON Remove Seat Pull seat depth lever out (1a) (Optional: insert paperclip wire as shown in 1b) and slide seat forward. Push and hold two square black buttons near the rear of the seat (2a) as you slide the seat forward and off (2b). Page 2 of 4 113017 Rev A...
Page 3 ® BOOST KNOB IN Back Assembly “BOOST” POSITION Removal NOTE: When installed incorrectly, the back frame tab will be above the mechanism pin. When installed correctly, the back frame tab will be below the pin and the pin should be in the back assembly groove. Put boost knob in the “boost”...
Page 4 ® Back Assembly Replacement Install new back assembly (5a) and ensure that the pins are aligned correctly (5b). Align seat rails to seat, slide rearward until click. Adjust seat to assure proper assembly. Page 4 of 4 113017 Rev A...
