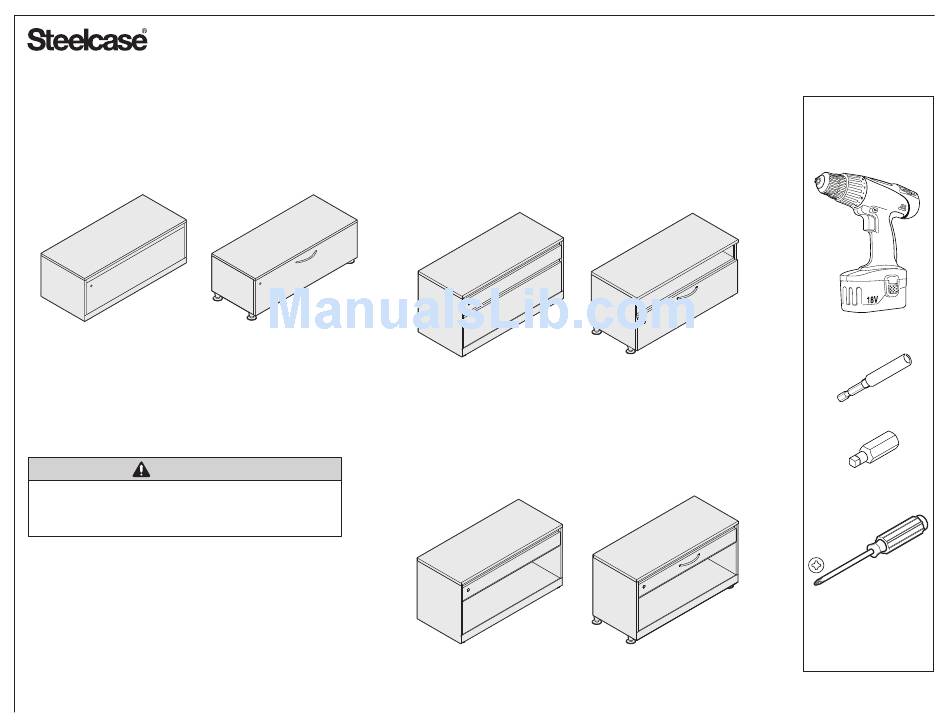

1-Hi 18" & 24" Deep Cabinets
(pages 2 - 4)
CAUTION
Please refer to the Steelcase Specification Guide
for Storage for additional guidance on determining
the correct counterweight package.
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
©
2017 Steelcase Inc.
Grand Rapids, MI 49501
U.S.A.
Printed in U.S.A.

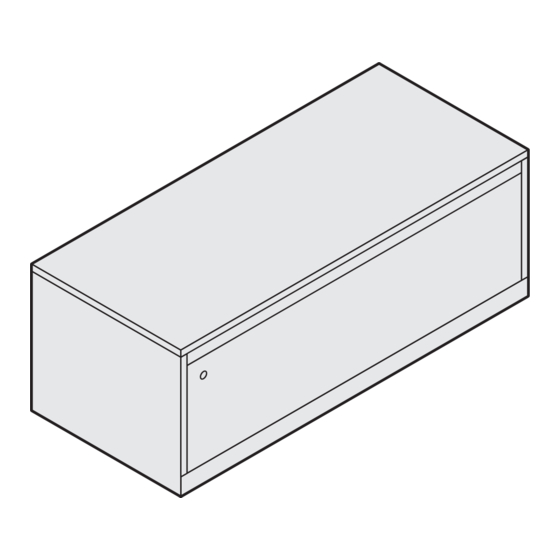

Universal Storage 1-Hi and 1.5-Hi
Lateral File Counterweight Package
1.5-Hi 18" & 24" Deep Cabinets
Drawer/Drawer or Open/Drawer
(pages 5 - 7)
1.5-Hi 18" & 24" Deep Cabinets
Drawer/Open
(page 8)
#2
SQUARE
Page 1 of 6
939500395 Rev E
Advertisement
Table of Contents
Related Manuals for Steelcase 1-Hi
Summary of Contents for Steelcase 1-Hi
- Page 1 Storage for additional guidance on determining the correct counterweight package. If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you.
- Page 2 For 1-Hi Case with a File (12"H) Drawer: Rotate the top of the suspension toward the center of the cabinet to disengage (2a). Pull up to disengage the second tab in front (2b). Push the suspension to the rear of the case Pull drawer outward (1a).
- Page 3 Universal Base COUNTERWEIGHTS Rotate case assembly onto its back. (5) USED NOTE: 1-Hi cases with a 12” file drawer and c:scape or FrameOne feet require heavier counterweight packages than cases with Universal bases. (Cabinets with Universal Bases) Lay the five (5) counterweight plates in the back of the case assembly.
- Page 4 For 1.5-Hi Case with a File (12"H) Drawer: Rotate the top of the suspension toward the center of the (Drawer/Drawer or Open/Drawer Configuration) cabinet to disengage (2a). Pull up to disengage the second tab in front (2b). Push the suspension to the rear of the case to disengage the hook in the back and remove (2c).
- Page 5 COUNTERWEIGHTS (5 USED) NOTE: 1.5 -Hi cases with a 12” file drawer require the same counterweight packages for Universal and Bases with Feet. Rotate case assembly onto its back. Lay the five (5) counterweight plates in the back of the case assembly. Place the counterweight cover over the counterweight plates and secure with two (2) #8 x 3/8”...
- Page 6 COUNTERWEIGHT For 1.5-Hi Case with a Box (6"H) Drawer Only: (Drawer/Open Configuration) NOTE: Top removed for clarity. NOTE: 1.5-Hi cases with only a 6” drawer require the same counter-weight packages for Universal and Bases with Feet. Remove box drawer by performing similar procedure to steps 1 and 2 on page 4.
