Atlona AT-JUNO-451 Installation Manual

4K HDR Four-Input HDMI Switcher
with Auto-Switching and Return
Please check http://www.atlona.com/product/AT-JUNO-451
for the most recent firmware update or manual.

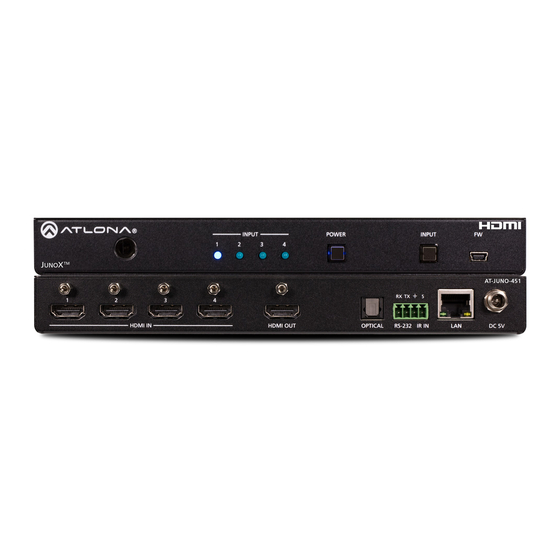

The Atlona JunoX™ 451
formats. It is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma
sampling, as well as HDMI data rates up to 18 Gbps. The JunoX 451 is ideal for residential
applications with the latest as well as emerging 4K/UHD and HDR sources and displays. It is
compatible with all video resolutions, audio formats, and color space formats supported in the
HDMI 2.0a specification, plus the ability to pass metadata for HDR content. The JunoX 451 includes
EDID management features and automatic input switching. It also supports the HDMI Audio Return
Channel for receiving digital audio from a television, and includes a TOSLINK digital audio output
for sending this audio to an AV receiver or soundbar. This JunoX Series HDMI switcher can be
controlled via Ethernet, RS-232, and IR. A handheld IR remote control is included.

Package Content

• 1 x Unit
• 1 x Female captive screw connector
5 pin: RS-232 and IR IN
• 2 x Mounting plates
• 4 x Rubber feet
• 4 x Screws
• 1 x IR remote control
• 1 x Installation guide
atlona.com
Optical Audio
AT-JUNO-451 Installation Guide
is a 4x1 HDMI switcher for high dynamic range (HDR)
(AT-JUNO-451)
Toll free: 1-877-536-3976
Local: 1-408-962-0515
