5.4.

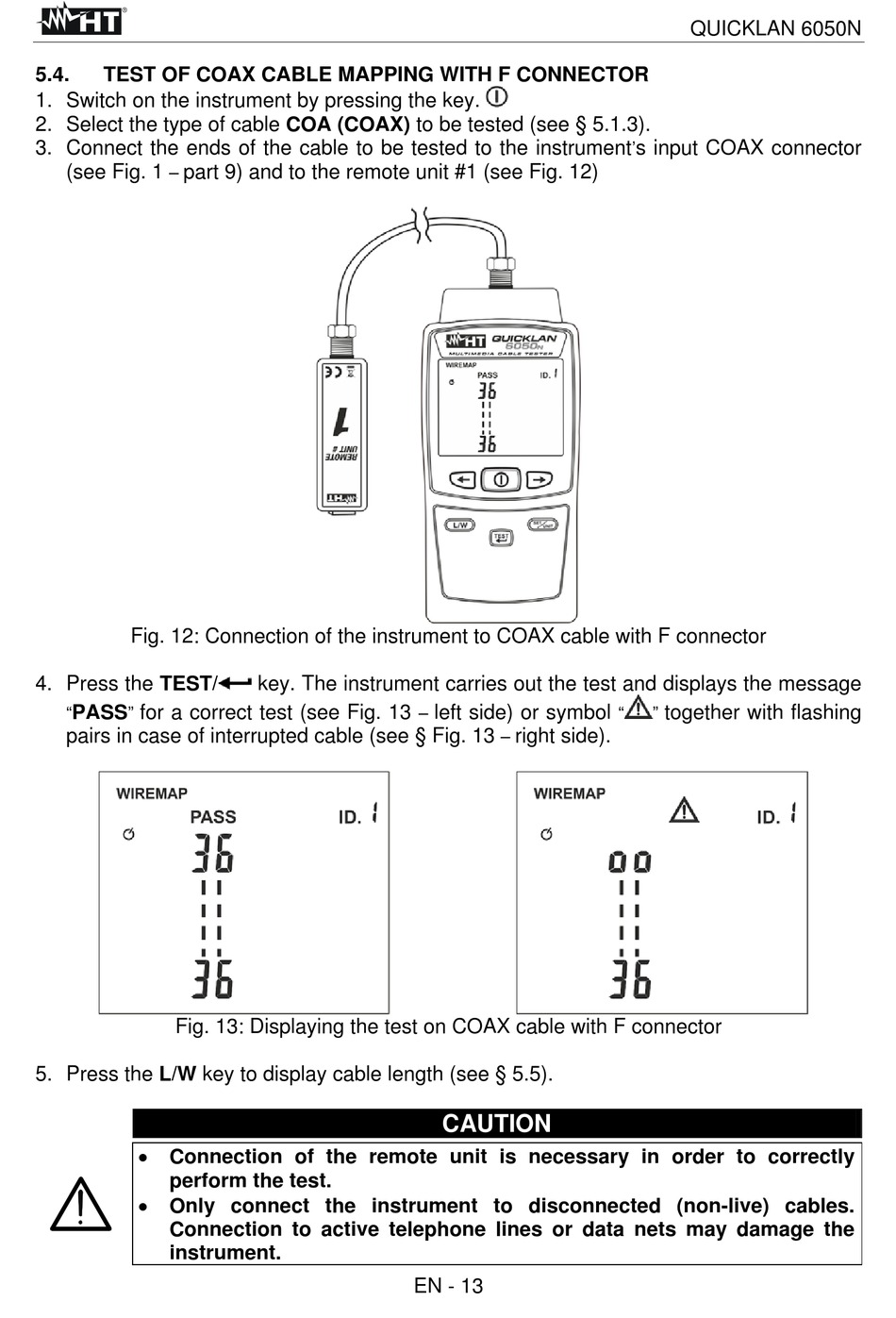

TEST OF COAX CABLE MAPPING WITH F CONNECTOR

1. Switch on the instrument by pressing the key.
2. Select the type of cable COA (COAX) to be tested (see § 5.1.3).
3. Connect the ends of the cable to be tested to the instrument
(see Fig. 1 part 9) and to the remote unit #1 (see Fig. 12)
–
Fig. 12: Connection of the instrument to COAX cable with F connector
4. Press the TEST/
PASS for a correct test (see Fig. 13
" "
pairs in case of interrupted cable (see § Fig. 13
Fig. 13: Displaying the test on COAX cable with F connector
5. Press the L/W key to display cable length (see § 5.5).
 Connection of the remote unit is necessary in order to correctly
perform the test.
 Only connect the instrument to disconnected (non-live) cables.
Connection to active telephone lines or data nets may damage the
instrument.
key. The instrument carries out the test and displays the message
–
EN - 13
left side) or symbol
right side).
–
CAUTION
QUICKLAN 6050N
s input COAX connector
'
together with flashing
" "
