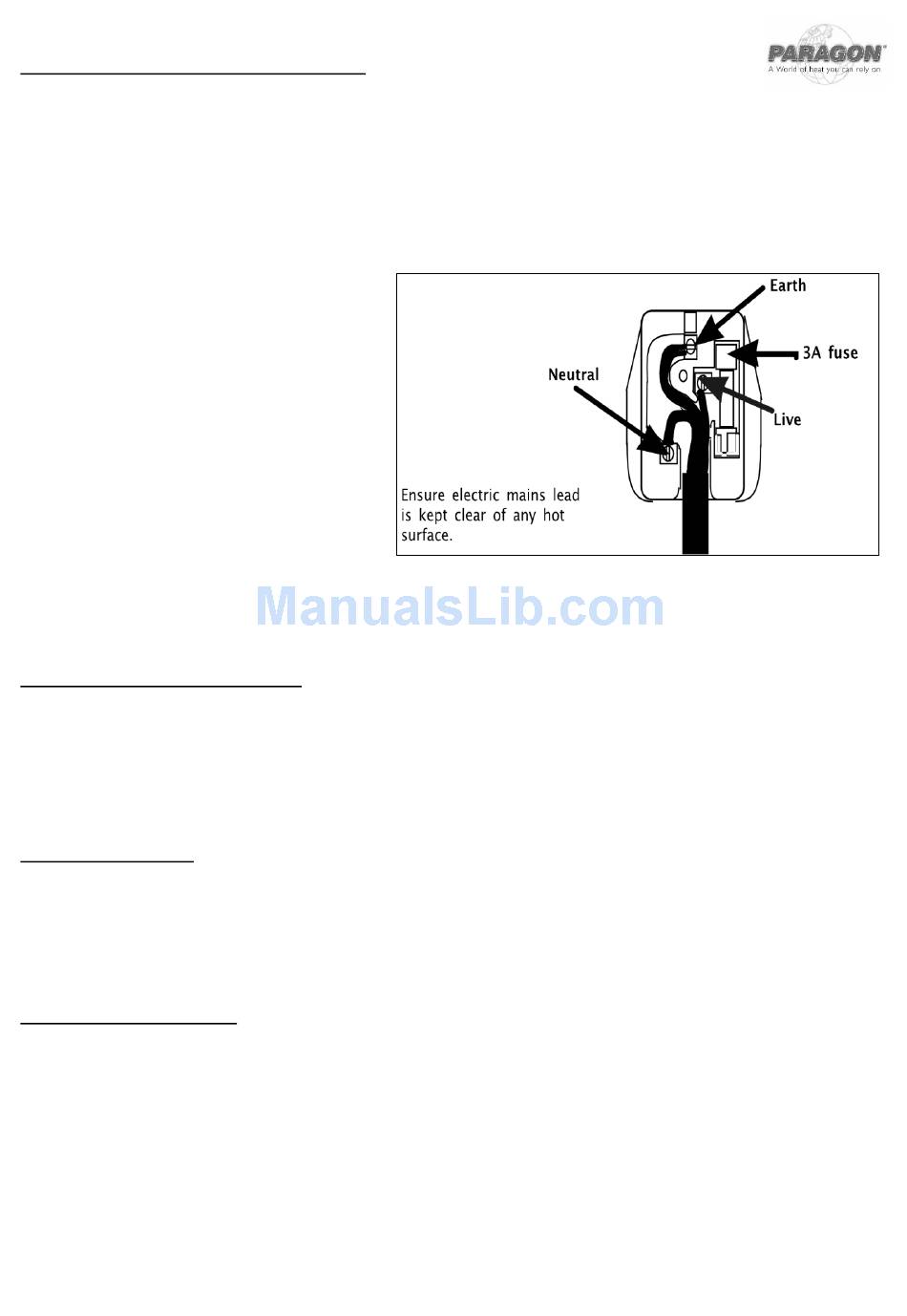

CONNECTING TO THE ELECTRICAL FITTING
WARNING:- THIS APPLIANCE MUST BE EARTHED AND THE PLUG MUST BE POSITIONED SO THAT IT IS ACCESSIBLE
BY THE USER.
The current I.E.E. regulation must be complied with regarding all external wiring between the appliance and the
electricity supply.
The wiring in the mains lead on this appliance colour coded as follows:-
Green & Yellow
Blue
Brown
INPUT CABLE SPECIFICATION:-
2
24/0.2 - 0.75mm - 3 core
Rated voltage 220-240V ~
Supply frequency 50Hz - Fuse 3A.
The fire must be protected by a 3A fuse.
CONNECTING TO THE GAS SUPPLY
Determine where the gas supply is to be connected to the appliance. This may be done from the front of the unit
from either the left or right side, or a concealed fitting from the rear.
FRONT CONNECTION
The supply may run either side of the appliance to the left or right in Ø8mm pipe. The inlet elbow should be rotated
to the required position and the end of the formed to enter the inlet elbow. A suitable isolating cock should always
be fitted in the supply feed to the fire to facilitate servicing.
CONCEALED CONNECTION
The supply must run to the rear right hand side of the unit and fed through the grommet hole between the fan
interface and it's support plate. Take into account the requirements of BS 6891 1988 dealing with enclosed pipes. An
8 mm restrictor elbow can be positioned under the fire on the right hand side with a compression connection at each
outlet.
When installing the firebox into a cavity wall, any part of the installation pipe work installed in the void open to the
cavity wall must be enclosed in a gas tight sleeve. It must be sealed at the point at which the sleeved installation pipe
enters the fire (The Gas Safety (Installation and Use) Regulations Certificate of exemption number 1 of 1996). Where
the pipe enters the fire the outer sleeve must be sealed to the grommet and the pipe must be sealed to its outer sleeve
using suitable mastic.
www.charltonandjenrick.co.uk
- Earth
- Neutral
- Live
TURN OFF ANY APPLIANCES THAT ARE FED BY THE METER.
ISOLATE THE GAS SUPPLY BY TURNING OFF AT THE METER.
