SURROUND
A non-combustible
hearth must be
provided beneath the
appliance. The hearth
must be symmetrically
disposed about the fire
position with a
minimum thickness of
12 mm and the
perimeter 50mm
above floor level. The
width must extend a
minimum of 150 mm
either side of the
fireplace opening and a
depth of 310 mm from
the vertical fixing plane
(300 mm from the
front of the fuel bed). Any combustible material above the opening must be removed up to a height of 590 mm above
hearth level.
Purpose-built superimposed fire-resistant hearths and back panels, specified as suitable by the
manufacturers, or a suitable proprietary fire surround with a 100
IMPORTANT: Care should be taken to prevent any damage being caused to surrounding soft furnishings or decoration,
e.g. many embossed vinyl wall coverings may become discoloured if placed too close to the appliance.
If the appliance is to be installed in a room with anything other than conventional cavity wall construction, then
provision must be made (e.g. special surround, false chimney breast) to accommodate the firebox. A minimum depth
of 170 mm (or 143 mm when optional spacer fitted) is required with an opening in the fireplace fascia of 390 mm X
560mm.
The flue length must be between 100mm (min) and 1m (max).
www.charltonandjenrick.co.uk

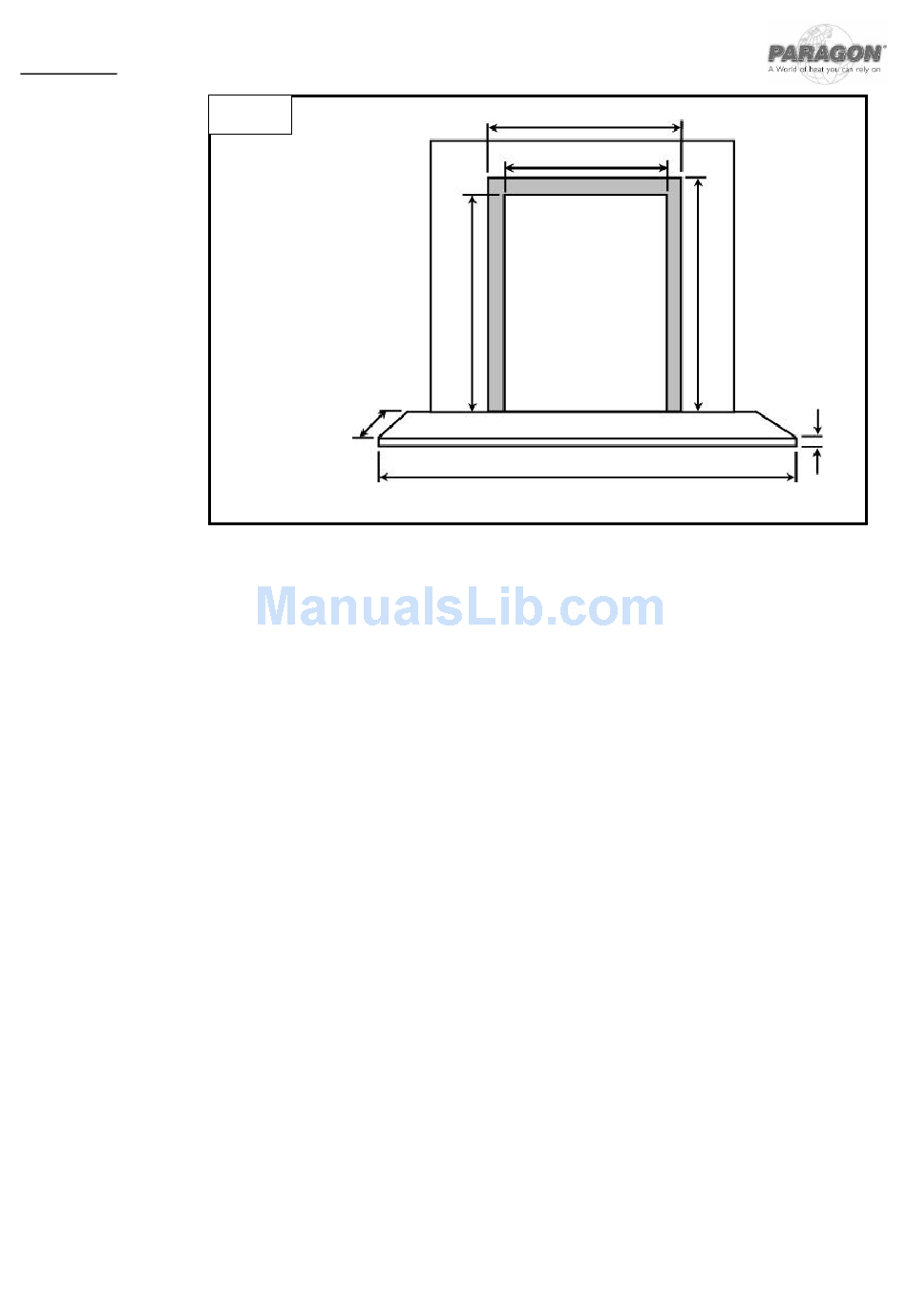

Fig 2
560mm
300mm (min.)
Forward of the
surround back
panel.
500mm
390-420mm
CUTOUT IN
SURROUND
FASCIA
700mm (min.)
o
C rating may be used.
19
