SECTION EIGHT Siting the Appliance (installation instructions)

FLUE TERMINAL POSITION
The flue outlet must terminate on an outside wall.

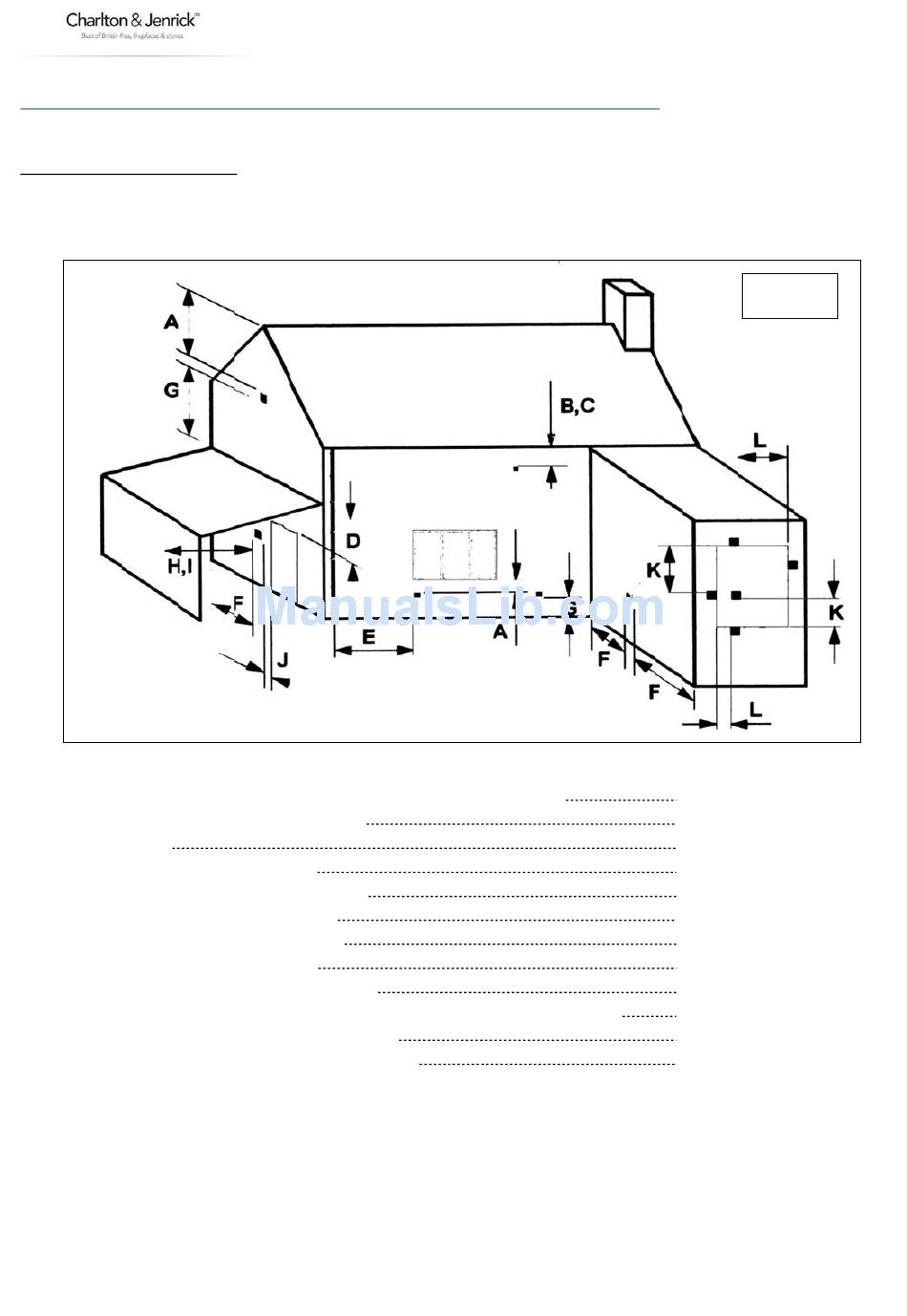

The minimum flue terminal clearances, which must be maintained, are shown in fig.1: -
A. Directly below an operable window or other opening, eg. air brick
B. Below gutters, soil pipes or drain pipes
C. Below eaves
D. Below balconies or car port roof
E. From vertical drain pipes and soil pipes
F. From internal and external corners
G. Above ground, roof or balcony level
H. From a surface facing a terminal
I. From a terminal facing a terminal
J. From an opening in the car port into the dwelling, e.g. door, window, etc.
K. Vertically from a terminal on the same wall
L. Horizontally from a terminal on the same wall
18
Fig 1
300mm
75mm
200mm
200mm
75mm
150mm
150mm
600mm
1200mm
1200mm
1500mm
300mm
