Main Window

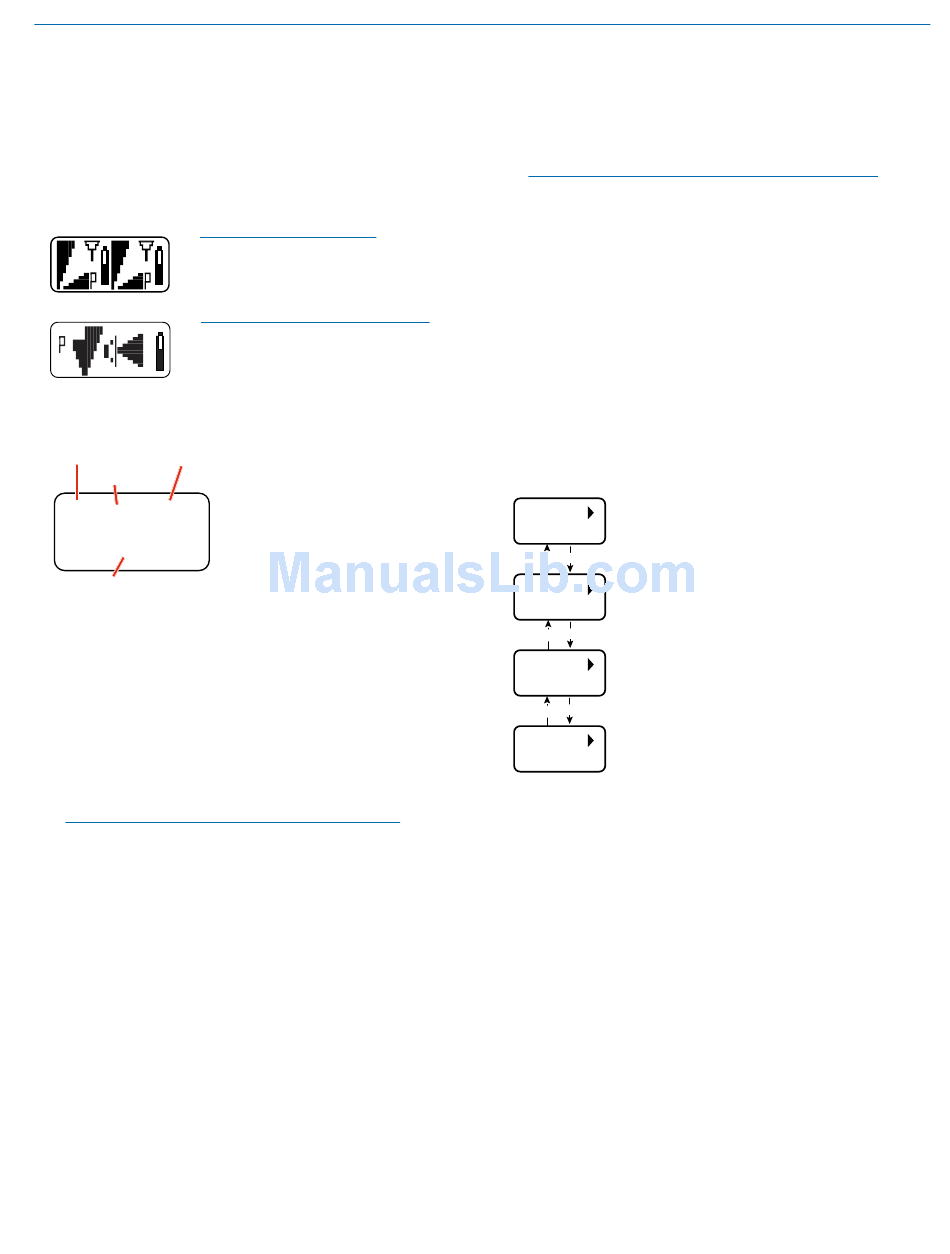

The appearance of the LCD Main Window will change
according to which diversity mode is selected:
• SWITCH (2-channel mode) splits the screen to
indicate activity and levels on both receivers and
transmitters.
• RATIO combines the audio outputs of both receiv-
ers to deliver a single audio channel.
With the DIV MODE set to
SWITCH, two audio channels will
be displayed.
With the DIV MODE set to RATIO,
a single audio channel will be
displayed.

Frequency Screen

Receiver Freq in
hex
Band
1 : 29
941
945 . 600
Freq in MHz
to 945.600 MHz. The frequency can also be set accord-
ing to the hex code, which is usually easier to remem-
ber. Lectrosonics transmitters with LCD interfaces allow
frequency to be set in MHz or hex settings.
Press the UP and DOWN buttons to change the fre-
quency of the receiver. When the tuning mode is set to
NORMAL, the UP and DOWN buttons tune in single
channel increments. In the group tuning modes, the UP
and DOWN buttons step through the frequencies stored
in the particular group. Refer to the menu items named
TUNING and GROUP TUNING MODES for details.
SHORTCUT: Hold the MENU/SEL button in while
pressing the UP or DOWN arrow to jump in 16 channel
increments (1.6 MHz steps).

Setup Screens

From the Main Window, press MENU/SEL three times
to enter the setup screens. Press UP and/or DOWN to
scroll through the available items and press MENU/SEL
to enter the desired screen. For those items that allow
separate settings for each receiver, press MENU/SEL
repeatedly to toggle back and forth between Receiver 1
and Receiver 2, then press the UP and DOWN buttons
to select the value or option. Press BACK one or more
times to store the setting and return to the previous
screen.
Rio Rancho, NM
Press MENU/SEL from the
Main Window once for Receiv-
er 1 and twice for Receiver 2.
The selected receiver is
shown in the upper left corner
of the LCD.
In this example, the screen
denotes that receiver 1 is set
Locking and Unlocking the
Front Panel Controls
The front panel controls can be LOCKED to prevent
accidental changes being made during operation and
handling.
Note: Whether locked or unlocked, the state persists
even when the unit is turned off.
From the Main Window, press and hold the UP and
DOWN arrows at the same time and observe the
display. The current state is displayed as LOCKED or
UNLOCKED, and numerals appear as a 3, 2, 1 or 1,
2, 3 countdown takes place. When the countdown is
complete the state is reversed and the new state is
displayed.

LCD Backlight Setup

With the power on, simultaneously press the UP but-
ton AND the POWER/BACK button. The unit will then
display the Backlight Options screen. Use the UP and
DOWN arrows to select the desired backlight operating
mode.
BKLIGHT
Remains on
ON
DOWN
UP
BKLIGHT
Dims after 30 seconds
30 SEC
DOWN
UP
BKLIGHT
Dims after 5 minutes
5 MIN
DOWN
UP
Backlight turns OFF
BKLIGHT
and Remains OFF
OFF

Battery Timer Reset

Navigate to TXBAT in the menus and select anything
other than AAT or 9VT. Then set it back to the timer
setting that matches the batteries you are using in the
transmitter. There is no need to exit the setup screen.
The timer will be reset when you select a non-timer
mode.
UHF Digital Hybrid Wireless
®
