SRc-941 Dual Receiver

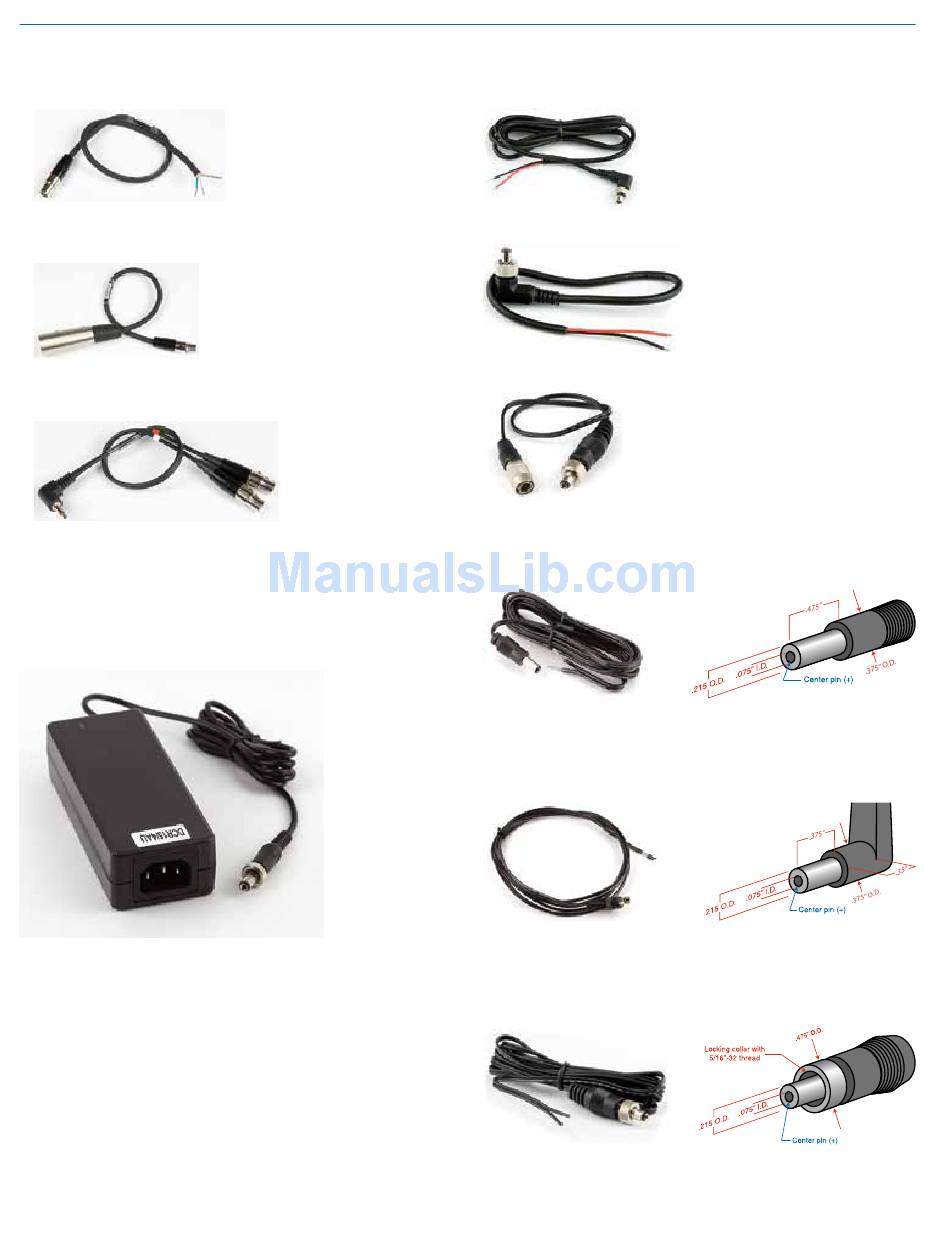

Audio Output Cables and Connectors

MCSRPT
MCSRXLR
MCSRTRS
External Power Supply
DCR15/4AU
Power supply with a standard C14 inlet and locking
LZR coaxial output connector; 100-240 VAC in, 15 VDC
regulated output; 4A max.
12
12 inch long TA3 female to
stripped and tinned wires
for balanced output.
PIN 1: Shield
PIN 2: Audio (+) white
PIN 3: Audio (-) green
12 inch long TA3 female to
XLR male 3-pin for balanced
output.
PIN 1: Shield
PIN 2: Audio (+)
PIN 3: Audio (-)
Male 3.5 mm TRS plug
to two female TA3 (mini
XLR) connectors for
dual channel use.

External Power Cables

21747
21746
PS200
21425
6 ft. long power cord; coaxial to stripped & tinned leads.
Coaxial plug: ID-.080"; OD-.218"; Depth- .5".
21472
6 ft. long power cord; coaxial to stripped & tinned leads.
Right angle coaxial plug: ID-.075"; OD-.218"; Depth-
.375"
21586
DC16A Pigtail power cable, LZR stripped & tinned.
Thread lock collar.
Locking LZR style plug
to stripped and tinned;
6 feet long.
Locking LZR style plug
to stripped and tinned;
12 inches long.
Hirose 7-4 pin to LZR
type locking plug, 12"
long.
