Summary of Contents for CYP PUV-2100RX-AVLC

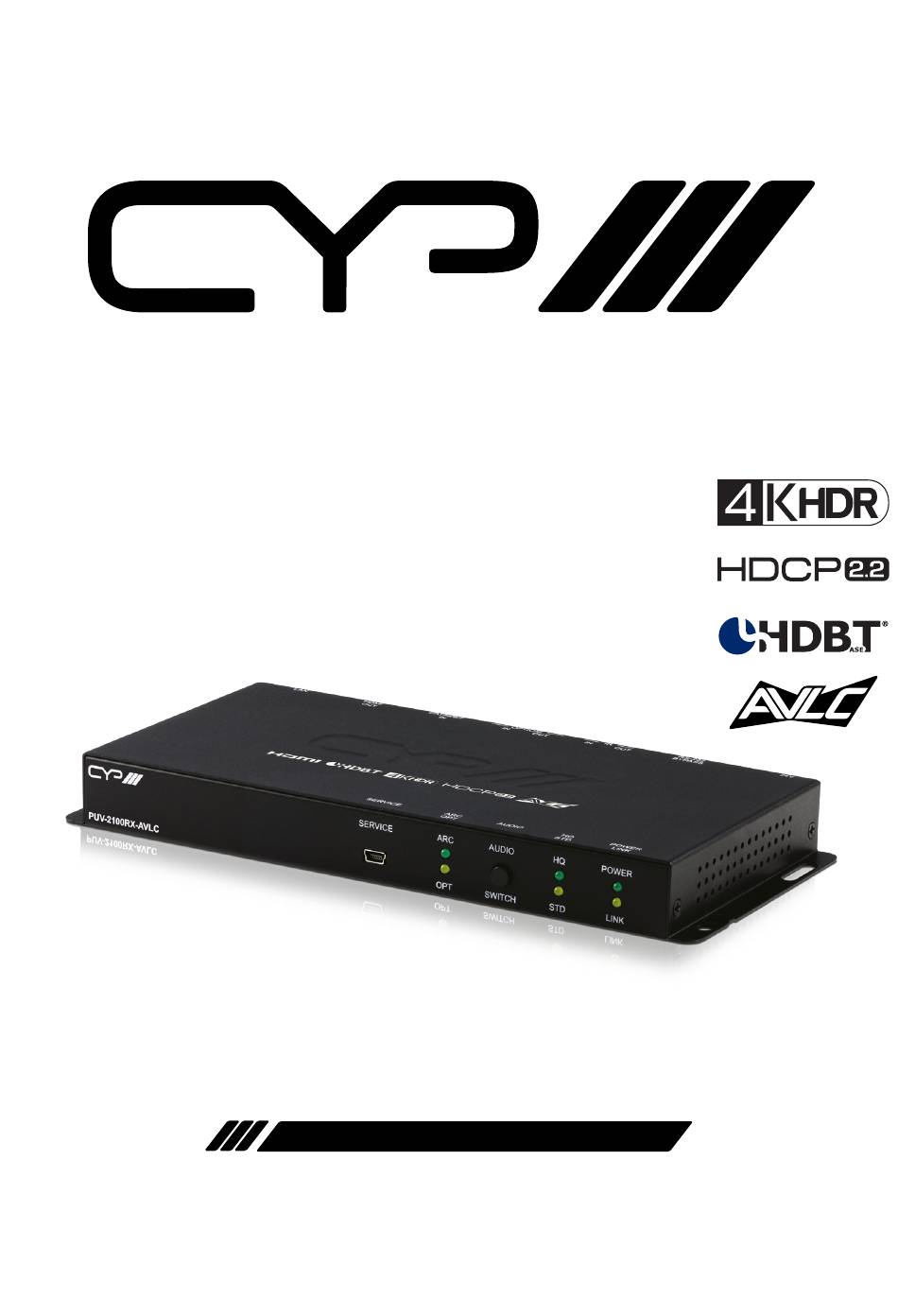

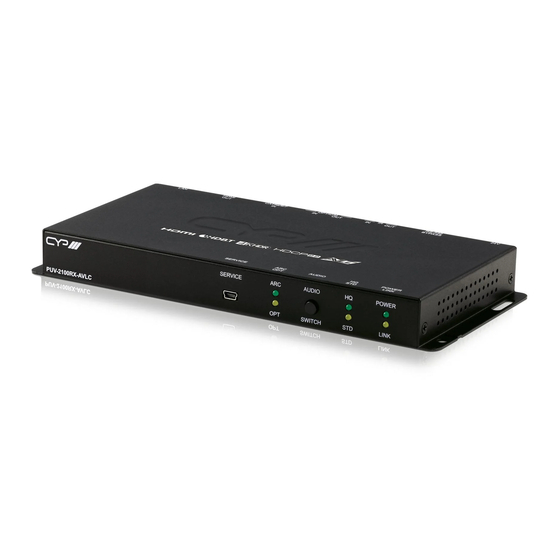

- Page 1 PUV-2100RX-AVLC HDBaseT™ 4K/HDR Receiver (100m) OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......7 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 6.3 IR Cable Pinouts ........10 6.4 RS-232 Bypass Pinout ......10 6.5 Serial Control (Via USB Port) ....10 6.6 Serial Commands (Via USB Port) ..11 7. -
Page 6: Introduction
1. INTRODUCTION This HDBaseT 2.0 Receiver provides for the reception of 4K video with HDR and high bitrate audio over a single Cat.6a/7 cable at distances of up to 100m (328 feet). This Receiver complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards. -
Page 7: System Requirements
4. SYSTEM REQUIREMENTS HDMI receiving equipment such as an HDTV, monitor or audio amplifier. A compatible HDBaseT Transmitter with 48V PoH (PSE) support is required. An HDBaseT 2.0 Transmitter equipped with AVLC support is strongly recommended. The use of “Premium High Speed HDMI” cables, and industry standard Cat.6, Cat.6a or Cat.7, is highly recommended. -
Page 8: Operation Controls And Functions
6.1 Front Panel SERVICE SERVICE AUDIO AUDIO POWER POWER PUV-2100RX-AVLC SWITCH SWITCH LINK LINK SERVICE Port: This port is reserved for firmware update and serial control use only. ARC & OPT LEDs: These LEDs illuminate to indicate the current digital audio source selected for sending to a compatible Transmitter’s... -
Page 9: Rear Panel
6.2 Rear Panel OPTICAL RS-232 CAT5e/6/7 IN HDMI OUT BYPASS RS-232 BYPASS Port: Connect to a PC, laptop or serial controllable device for the extension of RS-232 signals between both ends of the HDBaseT connection. IR OUT Port: Connect to an IR Blaster to transmit IR signals from the other end of the HDBaseT connection to devices within direct line-of- sight of the IR Blaster. -
Page 10: Ir Cable Pinouts
6.3 IR Cable Pinouts IR Blaster IR Extender Cable Cable Power Infrared Infrared Power Not Used Ground 6.4 RS-232 Bypass Pinout DE-9 Male Port 6.5 Serial Control (Via USB Port) Serial Port Default Settings Baud Rate 19200 Data Bits Parity Bit None Stop Bits Flow Control... -
Page 11: Serial Commands (Via Usb Port)
6.6 Serial Commands (Via USB Port) COMMAND Description and Parameters help Show the full command list. ? Show the full command list. get fw ver Show the unit's current firmware version. get model name Show the unit's model name. get model type ... -
Page 12: Connection Diagram
7. CONNECTION DIAGRAM Powered Speakers Media Player 1.5m HDMI & 60° S/PDIF Inputs RS-232 Equipped PC/Laptop 60° S/PDIF Output RS-232 Network Switch Power Supply OPTICAL RS-232 DC 24V CAT5e/6/7 OUT HDMI IN BYPASS Cat.5e/6/7 Cable OPTICAL RS-232 CAT5e/6/7 IN HDMI OUT BYPASS RS-232 RS-232 Controlled... -
Page 13: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 600MHz/18Gbps HDBaseT Bandwidth 340MHz/10.2Gbps Input Ports 1×HDBaseT (RJ-45) 1×S/PDIF (TOSLINK) Output Ports 1×HDMI 1×S/PDIF (TOSLINK) Pass-through Ports 1×IR Extender (3.5mm) 1×IR Blaster (3.5mm) 1×RS-232 (DE-9) 1×LAN (RJ-45) Service/Control Port 1×USB (Mini-B) IR Frequency 30 –... -
Page 14: Video Specifications
8.2 Video Specifications Input Output Supported Resolutions (Hz) HDBaseT HDMI 720×400@85 640×480@60/72/75/85 720×480i@60 720×480p@60 720×576i@50 720×576p@50 800×600@56/60/72/75/85 1280×720@50/60 1024×768@60/70/75/85 1280×768@60/75 1360×768@60 ... -
Page 15: Audio Specifications
Input Output Supported Resolutions (Hz) HDBaseT HDMI 2560×1600@60 (RB) 3840×2160@24/25/30 3840×2160@50/60 (4:2:0) 3840×2160@24/25/30, HDR10 AVLC 3840×2160@50/60 (4:2:0), HDR10 AVLC 3840×2160@50/60 (4:4:4) AVLC 4096×2160@24/25/30 4096×2160@50/60 (4:2:0) 4096×2160@24/25/30, HDR10 ... -
Page 16: Cable Specifications
S/PDIF Input/Output LPCM Max Channels 2 Channels Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 Bitstream Supported Formats Standard 8.4 Cable Specifications 1080p 4K30 4K60 (4:4:4) (4:4:4) Cable Length 8-bit 12-bit 8-bit 8-bit High Speed HDMI Cable HDMI Output Ethernet Cable Cat.5e/6 100m... -
Page 17: Hdbaset Features
8.5 HDBaseT Features HDBaseT Feature Set Video & Audio Supported IR Pass-through Supported RS-232 Pass-through Supported Accept power from Transmitter Supported Send power to Transmitter Unsupported LAN Pass-through Supported 9. ACRONYMS ACRONYM COMPLETE TERM Audio Return Channel Audio/Video AVLC Adaptive Visually Lossless Compression Cat.5e Enhanced Category 5 cable Cat.6... - Page 18 ACRONYM COMPLETE TERM Infrared Local Area Network Light-Emitting Diode LPCM Linear Pulse-Code Modulation Personal Computer Powered Device Power over HDBaseT Power Sourcing Equipment S/PDIF Sony/Philips Digital Interface Format Transmission Control Protocol Ultra-High-Definition UHD+ Ultra-High-Definition Plus UHDTV Ultra-High-Definition Television Universal Serial Bus...
- Page 20 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
