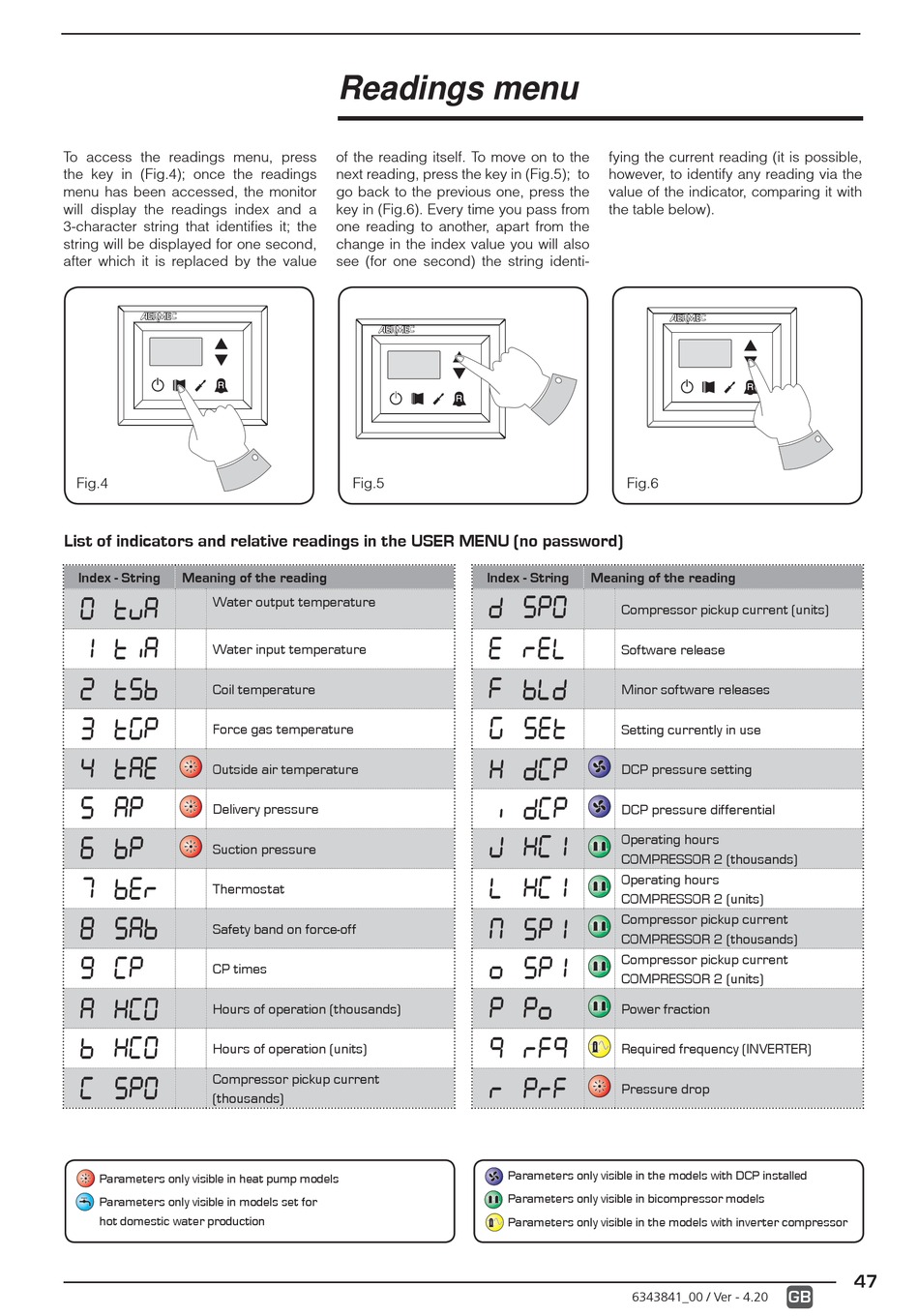

Readings Menu - AERMEC MODUCONTROL Usage Manual

To access the readings menu, press
the key in (Fig.4); once the readings
menu has been accessed, the monitor
will display the readings index and a
3-character string that identifi es it; the
string will be displayed for one second,
after which it is replaced by the value
R
Fig.4
List of indicators and relative readings in the USER MENU (no password)
Index - String Meaning of the reading
Water output temperature
Water input temperature
Coil temperature
Force gas temperature
j j
Outside air temperature
j j
Delivery pressure
j j
Suction pressure
Thermostat
Safety band on force-off
CP times
Hours of operation (thousands)
Hours of operation (units)
Compressor pickup current
(thousands)
j j
j Parameters only visible in heat pump models
Parameters only visible in models set for
hot domestic water production

Readings menu

of the reading itself. To move on to the
next reading, press the key in (Fig.5); to
go back to the previous one, press the
key in (Fig.6). Every time you pass from
one reading to another, apart from the
change in the index value you will also
see (for one second) the string identi-
R
Fig.5
Index - String
j j
j
Parameters only visible in the models with DCP installed
Parameters only visible in bicompressor models
Parameters only visible in the models with inverter compressor
fying the current reading (it is possible,
however, to identify any reading via the
value of the indicator, comparing it with
the table below).
R
Fig.6
Meaning of the reading
Compressor pickup current (units)
Software release
Minor software releases
Setting currently in use
j
DCP pressure setting
j
j
DCP pressure differential
j
Operating hours
COMPRESSOR 2 (thousands)
j
Operating hours
COMPRESSOR 2 (units)
j
Compressor pickup current
COMPRESSOR 2 (thousands)
j
Compressor pickup current
j
COMPRESSOR 2 (units)
Power fraction
Required frequency (INVERTER)
j j
Pressure drop
6343841_00 / Ver - 4.20
47
GB
