Varian Data 620/i System Reference Manual page 79

n
n+l
n
n+1
3-52

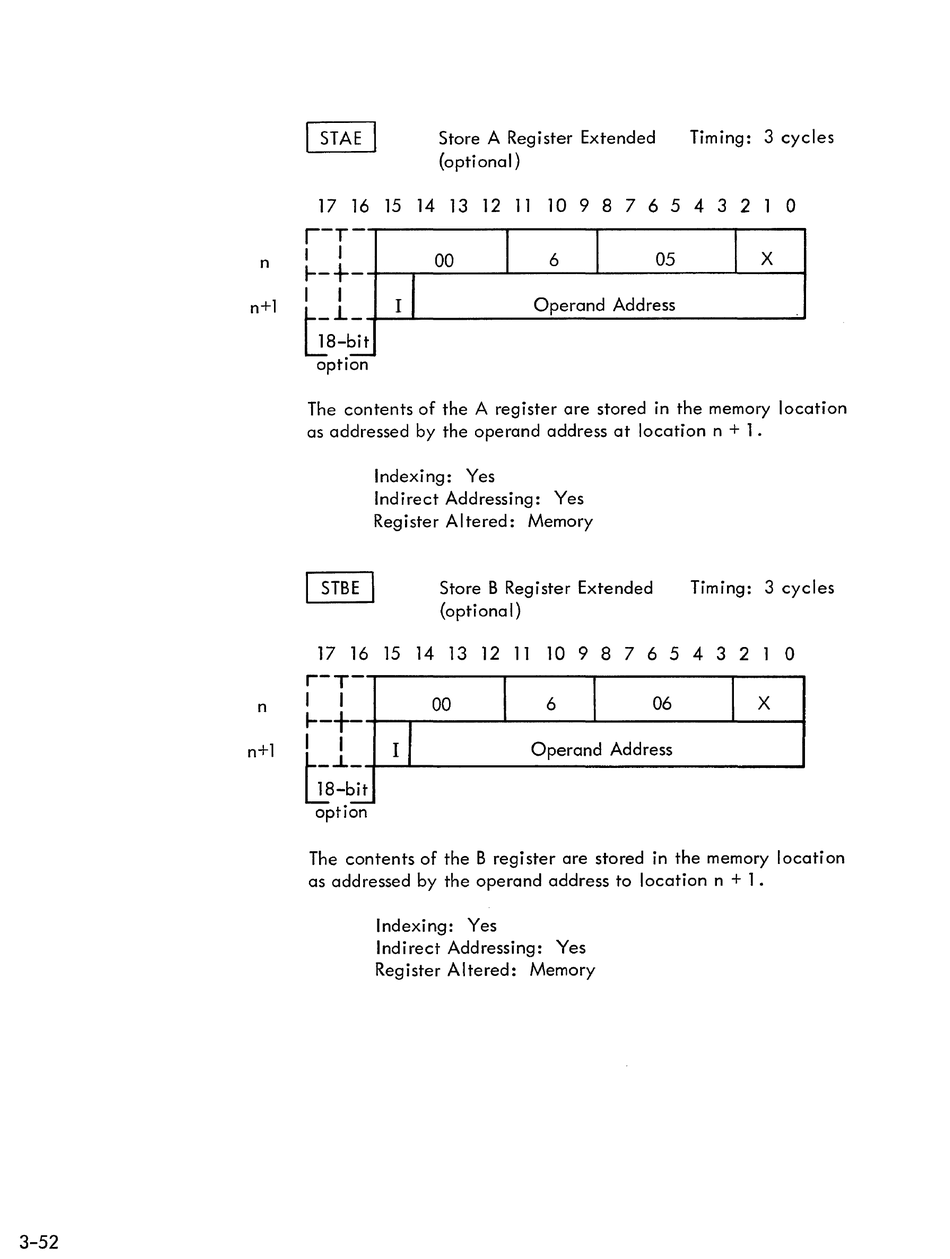

STAE
Store A Reg i ster Extended Timing: 3 cycles
(optional)
17 16 15 14 13 12 11 10
9
8 7 6 5 432 1 0
r-r-
I
I
00
05
X
~-+-
I I
I Operand Address
~L_
18-bit
option
The contents of the
A
register are stored in the memory location
as addressed by the operand address at location n + 1 .
STBE
Indexing: Yes
Indirect Addressing: Yes
Register Altered: Memory
Store B Register Extended
(optional)
Timing: 3 cycles
17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
r-T-
I I
00
06
X
~-+-~~----~----~------~--~
I I
~_..L_
~8-bit
option
I Operand Address
The contents of the B register are stored in the memory location
as addressed by the operand address to location n + 1 .
Indexing: Yes
Indirect Addressing: Yes
Register Altered: Memory
