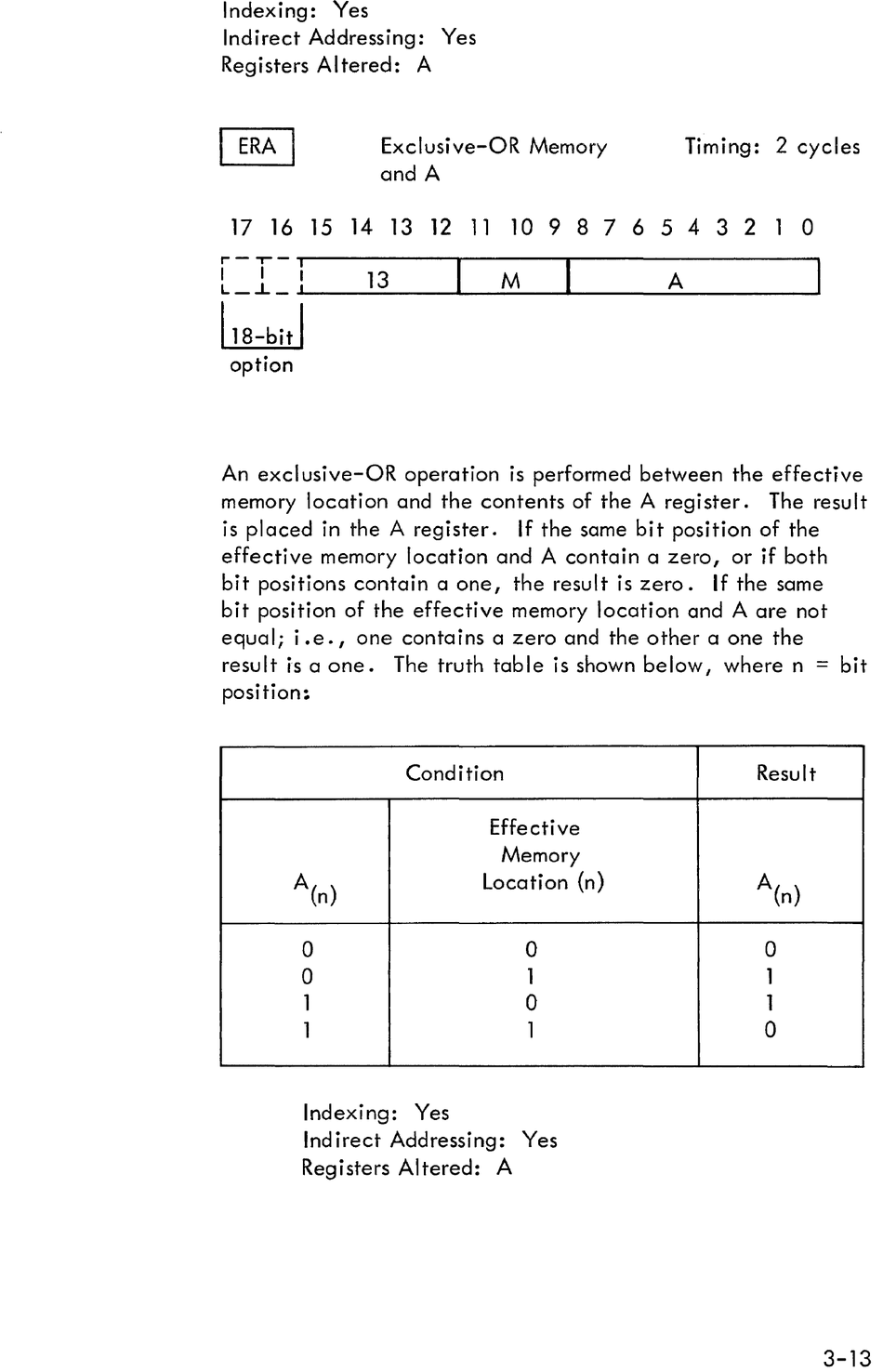

Varian Data 620/i System Reference Manual page 40

Indexing: Yes
Indirect Addressing: Yes
Registers Altered: A
Exclusive-OR Memory
and A
Timing: 2 cycles
17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
,-T-l
13 M A
L
_...L _
..1... _ _ _ _ _
- - I ' - - -_ _ _ ....L-. _ _ _
~
_ _ _ _
_ _ _ . I
lIB-bit
I
option
An exclusive-OR operation is performed between the effective
memory location and the contents of the A register. The result
is placed in the A register. If the same bit position of the
effective memory location and A contain a zero, or if both
bit positions contain a one, the result is zero. If the same
bit position of the effective memory location and A are not
equal; i.e., one contains a zero and the other a one the
result is a one. The truth table is shown below, where n
=
bit
position:
Condition
Effective
Memory
A(n)
Location (n)
0 0
0
1
1
0
1 1
Indexing: Yes
Indirect Addressing: Yes
Registers Altered: A
Result
A(n)
0
1
1
0
3-13
