vacon • 28
4. P
OWER CABLING
The mains cables are connected to terminals L1, L2 and L3 and the motor cables to terminals
marked with U, V and W. See principal connection diagram in Figure 17. See also Table 12 for the
cable recommendations for different EMC levels.
L1
L2
L3
Use cables with heat resistance in accordance with the application requirements. The cables and
the fuses must be dimensioned according to the AC drive nominal OUTPUT current which you can
find on the rating plate.
4
Keypad
Control unit
Power unit

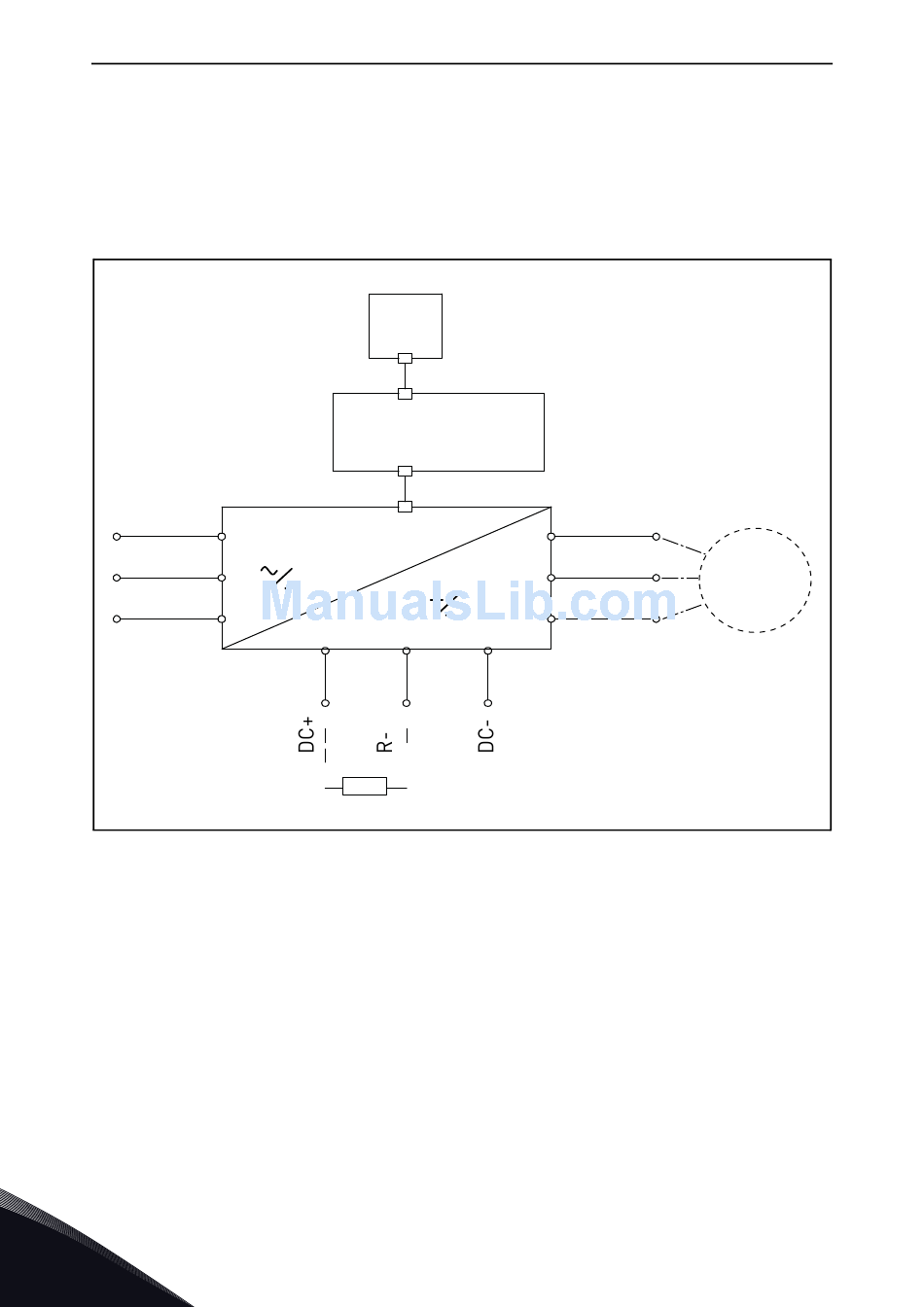

Figure 17. Principal connection diagram.
Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/

Power cabling

U/T1
V/T2
M
W/T3
