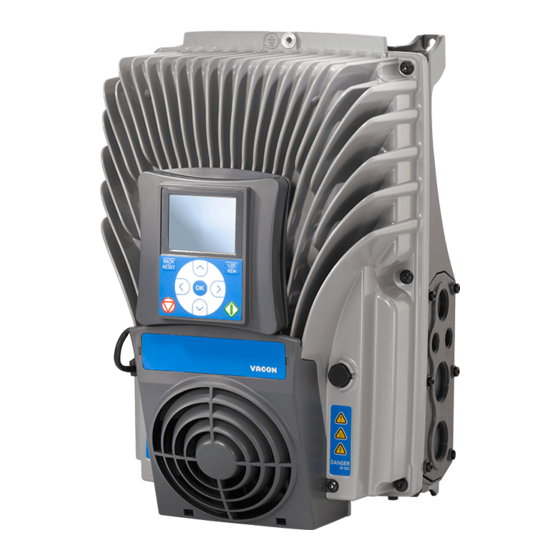

Vacon 100 X - Heater(arctic option)
1.
V
100 X - H
ACON
Document code: DPD01097B
1.1

Safety

This manual contains clearly marked cautions and warnings which are intended for your per-
sonal safety and to avoid any unintentional damage to the product or connected appliances.
Please read the information included in dangers carefully.
The optional heater allows the drive to operate in low temperature conditions down to -40°C.
This option is intended to be installed inside the drive.
Only Vacon authorized, trained and qualified personnel are allowed to install and maintain
this component.
1.2

Dangers

The components of the optional heater are live when the element is con-
nected to mains potential. Coming into contact with this voltage is extremely
dangerous and may cause death or severe injury.
The heater can be used only inside the drive and in combination with only the
Vacon 100X. Before connecting the heater to mains, make sure that the Vacon
100X drive is closed firmly.
Table 1. Dangers
1.3

Technical data

The optional heater has to be supplied with single-phase 230V. The thermal element is
always supplied and if the drive is connected at -40°C the drive will be heated up until the tem-
perature of -10°C is exceeded. The heating is temperature controlled and an internal fan en-
sures that the air is equally distributed inside the enclosure.
The integrated relay output (switching capacity: 24VDC / 3A, 250VAC / 3A) can be used to con-
trol the power-up of the drive. The contact is closed when the internal temperature is higher
than the minimum allowed value for the power-up (~ -10°C). This can be included and manage
in the logic of the entire system. A bi-color LED (on the enclosure of this option), shows the
status of the drive, ready or not-ready.
Heater connections
Terminal
L1
Line
N
Neutral
X1
Feedback relay output
Table 2. Technical information on input and relay terminals.
Service support: find your nearest Vacon service center at www.vacon.com
EATER
Signal
Supply voltage input terminals:
1AC 230V 50Hz
500 mA
Switching capacity:
24VDC / 3A
250VAC /3A
(
ARCTIC OPTION
Technical information
vacon • 1
)
