Vista VSBCC4V8 Instruction Manual

VSBCC4V8(Colour) VSBMC4V8(Monochrome)
Thank you for choosing this high quality camera, before attempting to connect or operate this product, please
read and follow these instructions

General

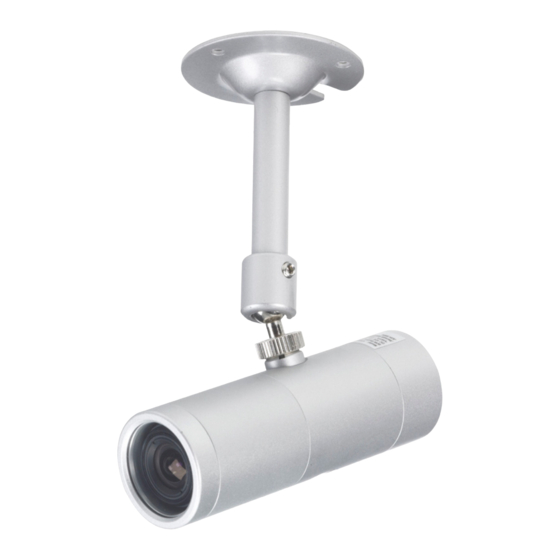

These CCD video colour camera employs a 1/3" Sony Super HAD CCD solid-state imaging device, which
provide high reliability. These bullet cameras can be easily installed in both internal and external locations
along with its very low current consumption of 120mA the camera is not only simple to install but achieves an
excellent reliability record.

Features

1. High quality picture.
2. Indoors or out-door use.
3. Long life and high reliability.

SPECIFICATION

Image sensor
Number of Pixel
Resolution
Min. Illumination
S/N Ratio
Electronic Shutter
White Balance
Video Output
Standard Board
Lens Angle
Power Source
Current
Operating Temp
Storage Temp
Dimension (mm)
Box Dims
Weight
Weight boxed
Mounting Bracket

INSTRUCTION MANUAL

VSBMC4V8
1/3"Monochrome CCD
500(H) x 582(V) <CCIR>
420TV lines
0.02Lux F2.0
More than 50dB
N/A
100mA
325g incl. bracket
378g
1/3" Colour Super HAD
500(H) x 582(V) <PAL>
1/50 to 1/100,000 sec.
1.0Vp-p composite, 75Ω
4V8mm / F2.0
Wide: 89.2°, Tele: 44.2°
DC12V+ 10%
-10°C ~ +50°C
-20°C ~ +60°C
37Ø x 110(H) mm
70(W) x 70(L) x 142(H)
40(W) x 75(H)
VSBCC4V8
380 TV lines
1.0Lux / F2.0
More than 46dB
Auto white balance
120mA
308g incl. bracket
361g
