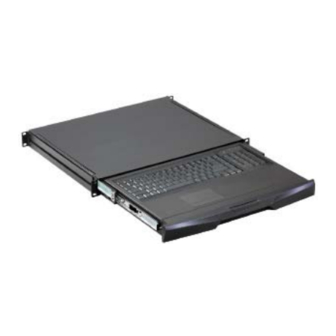

- Page 1 KVM switch and rackmount screen technology User Manual RK-2e / RK-2b 1U Short Depth Keyboard Drawer Designed and manufactured by Austin Hughes UM-CV-751-RK2e-Q215V1 www.austin-hughes.com...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > RK-2e / RK-2b Package Content Structure Diagram & Dimension P.1 - 2 Installation Connection Specifi cations < Part. 2 > Keyboard / Mouse Specifi cations P.5 - 7 Environmental Conditions UM-CV-751-RK2e-Q215V1 www.austin-hughes.com... -
Page 4: Package Content
If anything is missing, or damaged, contact the supplier immediately. < Part 1 > < 1.1 > Package Content RK-2e or RK-2b unit X 1 - EKC-3 6ft Combo keyboard mouse cable X 1 - Pair of L-bracket with fastener screws X 1 <... - Page 5 < 1.2 > Dimension RK-2e / b Front View UNIT : mm Side View 1mm = 0.03937 inch Top View Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight 439 x 369 x 44 mm 582 x 500 x 100 mm 7.4 kg...
- Page 6 < 1.3 > Installation- How to install L-bracket Step ■ Install left & right rear L-brackets with two fasteners shown above. ■ Leave the fasteners slightly loose. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear L-bracket to a suitable length and tighten the fasteners.
- Page 7 < 1.4 > Connection to PS/2 or USB Server RK-2e / b Keyboard drawer Keyboard drawer EKC-3 Combo EKC-3 Combo KB mouse cable KB mouse cable PS/2 server USB server < 1.4 > Connection to external KVM LCD console drawer...
-
Page 8: Keyboard / Mouse Specifi Cations
< Part 2 > < 2.1 > Standard Keyboard / Mouse Specifi cations G keyboard integrated with touchpad G keyboard integrated with trackball 55 ± 5g Key force 3 ± 0.3mm Travelling distance > 10 million life cycle time Switch life MS Windows 7 / 2008 / 2003 / 2000 / XP / ME / 98 / DOC Software support Linux / Mac... - Page 9 < 2.1 > MAC Keyboard / Mouse Options RK-2e / b MAC keyboard integrated with touchpad MAC keyboard integrated with trackball Supporting layouts America United States How to Use "MAC" Keyboard Keyboard Features Decrease display brightness Fast-forward Increase display brightness...
- Page 10 < 2.1 > SUN Keyboard / Mouse Options GS keyboard integrated with touchpad GS keyboard integrated with trackball Ca ps Scro ll Comp ose Ca ps Scro ll Comp ose GS keyboard integrated with touchpad / trackball ■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help ■...
-
Page 11: Environmental Conditions
< 2.2 > Environmental Conditions RK-2e / b Temperature 0 to 55°C degree Operating Humidity 20~90%, non-condensing Temperature -5 to 60°C degree Storage Humidity 5~90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random UM-CV-751-RK2e-Q215V1 www.austin-hughes.com... - Page 12 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2015 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-RK2e-Q215V1 www.austin-hughes.com...
