Vectron POS Modular

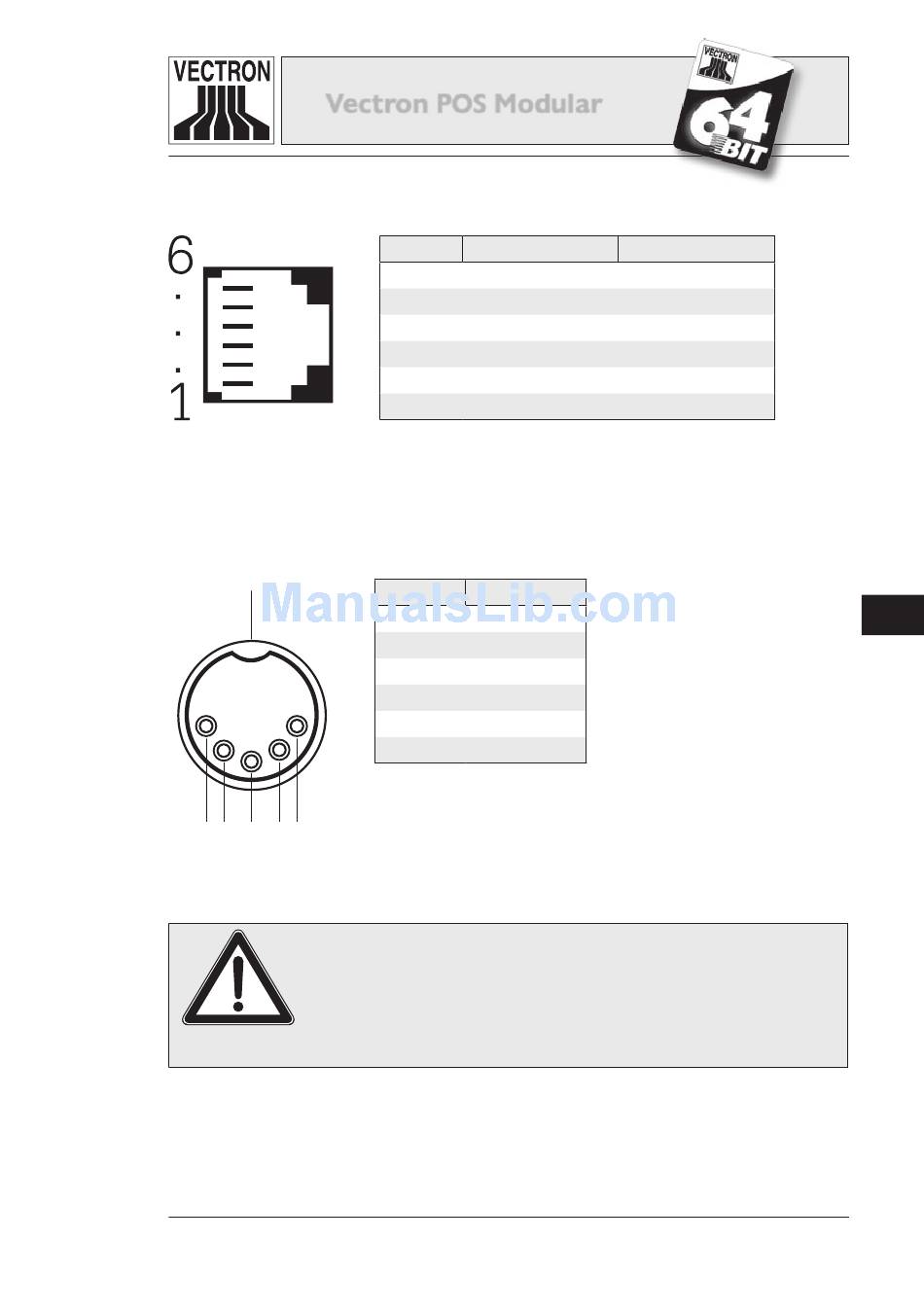

Drawer ports (RJ-11)
External power supply (DIN-socket)
Shell
3 5 2 4 1
For the power supply of the Vectron POS Modular
please use exclusively the supplied Vectron PS10.
Using a different power supply can damage or
Attention!
destroy the POS system.
PIN Assignment A
1 GND
2 Drawer 1
3 Open Sensor
4 + 24 V
5 Drawer 3
6 + 24 V
PIN Assignment
1 GND
2 GND
3 + 5 V / 4 A
4 GND
5 + 24 V / 0,6 A
Shell Frame GND
23
Assignment B
GND
Drawer 2
Open Sensor
+ 24 V
Drawer 4
+ 24 V
