Vectron POS Modular User Manual page 21

Vectron POS Modular

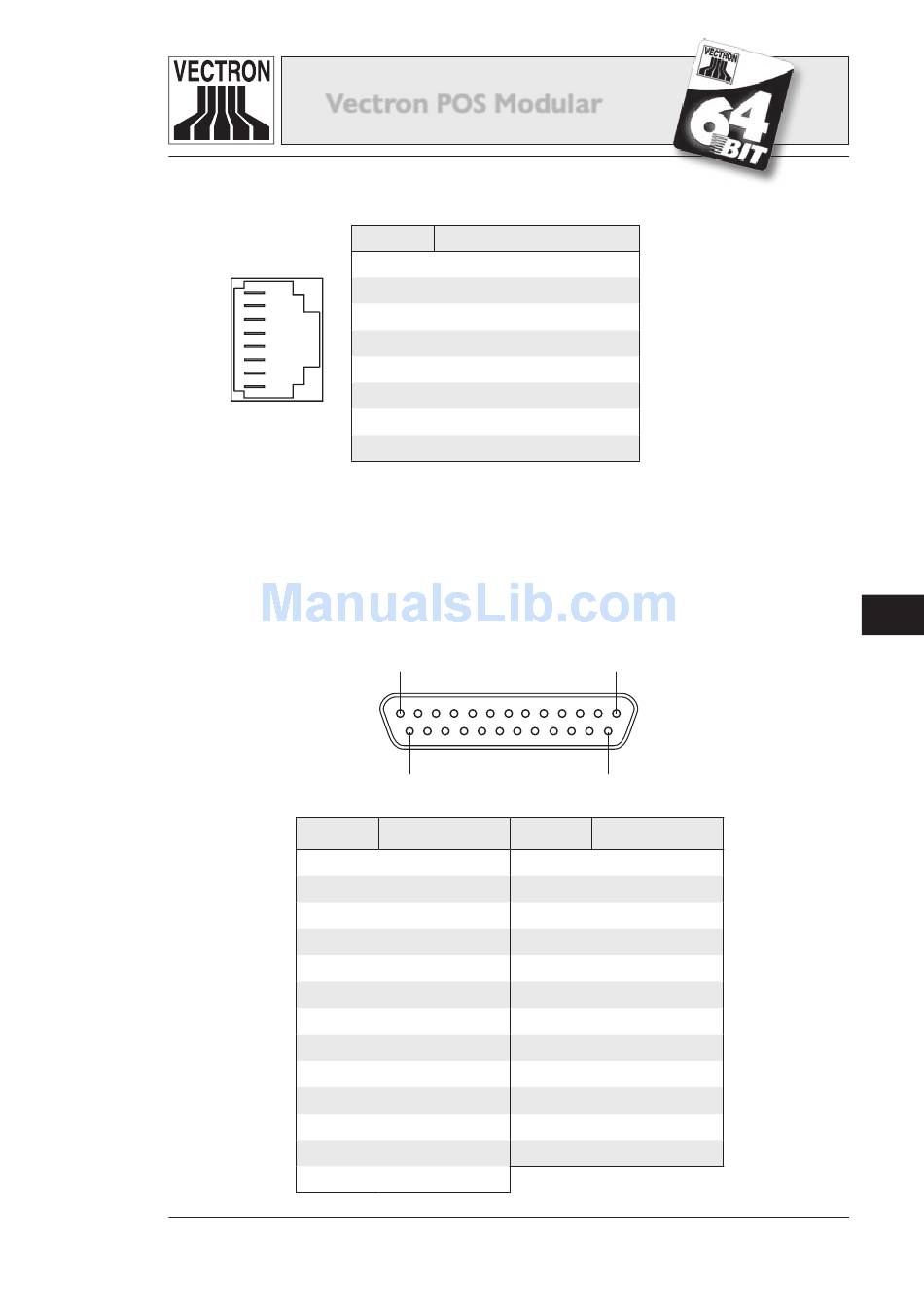

Serial ports (RJ-45)
8 .
.
.
1
Parallel printer port (Sub-D 25, f)
PIN
1
2
3
4
5
6
7
8
9
10
11
12
13
PIN Assignment
1 DSR (in)
2 RxD (in)
3 + 5 V (max. 500 mA)
4 TxD (out)
5 n/c
6 DTR (out)
7 + 24 V (max. 100 mA)*
8 GND
* This tension must be manually enabled per Jumper.
)
Please contact your Vectron Systems dealer.
13
25
Assignment
/Strobe
Data0
Data1
Data2
Data3
Data4
Data5
Data6
Data7
/Acknlg
/Busy
PE
Select
1
14
PIN Assignment
14 Auto Feed
15 Error
16 / Init
17 Select In
18 GND
19 GND
20 GND
21 GND
22 GND
23 GND
24 GND
25 GND
21
Modular
US
