6.4.2

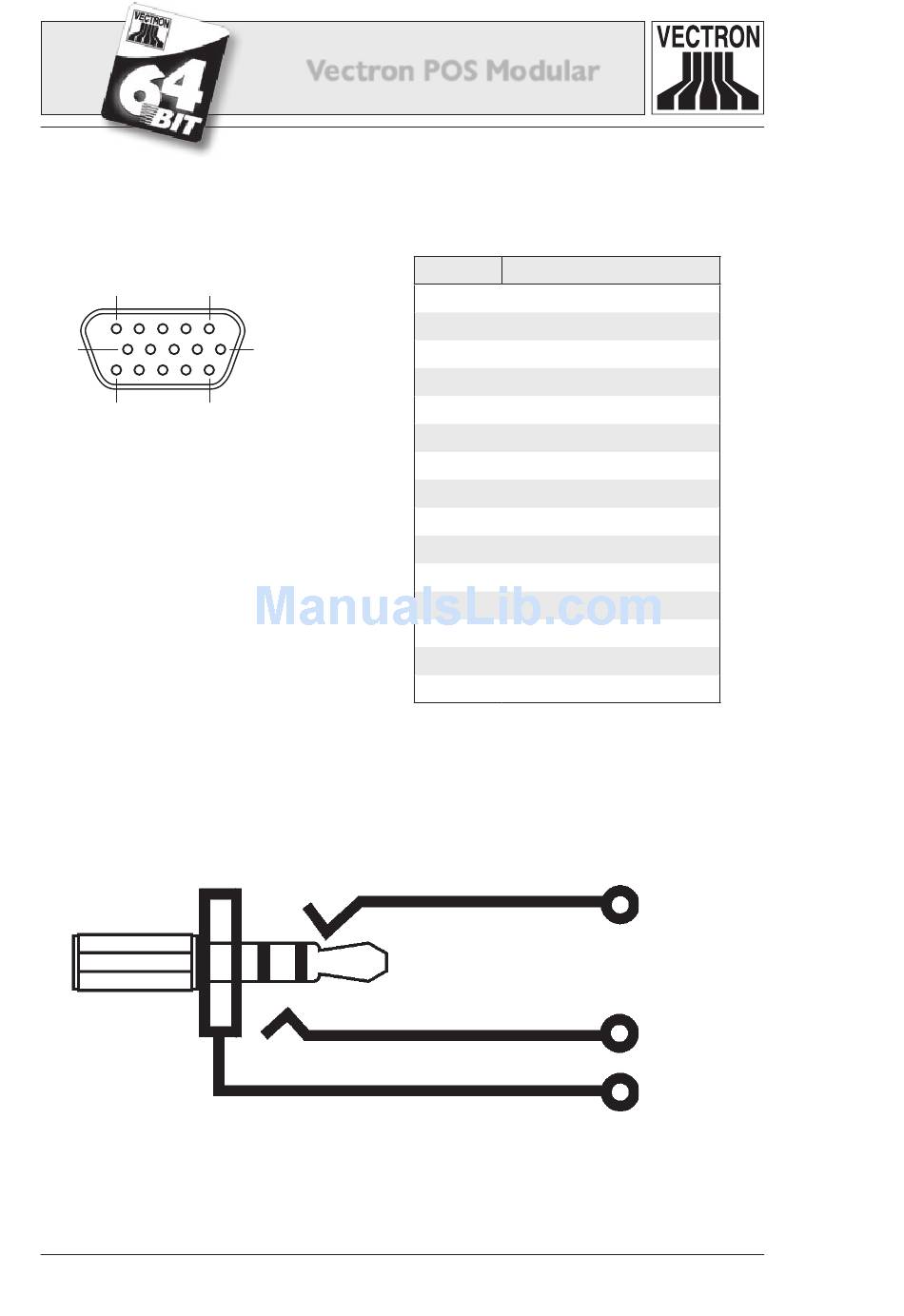

Pin assignments

VGA-port (HD 15, f)
5 1
10
15 11
Ports for ext. operator locks
(3,5 mm jack plug, three pin, f)
Vectron POS Modular
6
PIN Assignment
1 RED
2 GREEN
3 BLUE
4 n/c
5 GND
6 RED_RTN
7 GREEN_RTN
8 BLUE_RTN
9 n/c
10 GND
11 n/c
12 SDA
13 HSYNC
14 VSYNC
15 SCL
+ 5V
Signal
GND
